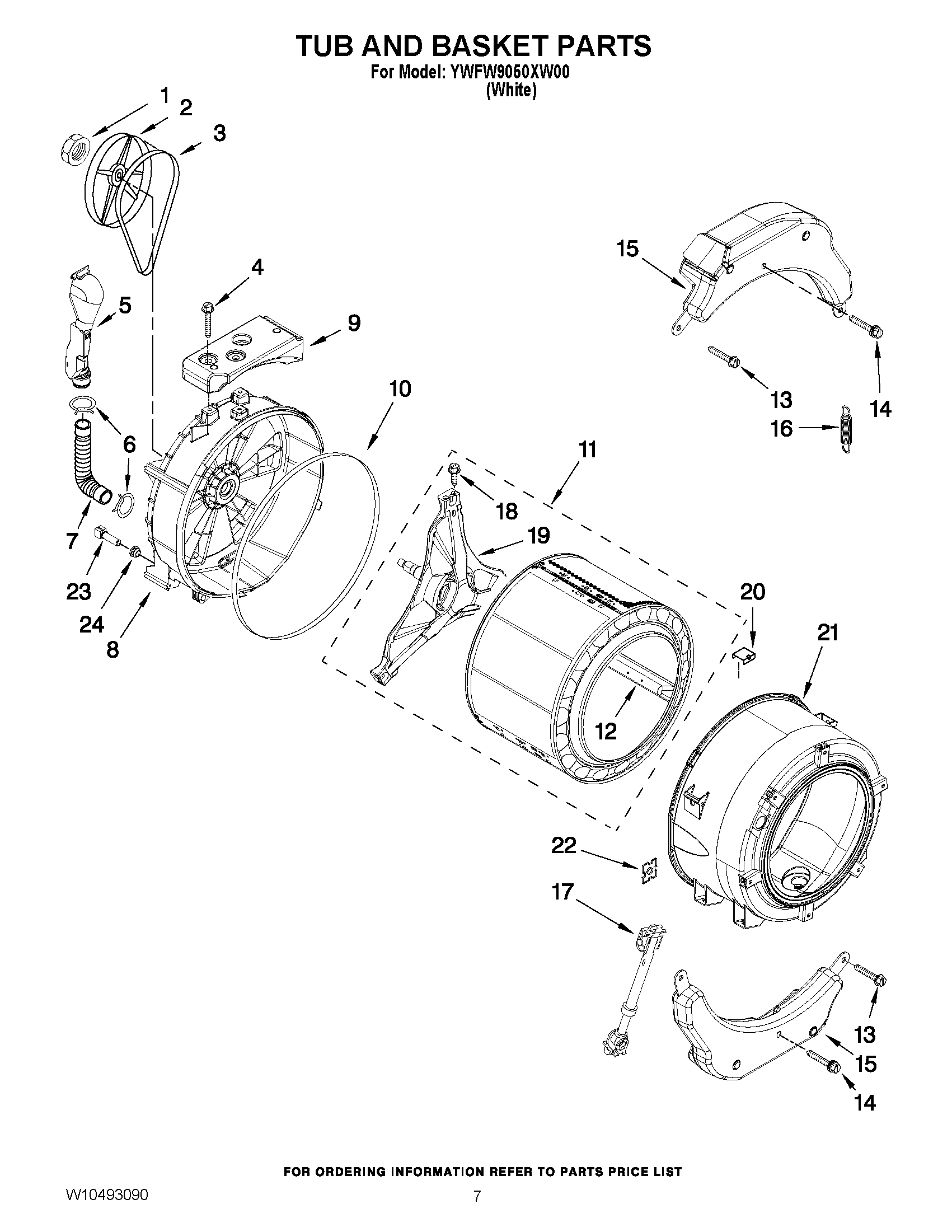

YWFW9050XW00 06 – TUB AND BASKET PARTS

Products

Position	Product
1	WPW10283361 Whirlpool Nut
2	WP8540088C Whirlpool Pulley
3	WP8540101 Whirlpool Washer Drive Belt
4	W11028021 Whirlpool Screw
5	W10142720 Whirlpool Vent Pipe
6	8540010 Whirlpool Clamp
7	W11398765 Whirlpool Hose
8	W11239040 Whirlpool Outer Tub
9	WPW10200747 Whirlpool Counterweight
10	WPW10111158 Whirlpool Gasket Assembly
11	WPW10202459 Whirlpool Basket
12	WP8540360 Whirlpool Baffle
13	W11685857 Whirlpool Screw Assembly
14	WPW10259288 Whirlpool Screw
15	WPW10223198 Whirlpool Counterweight
16	280159 Whirlpool Spring Assembly
17	W10822553 Whirlpool Washer Shock Absorber
18	WP8540382 Whirlpool Screw
19	CROSSPIECE ASSEMBLY
20	WP8540092 Whirlpool Clamp
21	W10313497 Whirlpool Outer Tub
22	WP8182512 Whirlpool Nut Assembly
23	WPW10467289 Whirlpool Sensor
24	W11590578 Whirlpool Seal
