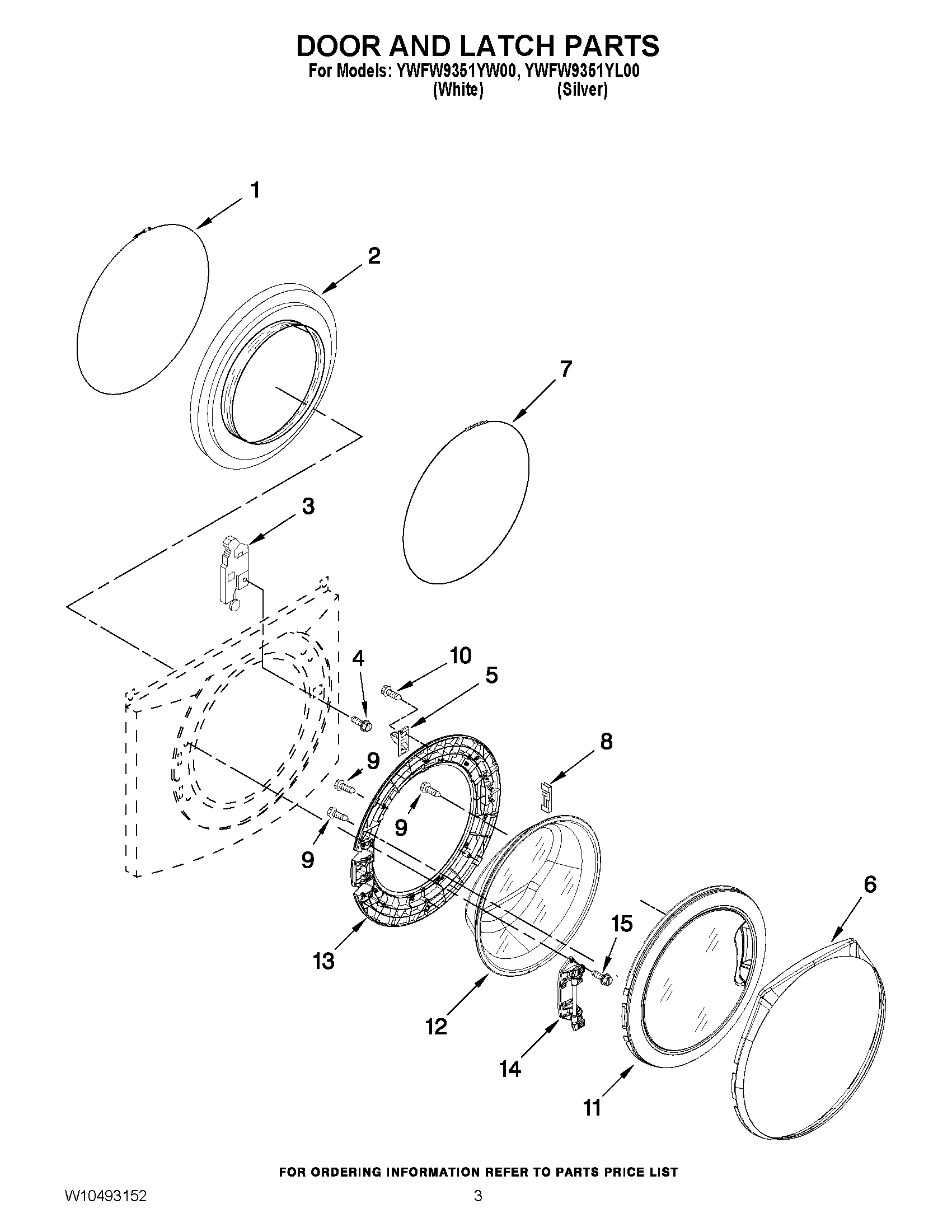

YWFW9351YW00 02 – DOOR AND LATCH PARTS

Products

Position	Product
1	WP8540108 Whirlpool Boot Spring Clamp
2	WPW10381562 Whirlpool Front Load Washer Door Boot
3	WPW10253483 Whirlpool Latch
4	WP8540725 Whirlpool Screw Assembly
5	WP8540221 Whirlpool Door Strike Assembly
6	TRIM RING, OUTER DOOR (SILVER)
6	TRIM RING, OUTER DOOR (WHITE)
7	W11032829 Whirlpool Clamp Assembly
8	WP8540115 Whirlpool Clamp
9	WP8540282 Whirlpool Screw
10	W11230114 Whirlpool Screw Assembly
11	FRAME, DOOR FRONT ASSEMBLY
12	WPW10388315 Whirlpool Glass Door
13	FRAME, DOOR BACK SUPPORT
14	HINGE, DOOR
15	WP489442 Whirlpool Refrigerator Screw
