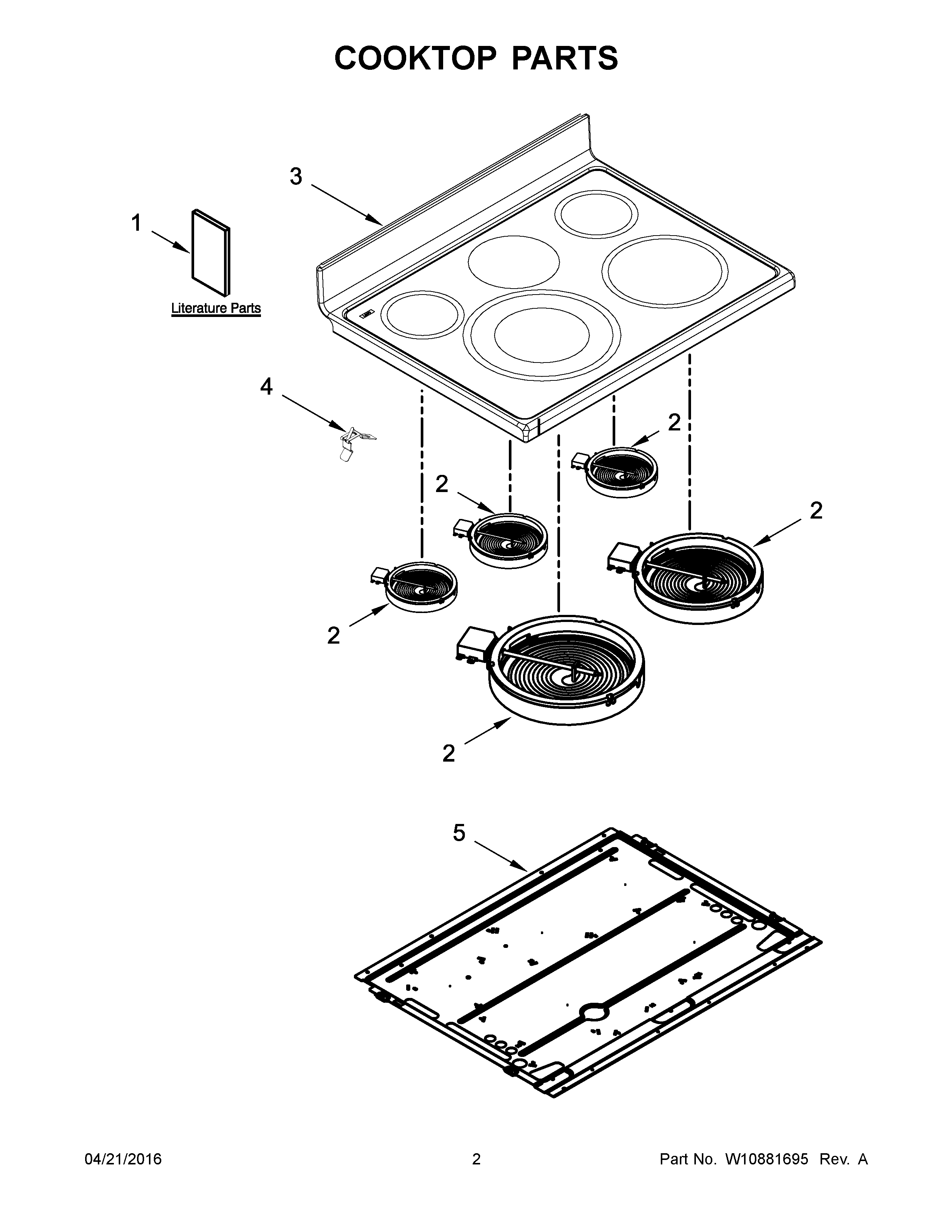

YWGE745C0FH0 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11217844 Whirlpool Wire Harness
NI	W11190451 Whirlpool Wire Harness
NI	W11172427 Whirlpool Wire Harness
NI	W11172531 Whirlpool Wire Harness
NI	W11157775 Whirlpool Wire Harness
NI	WIRING HARNESS PARTS, BLOCK, BARE WIRE ADAPTER
NI	WIRING HARNESS PARTS, CLIP, WIRE
NI	WIRING HARNESS PARTS, SCREW, GROUND
NI	WPL 8019P01360
NI	HARNESS, MAIN
1A	GUIDE, USE & CARE
1C	SAFER COOKING TIPS (ENGLISH
1	INSTRUCTIONS, INSTALLATION
1B	SHEET, TECH
1D	Safer Cooking Tips (French)
2C	ELMNT-SURF
2D	WP9762851 Whirlpool Surface Element
2A	WPW10342780 Whirlpool Surface Element
2	W11563195 Whirlpool Surface Element
2B	W11517959 Whirlpool Electric Range Radiant Surface Element
3A	W10877558 Whirlpool Cooktop
3	W10877560 Whirlpool Cooktop Assembly
4	WPW10225448 Whirlpool Spring Assembly
5	WPW10260946 Whirlpool Panel
