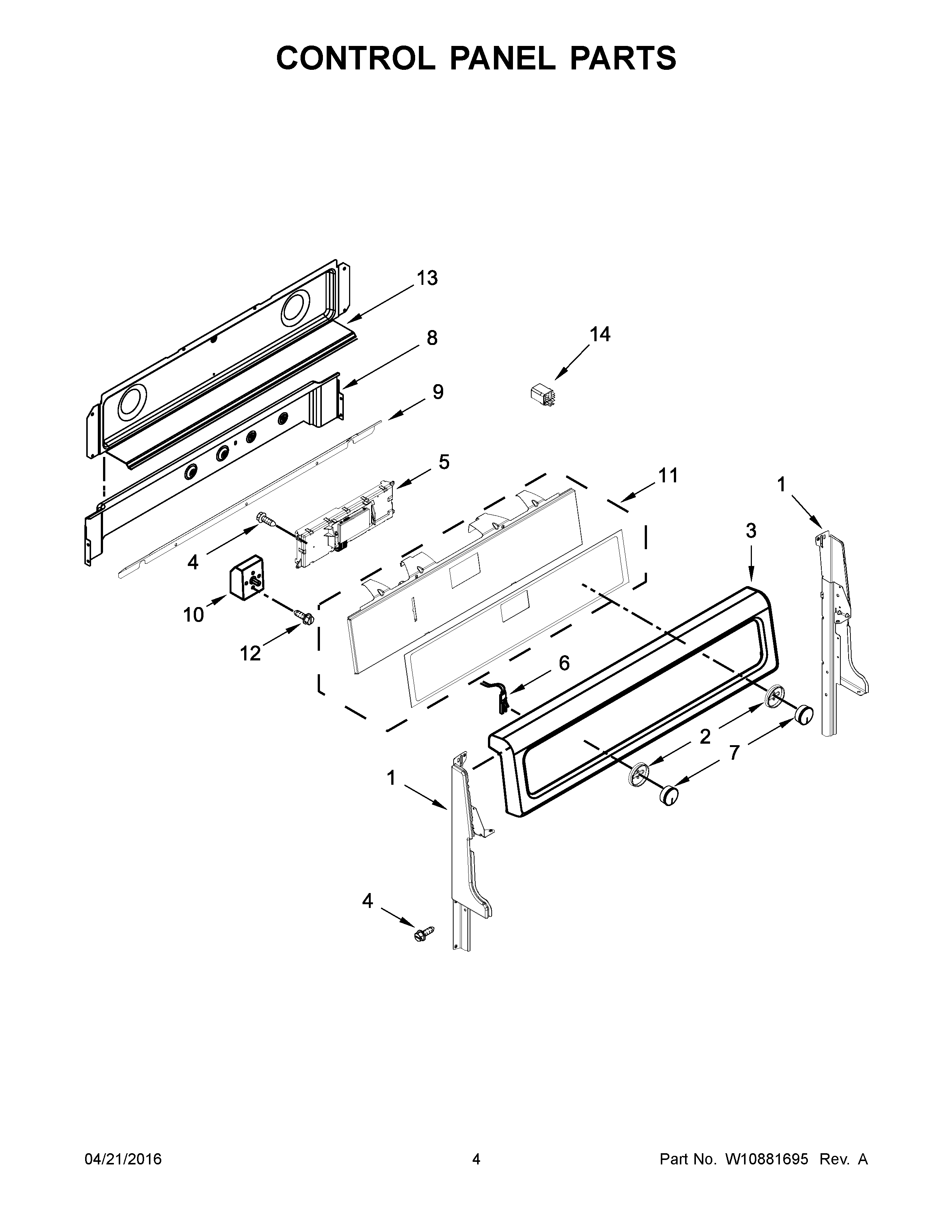

YWGE745C0FH0 03 – CONTROL PANEL PARTS

YWGE745C0FH0 03 – CONTROL PANEL PARTS

Written by

in

YWGE745C0FH0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AW10319112 Whirlpool Panel Endcap
1W10319110 Whirlpool Endcap Panel
1BW10319109 Whirlpool Endcap Panel
1CSUPPORT, BACK GUARD (RIGHT HAND)
2W10850042 Whirlpool Knob Bezel
3AWPW10318550 Whirlpool Control Panel
3WPW10318552 Whirlpool Control Panel
4SCREW
5W10877730 Whirlpool Electronic Control Board
6Light, Indicator
7W11517335 Whirlpool Knob Assembly
8W10278697 Whirlpool Vent Shield Assembly
10AW10917724 Whirlpool Infinite Switch
10W11129442 Whirlpool Surface Infinite Element Switch
10CSWITCH, INFINITE (RIGHT REAR)
10BWPW10312185 Whirlpool Infinite Switch
11AW10877769 Whirlpool Membrane Switch
11W10877767 Whirlpool Membrane Switch
12WPL 7101P30960
13W10776098 Whirlpool Rear Cover
14RELAY (12V)
