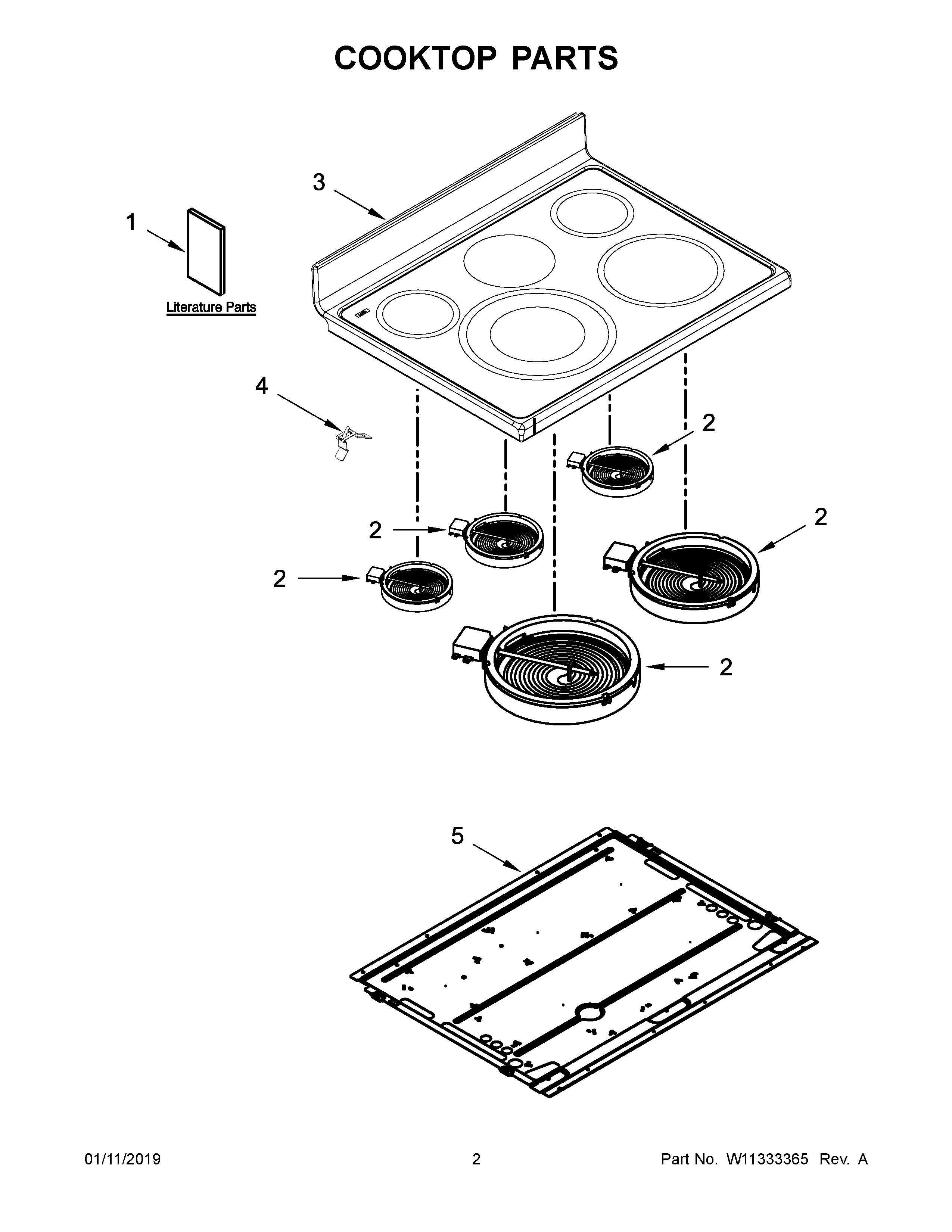

YWGE745C0FH1 02 – COOKTOP PARTS

YWGE745C0FH1 02 – COOKTOP PARTS

Written by

in

YWGE745C0FH1 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11217844 Whirlpool Wire Harness
NIW11190451 Whirlpool Wire Harness
NIW11172428 Whirlpool Wire Harness
NIW11172427 Whirlpool Wire Harness
NIW11172531 Whirlpool Wire Harness
NIHARNESS, MAIN
NIWIRING HARNESS PARTS, BLOCK, BARE WIRE ADAPTER
NIWIRING HARNESS PARTS, CLIP, WIRE
NIWIRING HARNESS PARTS, SCREW, GROUND
NIWPL 8019P01360
1BSHEET, TECH
1INSTRUCTIONS, INSTALLATION
1DDIAGRAM, WIRING
1CSAFER COOKING TIPS (ENGLISH
1AGUIDE, USE & CARE
2CELMNT-SURF
2W11563195 Whirlpool Surface Element
2DW11041453 Whirlpool Surface Element
2AWPW10342780 Whirlpool Surface Element
2BW11517959 Whirlpool Electric Range Radiant Surface Element
3AW10877558 Whirlpool Cooktop
3W10877560 Whirlpool Cooktop Assembly
4WPW10225448 Whirlpool Spring Assembly
5WPW10260946 Whirlpool Panel
