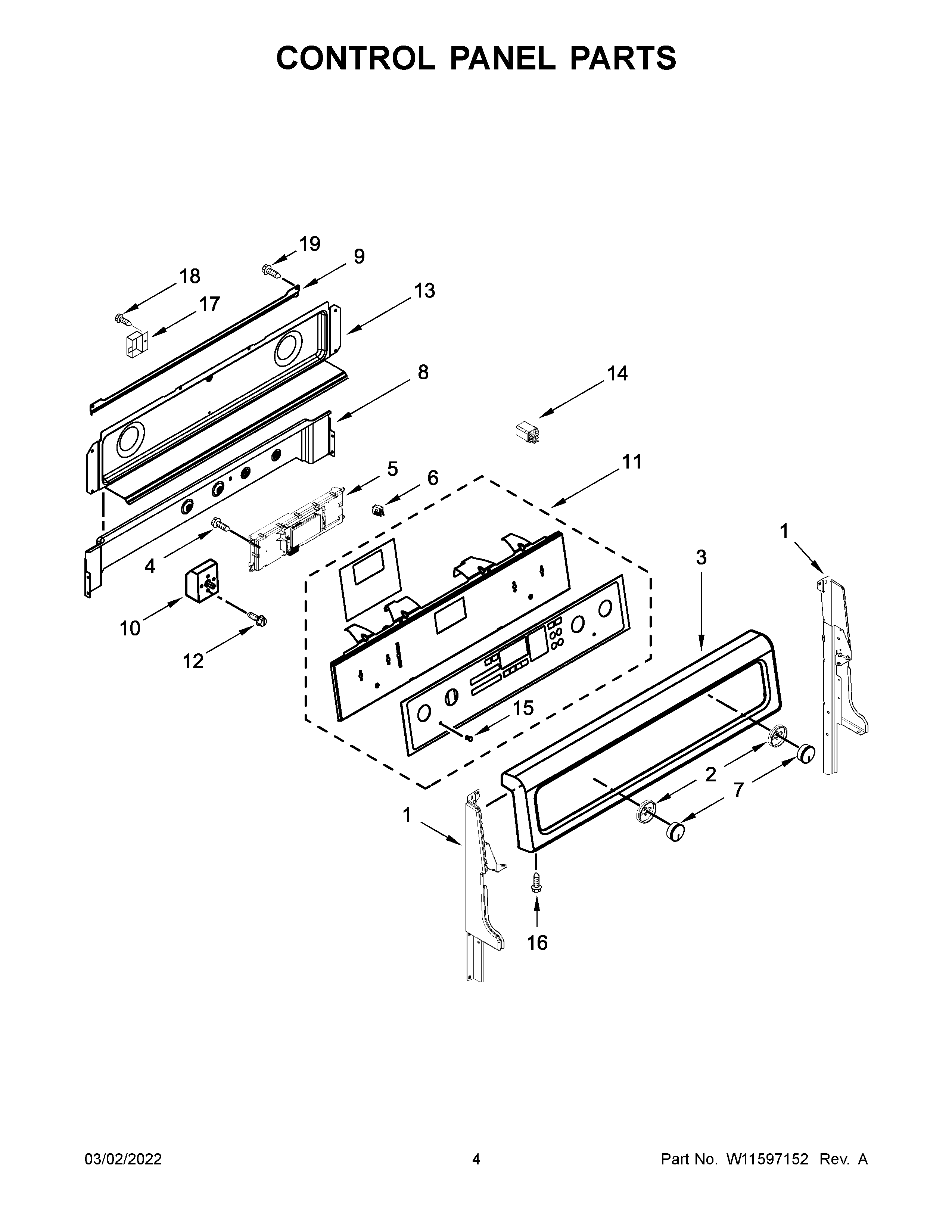

YWGE745C0FS5 03 – CONTROL PANEL PARTS

Products

Position	Product
1	W10319109 Whirlpool Endcap Panel
1A	SUPPORT, BACK GUARD (RIGHT HAND)
2	W10850042 Whirlpool Knob Bezel
3	WPW10318550 Whirlpool Control Panel
4	SCREW
5	W11594156-includeCORE Whirlpool W11594156 Washer Electronic Control Board + Core
6	Light, Indicator
7	W11517335 Whirlpool Knob Assembly
8	W10278697 Whirlpool Vent Shield Assembly
10C	SWITCH, INFINITE (RIGHT REAR)
10B	WPW10312185 Whirlpool Infinite Switch
10	W11129442 Whirlpool Surface Infinite Element Switch
10A	W10917724 Whirlpool Infinite Switch
11	W11594155 Whirlpool Membrane Switch
12	W10674068 Whirlpool Screw
13	W10776098 Whirlpool Rear Cover
14	RELAY (12V)
15	WP3196068 Whirlpool Light Lens
16	SCREW (BLACK)
17	8285593 Whirlpool Oven Wire Cover
18	SCREW
19	SCREW
