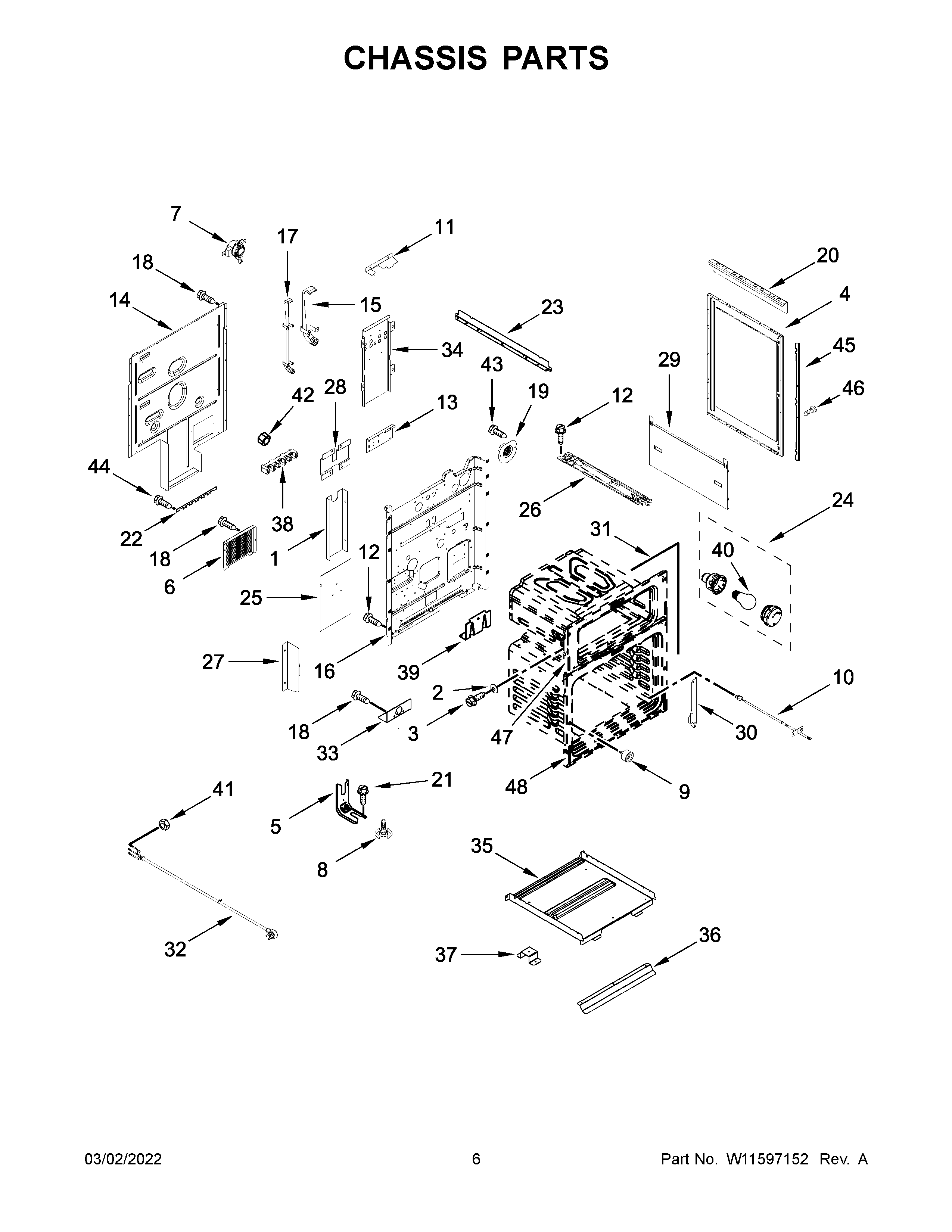

YWGE745C0FS5 04 – CHASSIS PARTS

Products

Position	Product
NI	WPW10204079 Whirlpool Insulation
NI	INSULATION, WRAPPER
NI	CABINET (NOT A SERVICEABLE PART)
NI	WPW10322111 Whirlpool Insulation
NI	INSULATION, HIDDEN BAKE POUCH
NI	W11685361 Whirlpool Insulation
NI	WPW10271637 Whirlpool Insulation
1	W10332459 Whirlpool Heat Shield
2	W11594028 Whirlpool Spacer Panel
3	SCREW
4	W11594130 Whirlpool Side Panel
5	BRACKET, ANTI TIP
6	W10312612 Whirlpool Black Cover
7	SWITCH, HIGH LIMIT
8	FOOT, LEVELER
9	W10105790 Whirlpool Bumper
10	SENSOR, OVEN
11	W10268559 Whirlpool Cover Wire
12	SCREW
13	W10332449 Whirlpool Heat Shield
14	WPW10261386 Whirlpool Wire Cover
15	W10337391 Whirlpool Vent Tube
16	W10668730 Whirlpool Rear Cover
17	WPW10323793 Whirlpool Vent Tube
18	SCREW
19	W10322408 Whirlpool Extension Tube
20	W10319087 Whirlpool Support Bracket
21	SCREW, ANTI-TIP KIT
22	SHIELD, POWER CORD
23	W10357697 Whirlpool Spacer Panel
24	W11594027 Whirlpool Range Oven Light Socket
25	W10311987 Whirlpool Heat Shield
26	W11166856 Whirlpool Door Latch
27	W10268560 Whirlpool Wire Cover
28	INSULATOR,HEAT SHIELD
29	SHIELD-SIDE INSULATION
30A	W10410461 Whirlpool Cover
30	W10410463 Whirlpool Cover Assembly
31	GASKET, OVEN DOOR (UPPER)
31A	W11594140 Whirlpool Door Gasket
32	W11226497 Whirlpool Power Cord
33	W10190166 Whirlpool Service Bracket
34	W10261388 Whirlpool Mounting Bracket
35	W10548601 Whirlpool Heat Shield
36	W10253470 Whirlpool Retainer Assembly
37	W10260545 Whirlpool Support Bracket
38	WP8203546 Whirlpool Terminal Block
39	SUPPORT, LOWER OVEN
40	BULB, LIGHT
41	Nut
42	WP3400029 Whirlpool Dishwasher Nut
43	W10850807 Whirlpool Screw
44	WP488488 Whirlpool Refrigerator Screw
45	BRACKET, RUBBER BARRIER
46	SCREW (BLACK)
47	FRONT, MAIN (UPPER)
48	FRONT, MAIN (LOWER)
