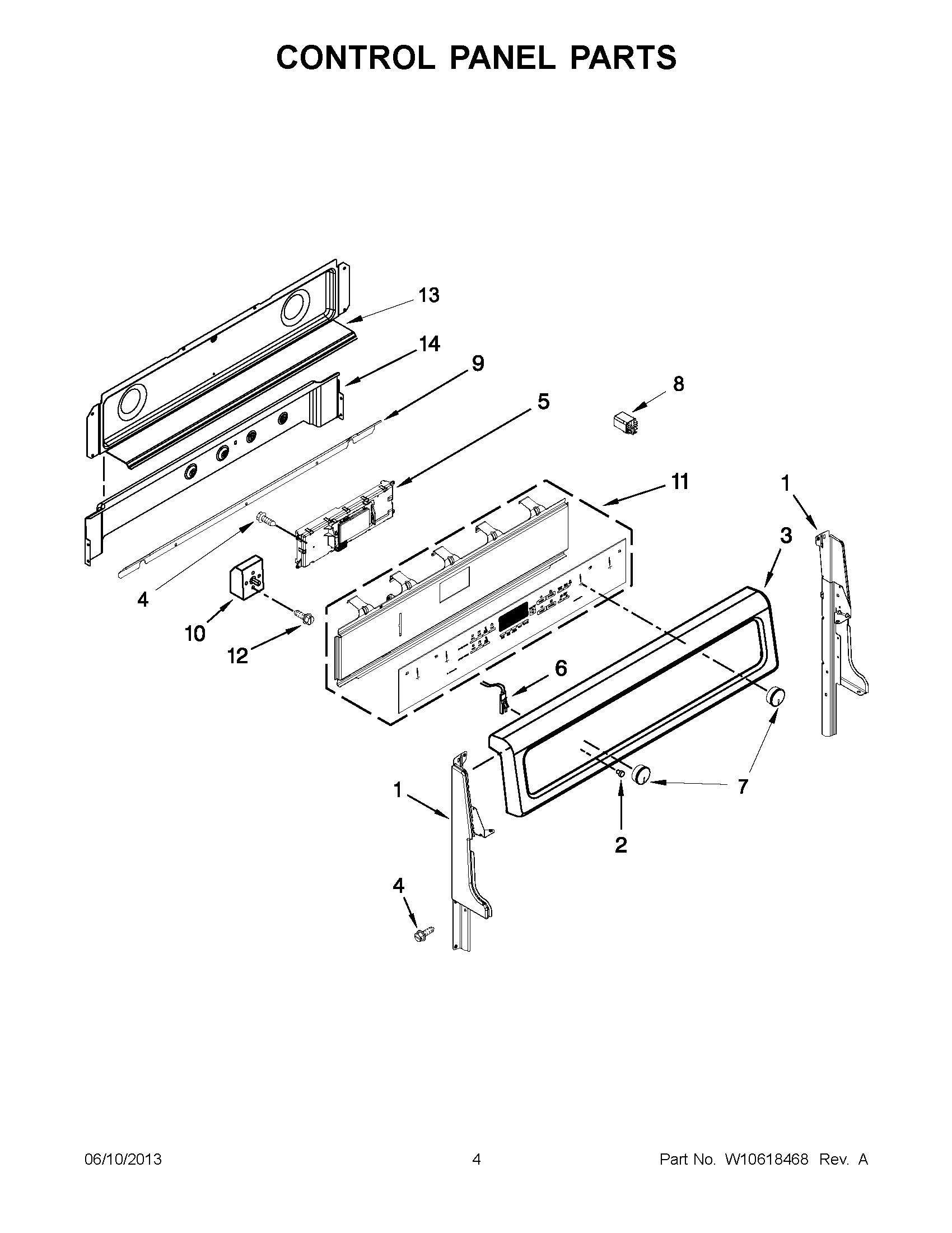

YWGE755C0BH0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W10319109 Whirlpool Endcap Panel
1	SUPPORT, BACK GUARD (RIGHT HAND)
1	W10319112 Whirlpool Panel Endcap
1	W10319110 Whirlpool Endcap Panel
2	WP3196068 Whirlpool Light Lens
3	WPW10318552 Whirlpool Control Panel
3	WPW10318550 Whirlpool Control Panel
4	SCREW
5	WPW10539961-includeCORE Whirlpool WPW10539961 Gas Range Electronic Control Board
6	Light, Indicator
7	WPW10437088 Whirlpool Burner Knob
8	RELAY (12V)
10	SWITCH, INFINITE (RIGHT REAR)
10	WPW10441696 Infinite Switch (Right) Front)
10	WPW10295048 Whirlpool Range Switch, Infinite (Left Rear)
11	W10528783 Whirlpool Membrane Switch
11	W10528784 Whirlpool Membrane Switch
12	WPL 7101P30960
13	W10296773 Whirlpool Rear Cover
14	W10278697 Whirlpool Vent Shield Assembly
