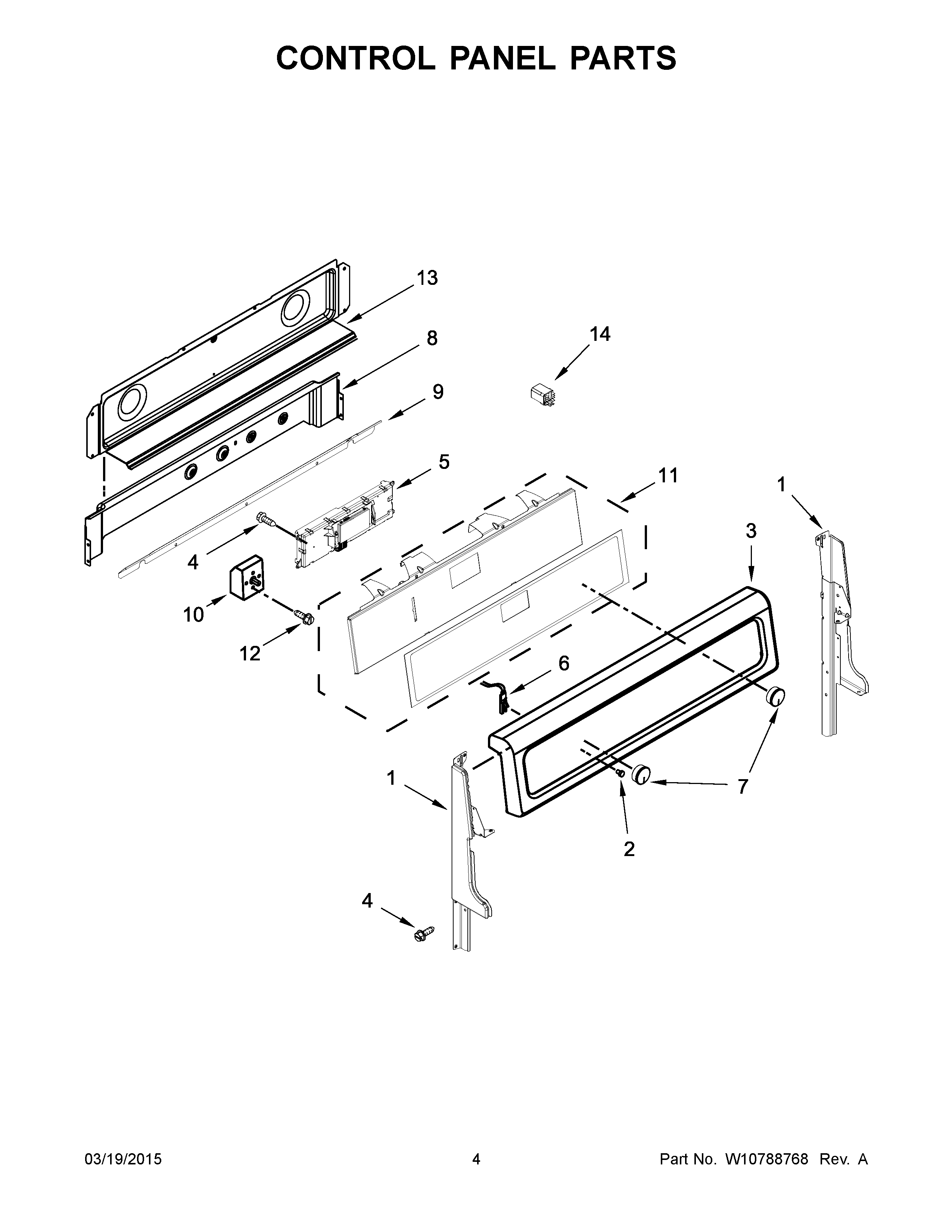

YWGE755C0BH1 03 – CONTROL PANEL PARTS

Products

Position	Product
1A	W10319109 Whirlpool Endcap Panel
1C	SUPPORT, BACK GUARD (RIGHT HAND)
1	W10319110 Whirlpool Endcap Panel
1B	W10319112 Whirlpool Panel Endcap
2	WP3196068 Whirlpool Light Lens
3	WPW10318552 Whirlpool Control Panel
3A	WPW10318550 Whirlpool Control Panel
4	SCREW
5	WPW10778301-includeCORE Whirlpool WPW10778301 Refrigerator Electronic Control Board + Core
6	Light, Indicator
7	WPW10437088 Whirlpool Burner Knob
8	W10278697 Whirlpool Vent Shield Assembly
10B	SWITCH, INFINITE (RIGHT REAR)
10A	WPW10295048 Whirlpool Range Switch, Infinite (Left Rear)
10	SWITCH, INFINITE (LEFT FRONT & RIGHT FRONT)
11A	W10528783 Whirlpool Membrane Switch
11	W10528784 Whirlpool Membrane Switch
12	WPL 7101P30960
13	W10776098 Whirlpool Rear Cover
14	RELAY (12V)
