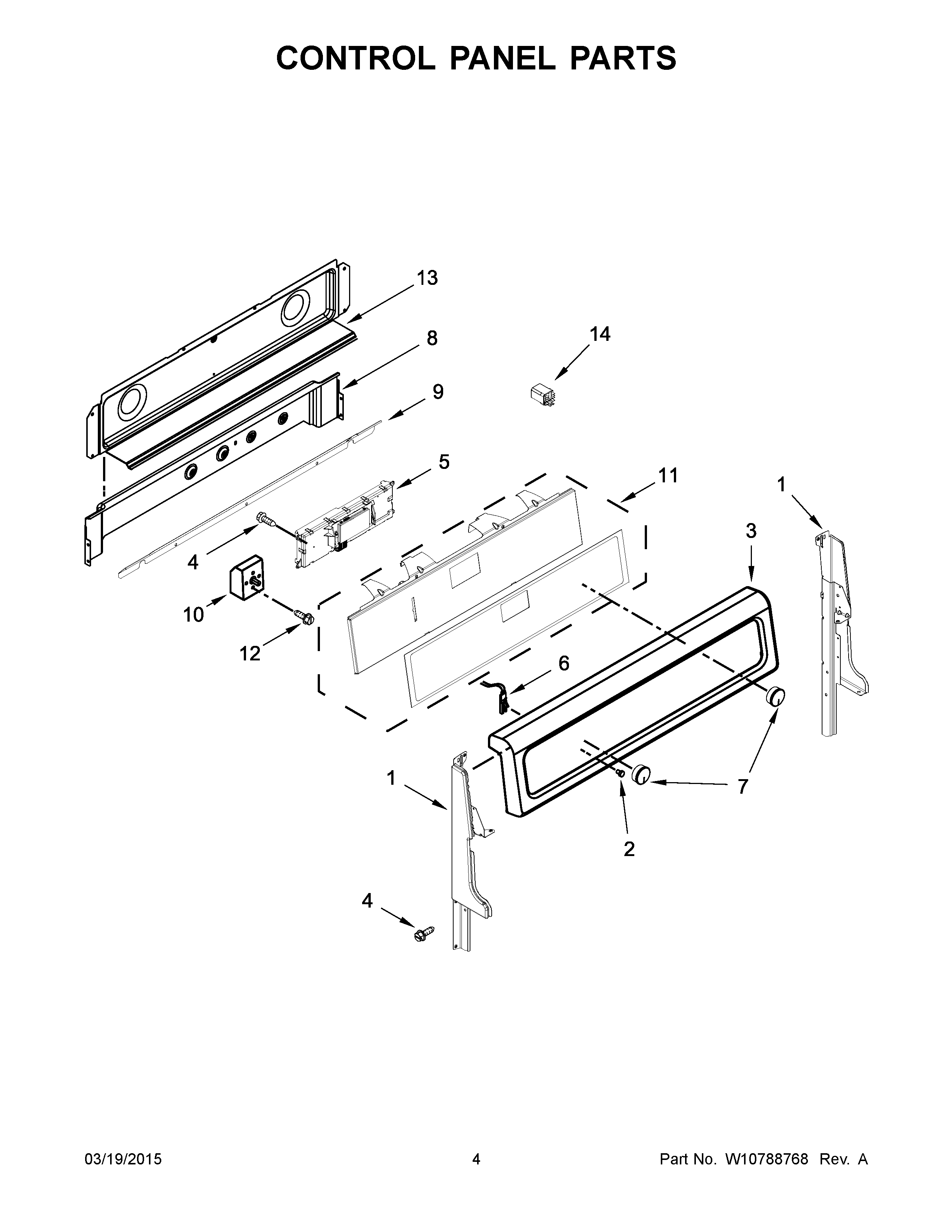

YWGE755C0BS1 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AW10319109 Whirlpool Endcap Panel
1CSUPPORT, BACK GUARD (RIGHT HAND)
1W10319110 Whirlpool Endcap Panel
1BW10319112 Whirlpool Panel Endcap
2WP3196068 Whirlpool Light Lens
3WPW10318552 Whirlpool Control Panel
3AWPW10318550 Whirlpool Control Panel
4SCREW
5WPW10778301-includeCORE Whirlpool WPW10778301 Refrigerator Electronic Control Board + Core
6Light, Indicator
7WPW10437088 Whirlpool Burner Knob
8W10278697 Whirlpool Vent Shield Assembly
10BSWITCH, INFINITE (RIGHT REAR)
10AWPW10295048 Whirlpool Range Switch, Infinite (Left Rear)
10SWITCH, INFINITE (LEFT FRONT & RIGHT FRONT)
11AW10528783 Whirlpool Membrane Switch
11W10528784 Whirlpool Membrane Switch
12WPL 7101P30960
13W10776098 Whirlpool Rear Cover
14RELAY (12V)
