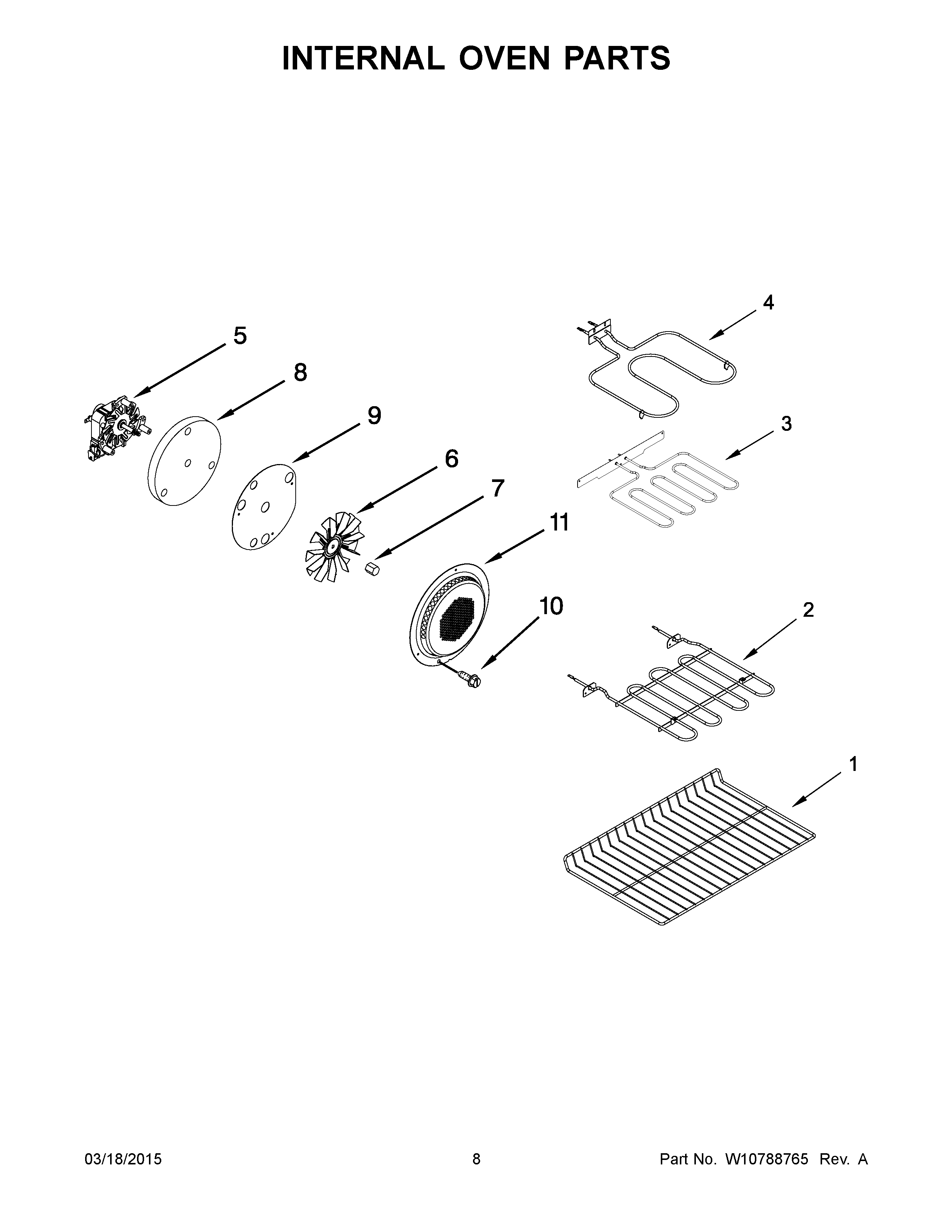

YWGI925C0BS1 05 – INTERNAL OVEN PARTS

YWGI925C0BS1 05 – INTERNAL OVEN PARTS

Written by

in

YWGI925C0BS1 05 – INTERNAL OVEN PARTS

Products

PositionProduct
1WPW10179152 Whirlpool Rack Oven
2WPW10611615 Whirlpool Broil Element
3W11662148 Whirlpool Bake Element
4W11716849 Whirlpool Broil Element
5W11235883 Whirlpool Fan Motor
6W10819914 Whirlpool Convection Fan
7W10794042 Whirlpool Nut
8W10274268 Whirlpool Insulation
9W10339476 Whirlpool Bracket Mounting
10WP4449154 Whirlpool Screw
11WPW10160821 Whirlpool Fan Cover
