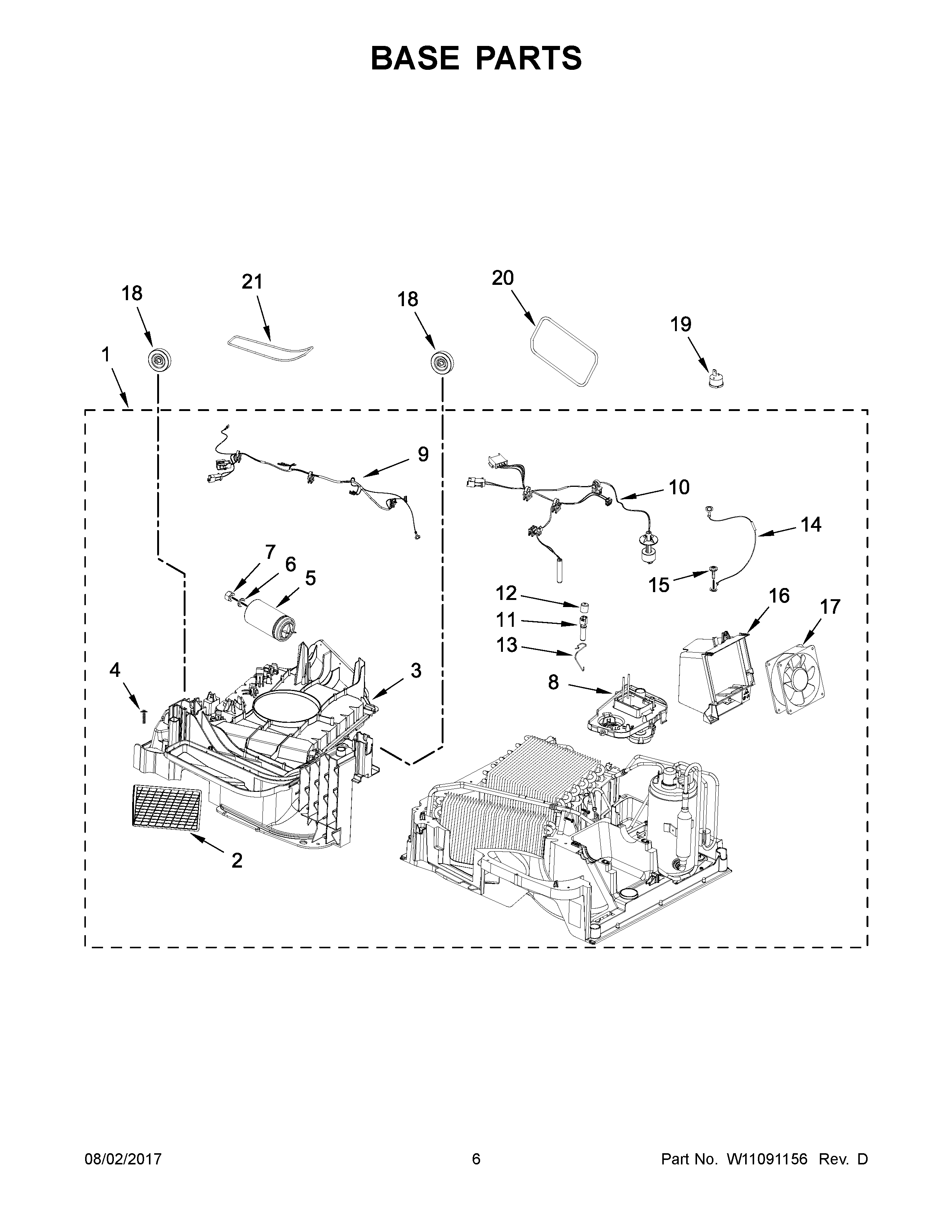

YWHD3090GW0 04 – BASE PARTS

YWHD3090GW0 04 – BASE PARTS

Written by

in

YWHD3090GW0 04 – BASE PARTS

Products

PositionProduct
1W11095574 Whirlpool Base
2W10717367 Whirlpool Filter
3W10749921 Whirlpool Cover
4W10306501 Whirlpool Screw
5W10888251 Whirlpool Capacitor
6WASHER, LOCK
7NUT
8W11086537 Whirlpool Pump
9W10861575 Whirlpool Wire Harness
10W10863066 Whirlpool Wire Harness
11W11676452 Whirlpool Sensor
12W10354746 Whirlpool Cap
13W10374142 Whirlpool Spring
14HARNESS, HEAT PUMP (GROUND)
15251926500053 Whirlpool Screw
16HOUSING, FAN
17W11097203 Whirlpool Fan
18W10456115 Whirlpool Support
20461970110101 Whirlpool Seal
21461970110181 Whirlpool Seal Assembly
