YWHD3090GW0 06 – DRUM AND BULKHEAD PARTS

YWHD3090GW0 06 – DRUM AND BULKHEAD PARTS

Written by

in

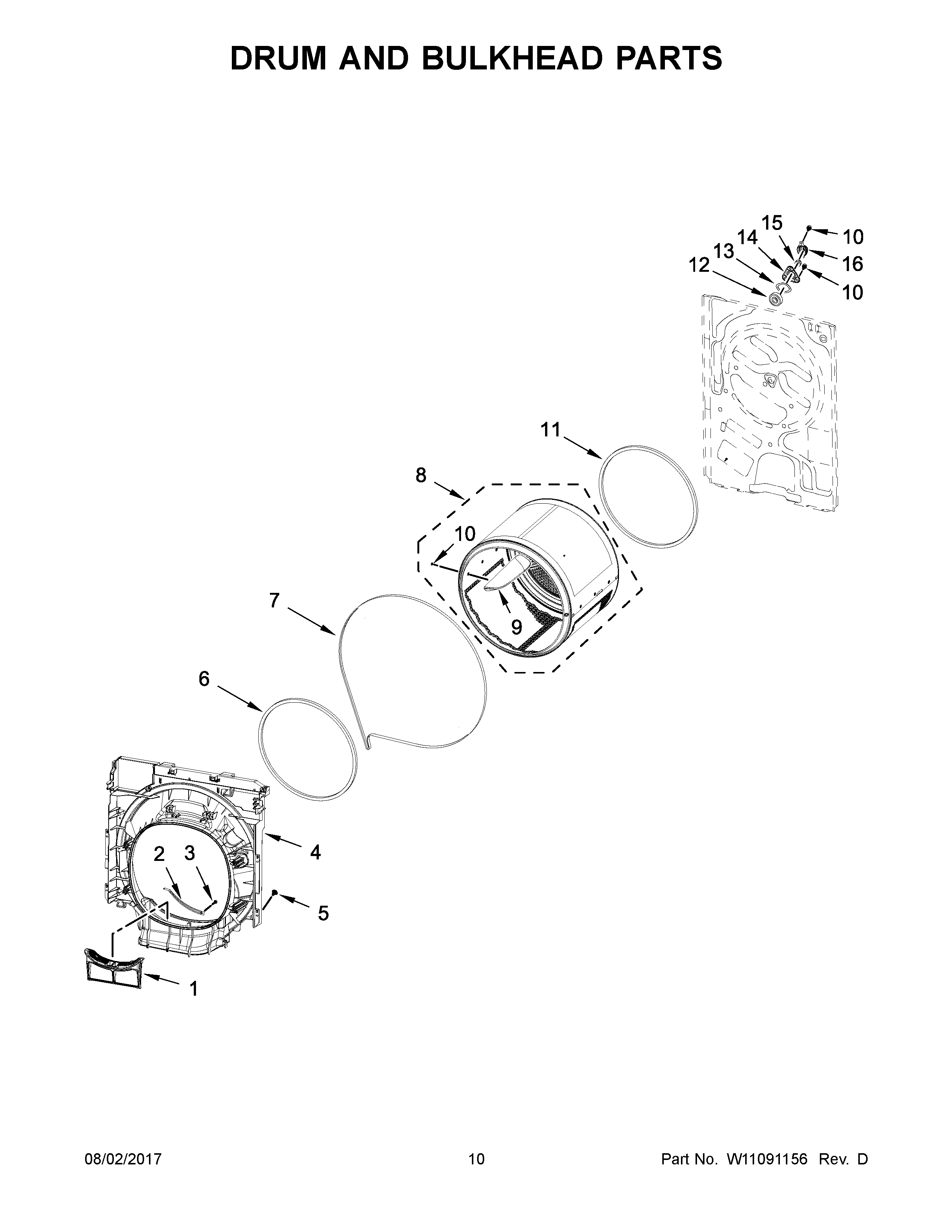

YWHD3090GW0 06 – DRUM AND BULKHEAD PARTS

Products

PositionProduct
1W11665948 Whirlpool Dryer Lint Screen
2461970109731 Whirlpool Sensor
3251926501053 Whirlpool Screw
4W11086785 Whirlpool Bulkhead
5SCREW
6W10615879 Whirlpool Seal
7W11661103 Whirlpool Dryer Belt
8W11444459 Whirlpool Drum Assembly
9BAFFLE, DRUM
10251925600056 Whirlpool Screw
11W10829310 Whirlpool Seal
12461970104891 Whirlpool Bearing
13461970104831 Whirlpool Washer
14461970109272 Whirlpool Support
15251950002001 Whirlpool Nut
16461970105381 Whirlpool Cover
