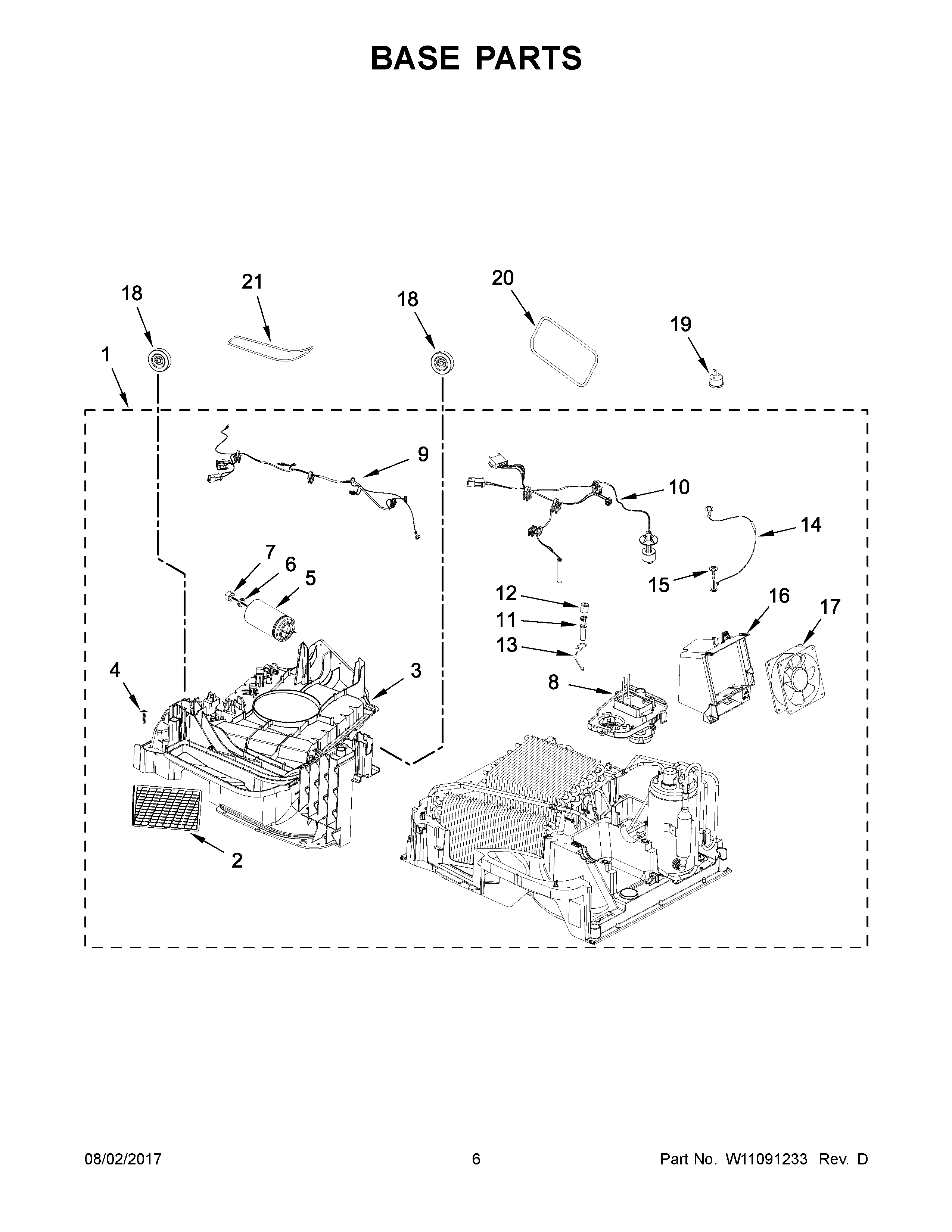

YWHD5090GW0 04 – BASE PARTS

Products

Position	Product
1	W11095574 Whirlpool Base
2	W10717367 Whirlpool Filter
3	W10749921 Whirlpool Cover
4	W10306501 Whirlpool Screw
5	W10888251 Whirlpool Capacitor
6	WASHER, LOCK
7	NUT
8	W11086537 Whirlpool Pump
9	W10861575 Whirlpool Wire Harness
10	W10863066 Whirlpool Wire Harness
11	W11676452 Whirlpool Sensor
12	W10354746 Whirlpool Cap
13	W10374142 Whirlpool Spring
14	HARNESS, HEAT PUMP (GROUND)
15	251926500053 Whirlpool Screw
16	HOUSING, FAN
17	W11097203 Whirlpool Fan
18	W10456115 Whirlpool Support
20	461970110101 Whirlpool Seal
21	461970110181 Whirlpool Seal Assembly
