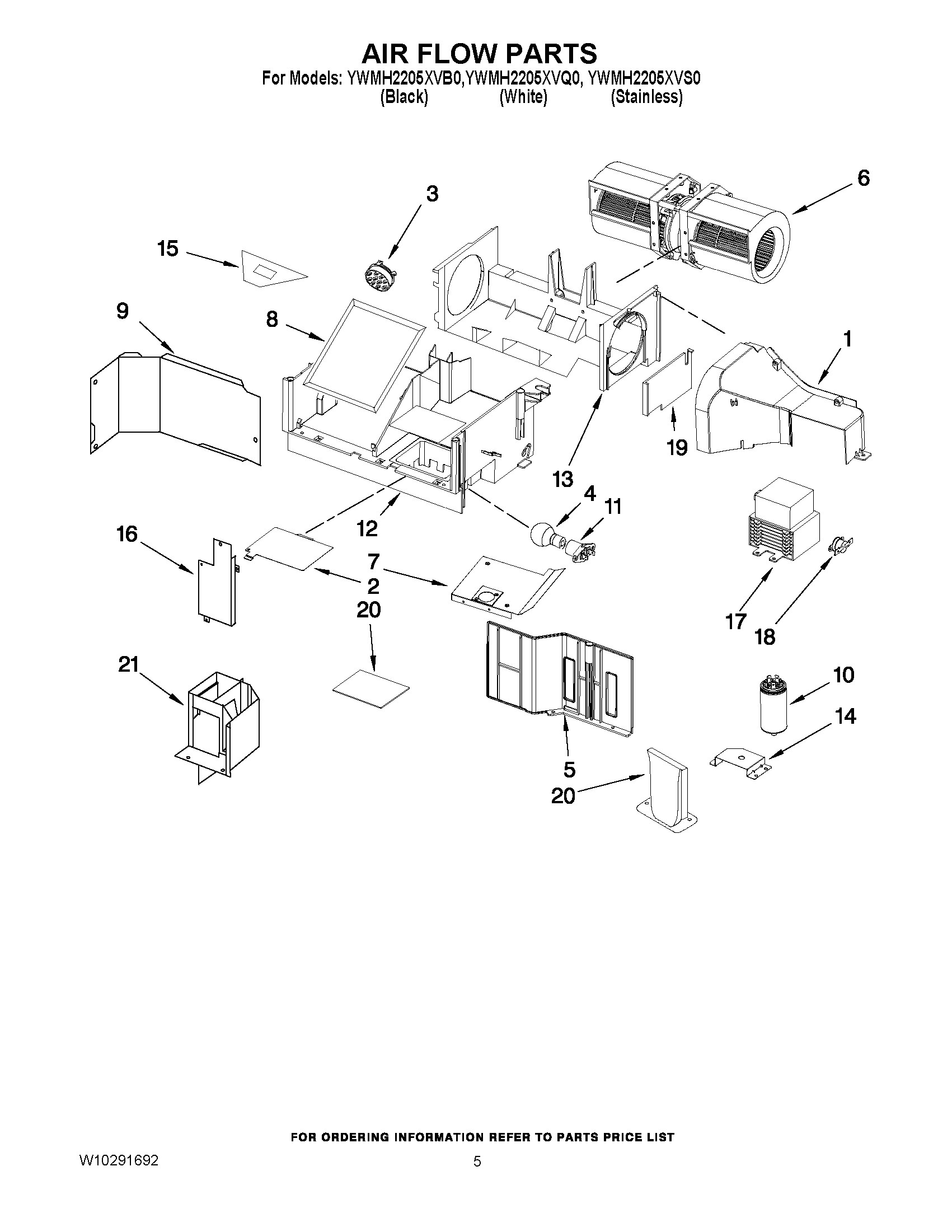

YWMH2205XVB0 04 – AIR FLOW PARTS

Products

Position	Product
1	Deflector, Air
2	8206382 Whirlpool Microwave Light Cover
3	W10245178 Whirlpool Microwave Sensor
4	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
5	Cover, Side Inlet
6	Motor, Fan Assy
7	Support, Sensor
8	8206230A Whirlpool Microwave Charcoal Filter
9	Air Guide,Plate
10	Filter
11	WPW10210878 Whirlpool Microwave LMP Housing
12	Base Plate, Air Guide
13	W10640885 Whirlpool Microwave Mounting Bracket
14	Brkt-Mntg,Filter
15	SOCKET, MOTOR WIRE
16	Cover, Inlet Air Cavity Guide
17	W10245183 Whirlpool Microwave Magnetron
18	W10598693 Whirlpool Microwave Thermostat Fix
19	W10245182 Whirlpool Microwave Duct Cover
20	Cavity Lamp Foil
21	Sealing Plate
