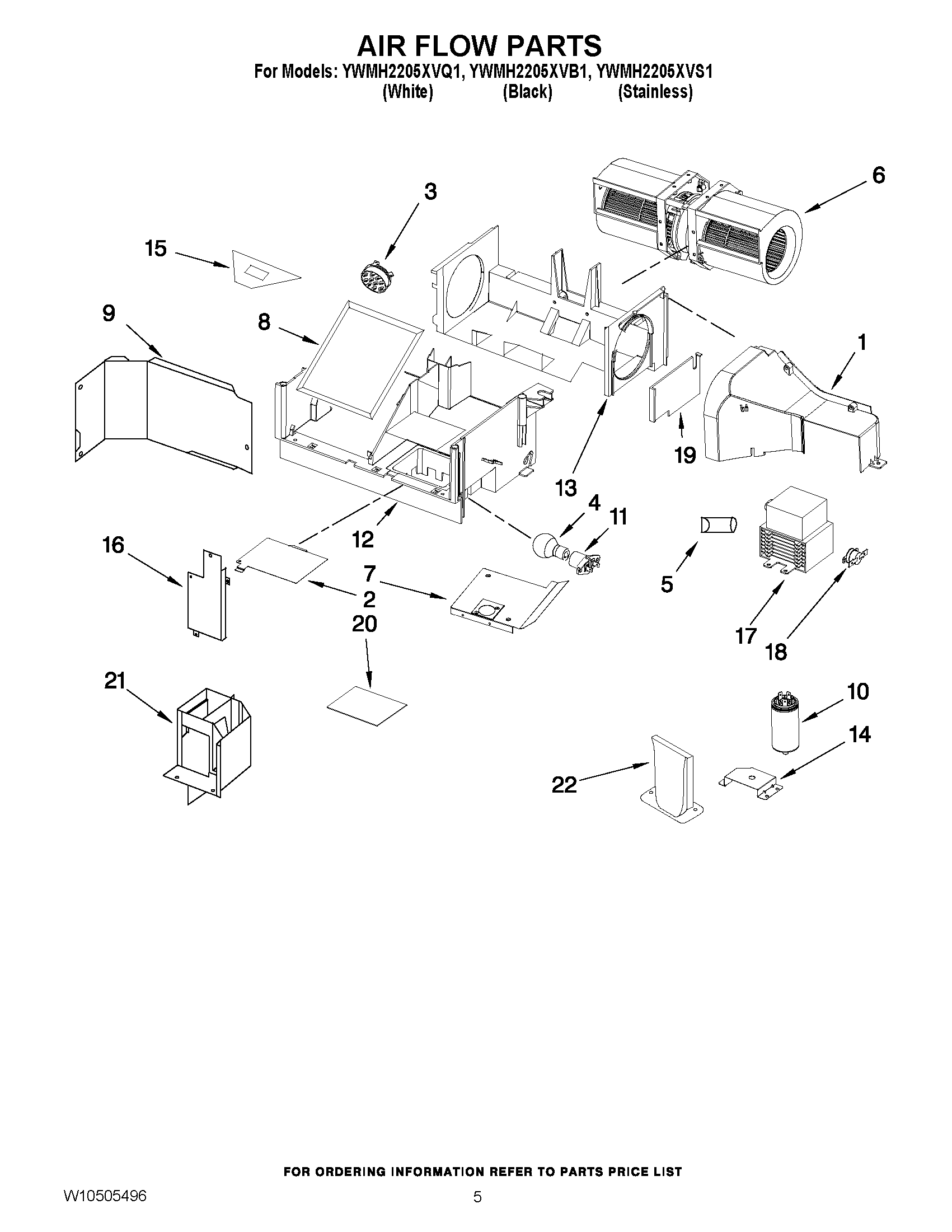

YWMH2205XVQ1 04 – AIR FLOW PARTS

Products

Position	Product
1	Deflector, Air
2	8206382 Whirlpool Microwave Light Cover
3	W10245178 Whirlpool Microwave Sensor
4	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
5	Magnetron, Terminal Cover
6	MOTOR, HOOD FAN
7	Support, Sensor
8	8206230A Whirlpool Microwave Charcoal Filter
9	Air Guide,Plate
10	W10422269 Whirlpool Microwave Filter
11	WPW10210878 Whirlpool Microwave LMP Housing
12	W10387590 Whirlpool Microwave Air Duct
13	W10640885 Whirlpool Microwave Mounting Bracket
14	W10313274 Whirlpool Microwave Mounting Bracket
15	SOCKET, MOTOR WIRE
16	Cover, Inlet Air Cavity Guide
17	W10245183 Whirlpool Microwave Magnetron
18	W10598693 Whirlpool Microwave Thermostat Fix
19	W10245182 Whirlpool Microwave Duct Cover
20	Cavity Lamp Foil
21	PLATE, SEALING AIR GUIDE
22	W10164716 Whirlpool Microwave Plate
