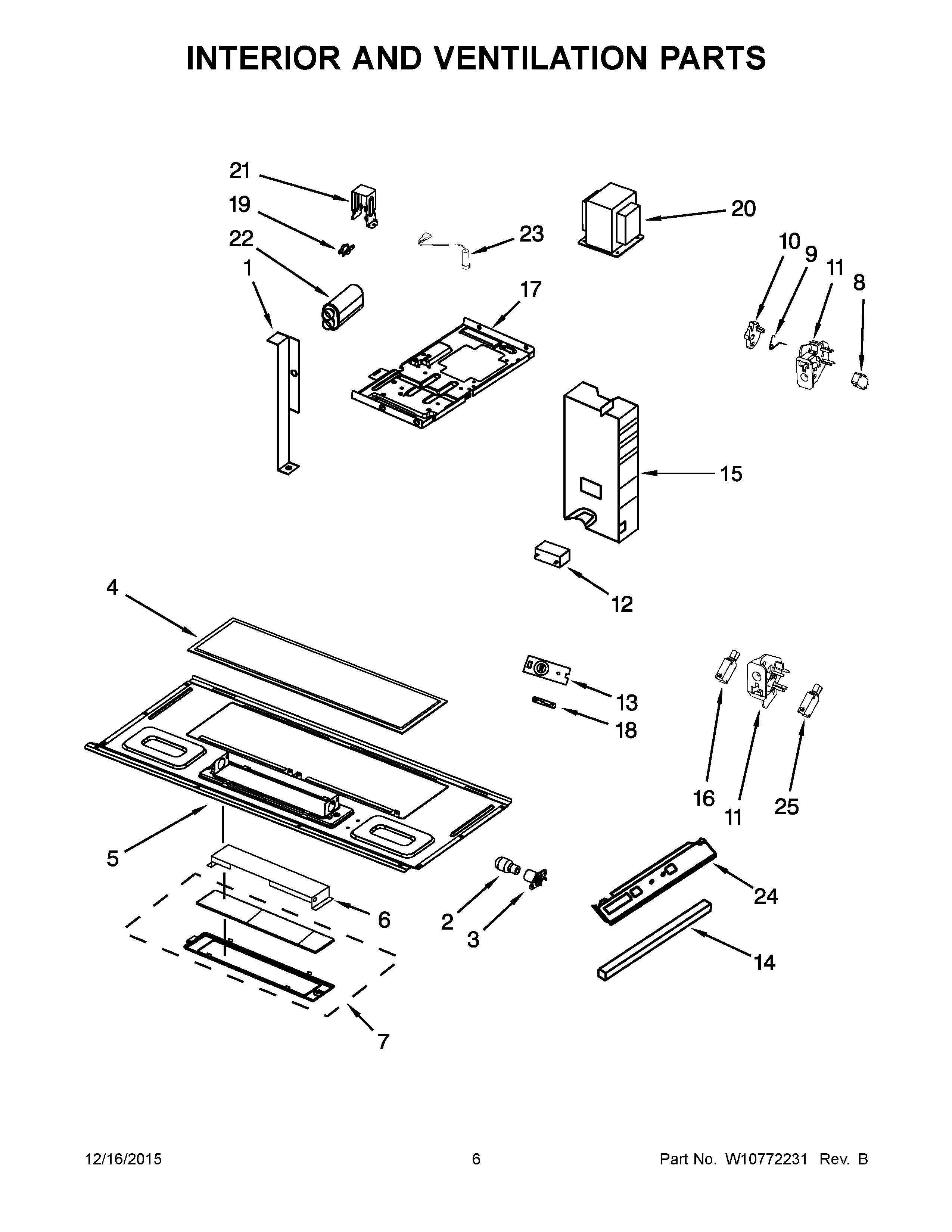

YWMH31017AW2 04 – INTERIOR AND VENTILATION PARTS

YWMH31017AW2 04 – INTERIOR AND VENTILATION PARTS

Written by

in

YWMH31017AW2 04 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1W10313275 Whirlpool Microwave Support Bracket
28206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
3W10210871 Whirlpool Microwave Lamp Housing
4W10208631A Whirlpool Microwave Grease Filter
5W10245196 Whirlpool Microwave Base
6W10250586 Whirlpool Microwave Reflector
7COVR-LIGHT
8W10269460 Whirlpool Microwave Door Switch
9W10156812 Whirlpool Spring
10W10562613 Whirlpool Microwave Interlock Cam Assembly
11AWPW10156813 Whirlpool Microwave Bottom Interlock Support
11WP8206419 Whirlpool Microwave Top Interlock Support
12W11405832 Whirlpool Microwave Capacitor
13W10163422 Whirlpool Microwave Thermistor
14W11523261 Whirlpool Microwave Cushion
15W10448770 Whirlpool Side Cover
16W10727360 Whirlpool Microwave Door Switch
17W10269456 Whirlpool Microwave Base
18FUSE-THRML
19W10269232 Whirlpool Microwave Thermostat Fix
20W10836753 Whirlpool Microwave Transformer
21W10532063 Whirlpool Microwave Bracket
228206562 Whirlpool Microwave Capacitor MG
23W11256462 Whirlpool Microwave Diode
24W10476124 Whirlpool Microwave Base
25W10269458 Whirlpool Microwave Door Switch
