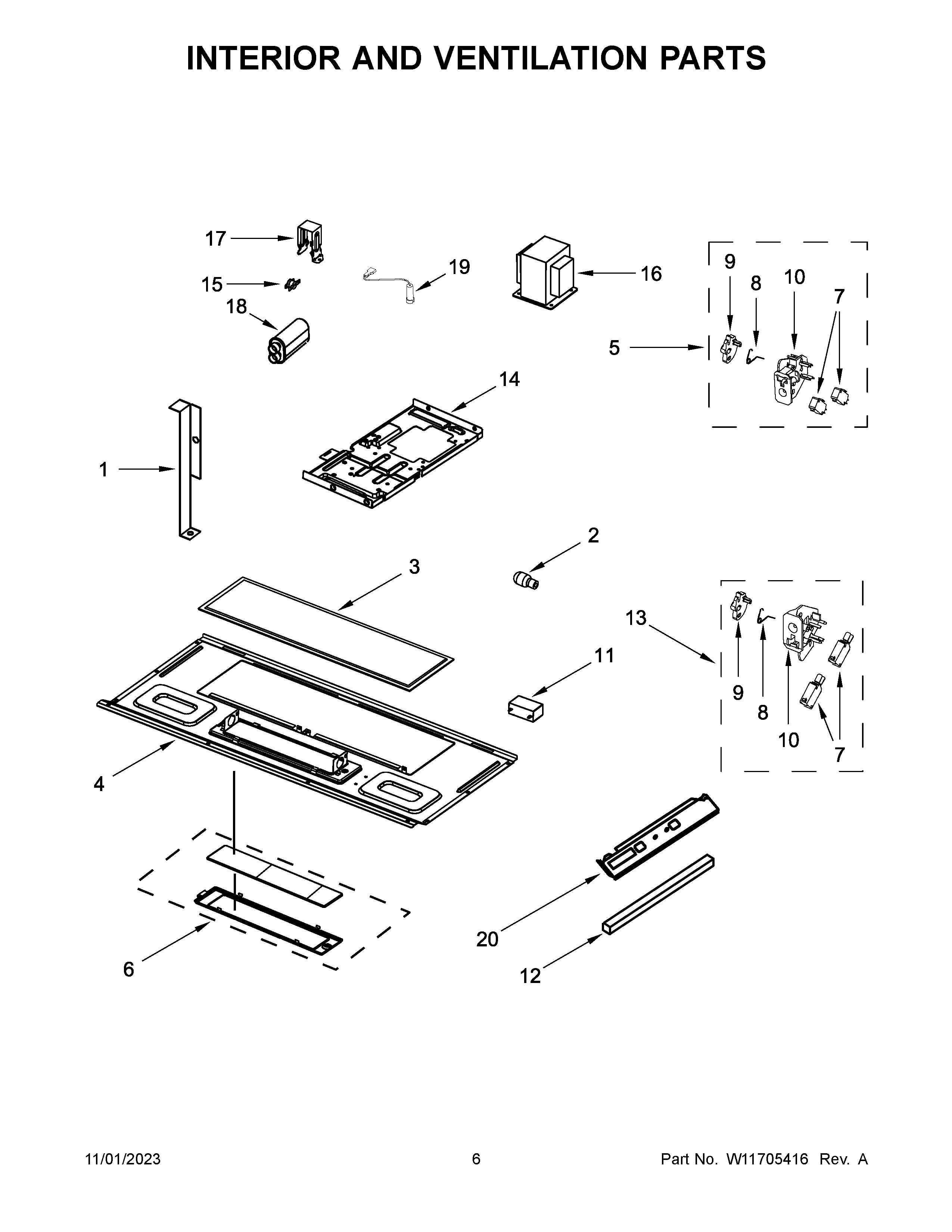

YWMH31017HB07 04 – INTERIOR AND VENTILATION PARTS

YWMH31017HB07 04 – INTERIOR AND VENTILATION PARTS

Written by

in

YWMH31017HB07 04 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1W10313275 Whirlpool Microwave Support Bracket
2W11520384 Whirlpool Light Bulb
3W10208631A Whirlpool Microwave Grease Filter
4PLATE, BOTTOM
5W11551558 Whirlpool Microwave Upper Interlock Assembly TITAN187
6COVR-LIGHT
7SWITCHES, INTERLOCK (NOT SERVICED, ORDER INTERLOCK ASSEMBLIES)
8W10156812 Whirlpool Spring
9W10562613 Whirlpool Microwave Interlock Cam Assembly
10AWPW10156813 Whirlpool Microwave Bottom Interlock Support
10WP8206419 Whirlpool Microwave Top Interlock Support
11W11405832 Whirlpool Microwave Capacitor
12W10571179 Whirlpool Cushion
13LOWER INTERLOCK ASSY
14W11520831 Whirlpool Base
15W11574181 Whirlpool Thermostat Fix
16W11545871 Whirlpool Microwave Transformer
17W10532063 Whirlpool Microwave Bracket
188206562 Whirlpool Microwave Capacitor MG
19W11256462 Whirlpool Microwave Diode
20SUPPORT, NTC
