YWMH32519HV2 02 – CONTROL PANEL PARTS

YWMH32519HV2 02 – CONTROL PANEL PARTS

Written by

in

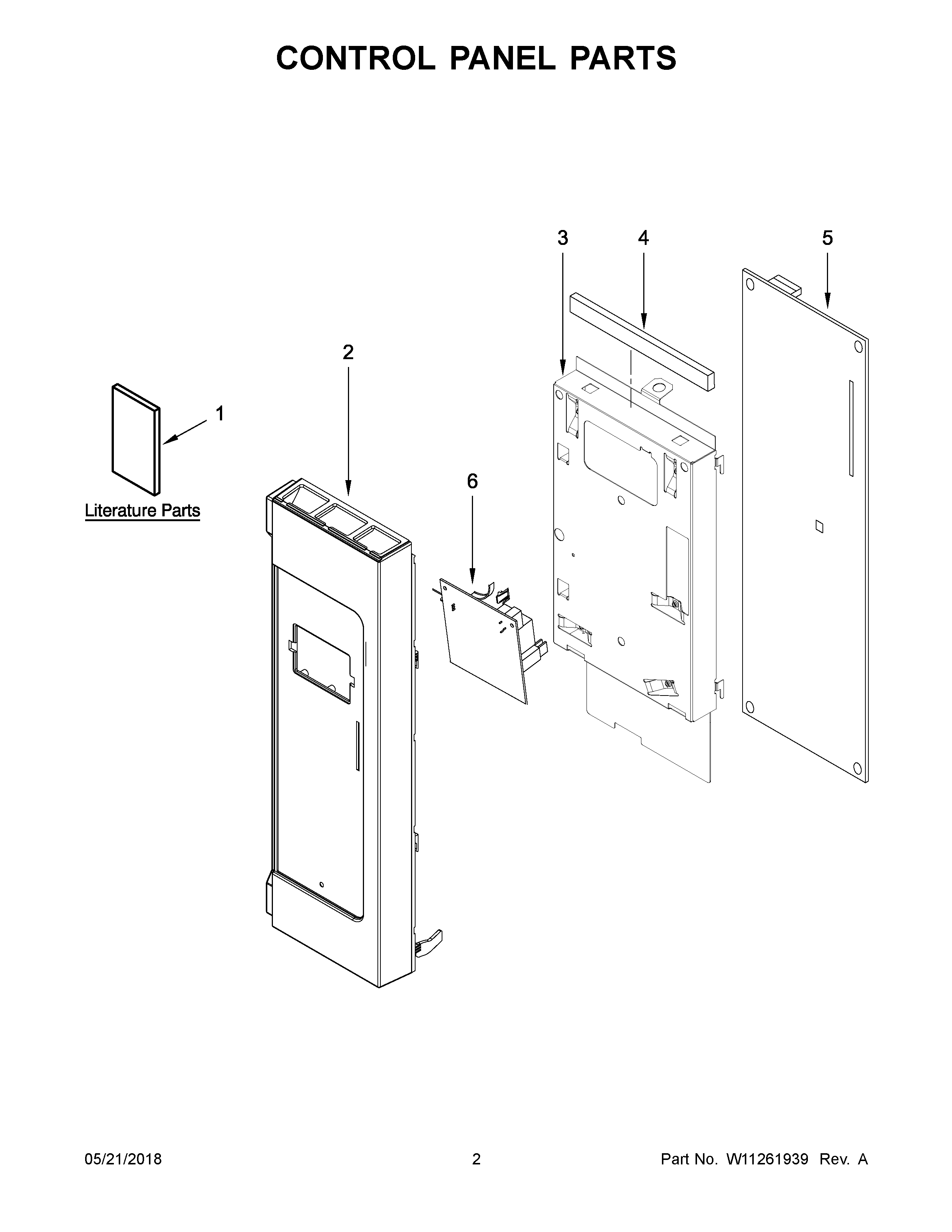

YWMH32519HV2 02 – CONTROL PANEL PARTS

Products

PositionProduct
1CTECH SHEET
1INSTALLATION INSTRUCTIONS
1BQUICK REFERENCE GUIDE
1AUSE AND CARE GUIDE
2AW11184553 Whirlpool Microwave Control Panel
2W11184551 Whirlpool Microwave Control Panel
3W10833366 Whirlpool Microwave Control Bracket
4W10833531 Whirlpool Microwave Foam Seal
5W11342928 Whirlpool Power Board
6W11333816 Whirlpool Microwave Electronic Control Board
