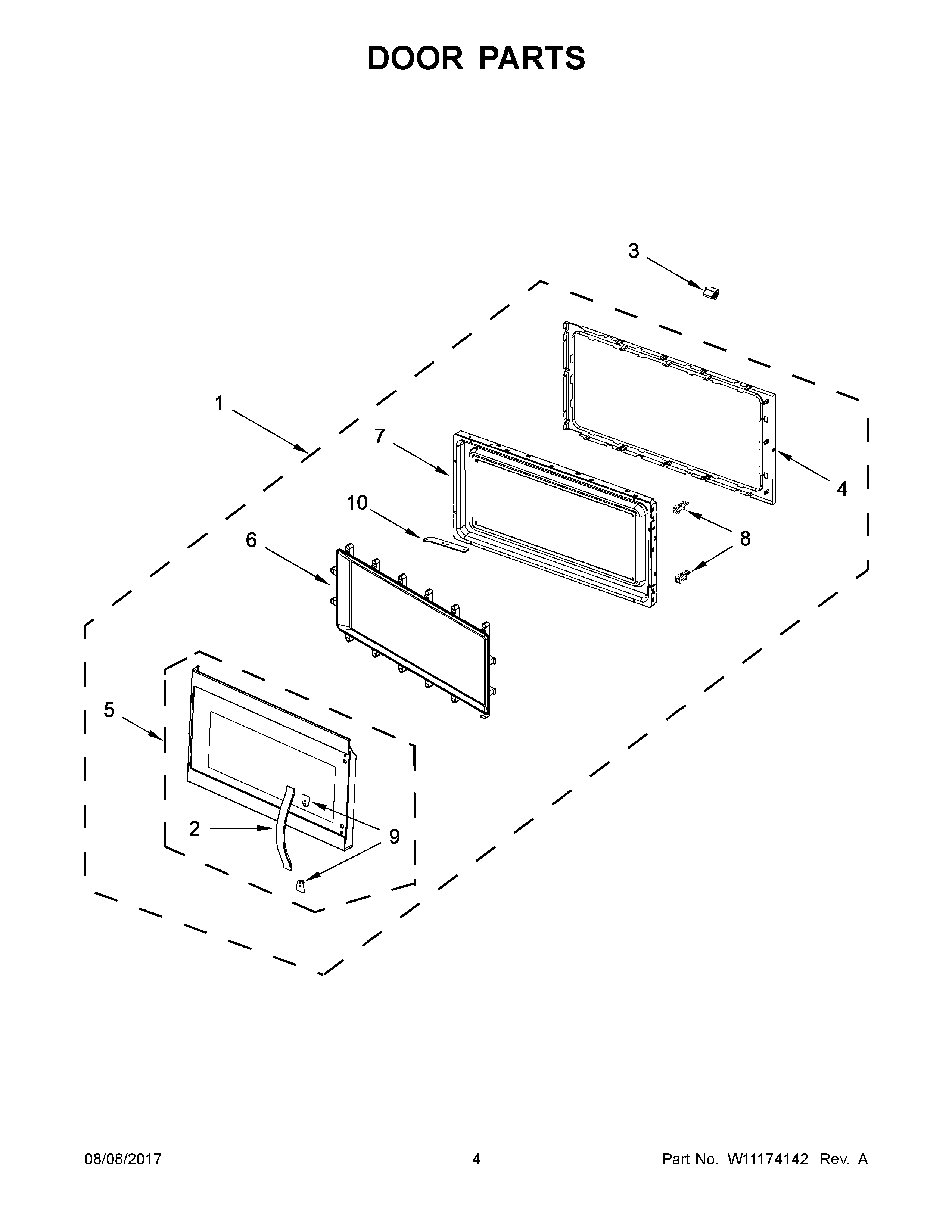

YWMH53520CH3 03 – DOOR PARTS

Products

Position	Product
1D	W10629796 Whirlpool Microwave Door
1C	W10629795 Whirlpool Microwave Door
1B	W10629794 Whirlpool Microwave Door
1A	W10629793 Whirlpool Microwave Door Assembly
1	W10629792 Whirlpool Microwave Door
2B	W10513990 Whirlpool Microwave Door Handle
2A	W10514244 Whirlpool Door Handle
2	W10565242 Whirlpool Microwave Door Handle
3A	W10643974 Whirlpool Microwave Clip
3	W10643975 Whirlpool Microwave Clip
4A	W10647772 Whirlpool Microwave Choke Cover
4	W10647773 Whirlpool Microwave Choke Cover
5D	W10647769 Whirlpool Door Outer
5C	W10647768 Whirlpool Outer Door
5B	W10647765 Whirlpool Microwave Outer Door
5A	W10647767 Whirlpool Microwave Outer Door
5	W10647766 Whirlpool Microwave Outer Door
6	W10562560 Whirlpool Microwave Baffle
6A	W10514243 Whirlpool Microwave Door Baffle
7	W10647794 Whirlpool Inner Door
7A	W10647793 Whirlpool Microwave Inner Door
8	W10740455 Whirlpool Microwave Door Latch
9	W10514261 Whirlpool Cushion Assembly
10	BRACKET, LOWER HINGE
