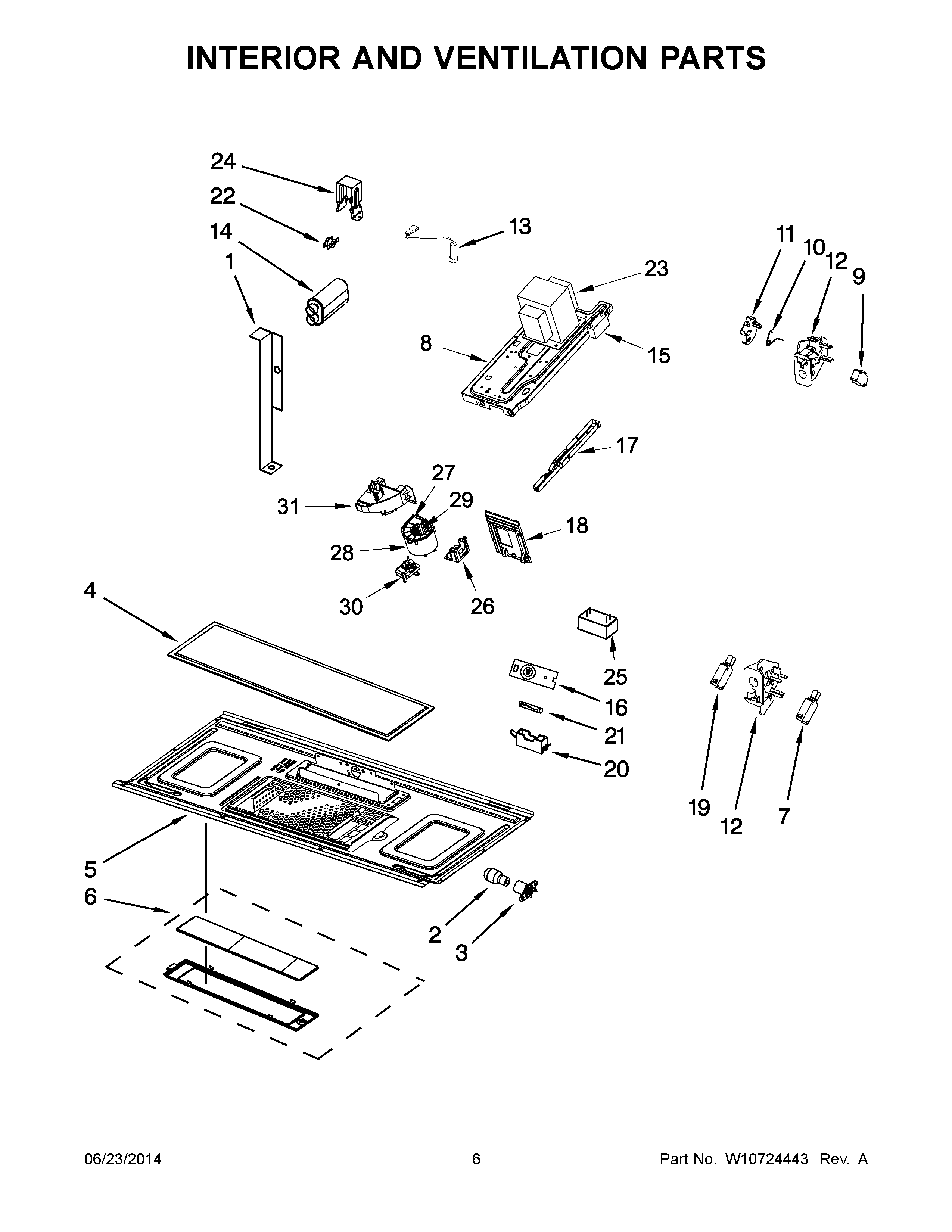

YWMH53520CS0 04 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	W10540715 Whirlpool Microwave Support Bracket
2	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
3	W10210871 Whirlpool Microwave Lamp Housing
4	W10208631A Whirlpool Microwave Grease Filter
5	W10571127 Whirlpool Microwave Base
6	COVR-LIGHT
7	W10269458 Whirlpool Microwave Door Switch
8	W10631826 Whirlpool Microwave Base
9	W10269460 Whirlpool Microwave Door Switch
10	W10156812 Whirlpool Spring
11	W10562613 Whirlpool Microwave Interlock Cam Assembly
12	WPW10156813 Whirlpool Microwave Bottom Interlock Support
12	WP8206419 Whirlpool Microwave Top Interlock Support
13	W11256462 Whirlpool Microwave Diode
14	W10345331 Whirlpool Microwave Capacitor
15	W11405831 Whirlpool Microwave Capacitor
16	W10536989 Whirlpool Microwave Thermistor
17	W10540718 Whirlpool Microwave Mounting Bracket
18	W10533481 Whirlpool Microwave Deflector Assembly
19	W10727360 Whirlpool Microwave Door Switch
20	W10245194 Whirlpool Microwave Fuse Block
21	FUSE-THRML
22	W10598693 Whirlpool Microwave Thermostat Fix
23	W10733412 Whirlpool Microwave High Voltage Transformer
24	W10518719 Whirlpool Microwave Deflector Assembly
25	W10568805 Whirlpool Microwave Resistor
26	W10533480 Whirlpool Microwave Holder
27	W10533502 Whirlpool Microwave Fan Cover
28	W10533501 Whirlpool Microwave Housing
29	W10533503 Whirlpool Microwave Fan Wheel
30	W11230994 Whirlpool Microwave Fan Motor
31	W10631700 Whirlpool Microwave Air Guide
