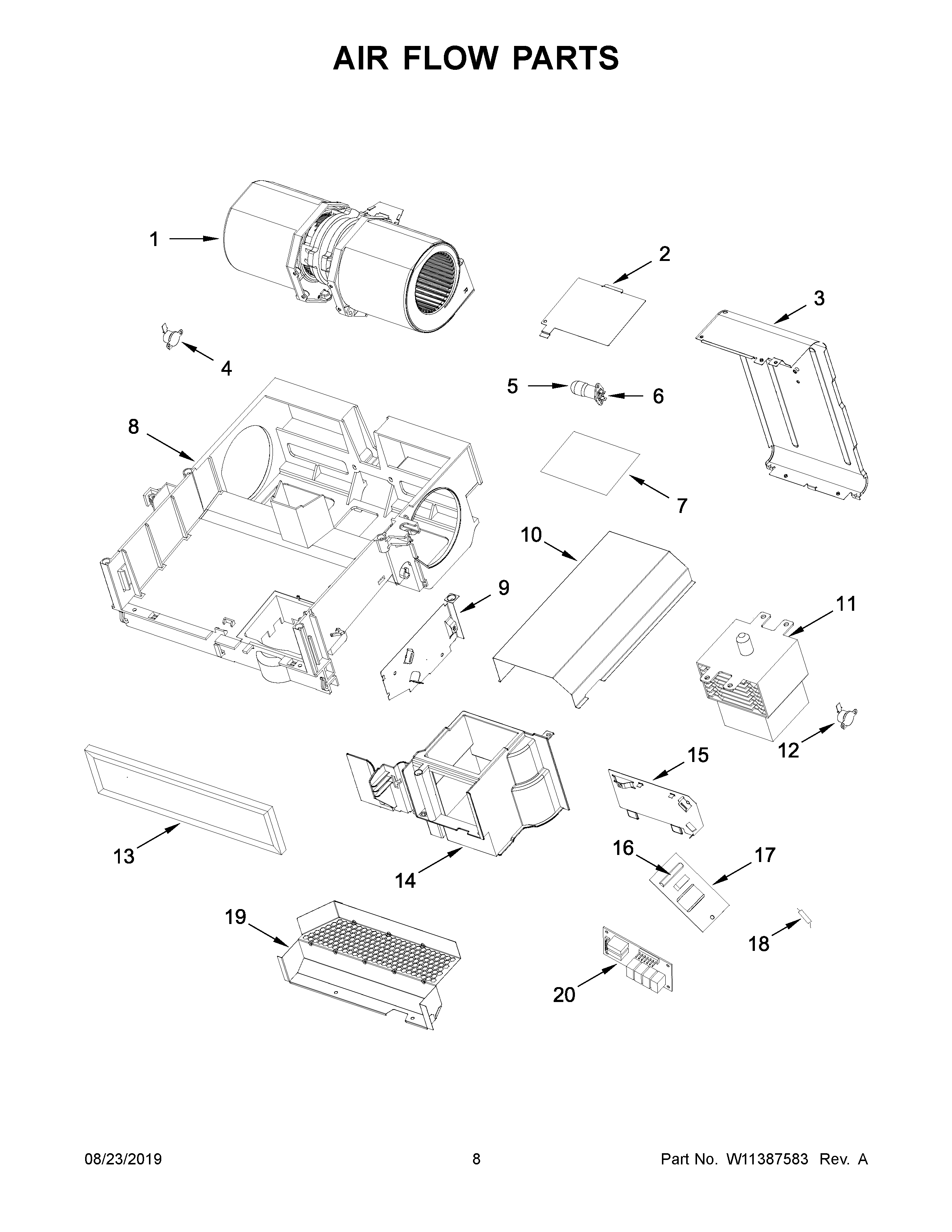

YWMH54521JZ0 05 – AIR FLOW PARTS

Products

Position	Product
1	W11662632 Whirlpool Fan Motor
2	8206382 Whirlpool Microwave Light Cover
3	DEFLECTOR, AIR
4	W10557536 Whirlpool Microwave Sensor
5	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
6	WPW10210878 Whirlpool Microwave LMP Housing
7	W10531724 Whirlpool Microwave Lamp Glass
8	BASEPLATE, AIR GUIDE
9	W11293488 Whirlpool Microwave Air Duct
10	OUTLET, CAVITY (BACK)
11	W10818686 Whirlpool Magnetron
12	W10598693 Whirlpool Microwave Thermostat Fix
13	W11383759 Whirlpool Microwave Filter
14	OUTLET, CAVITY (FRONT)
15	BRACKET, PCBA
16	FUSE-THRML
17	WPW10531156 Whirlpool Microwave Filter
18	W11256462 Whirlpool Microwave Diode
19	SHIELD, FINGER
20	W11133799 Whirlpool Microwave Electronic Control Board
