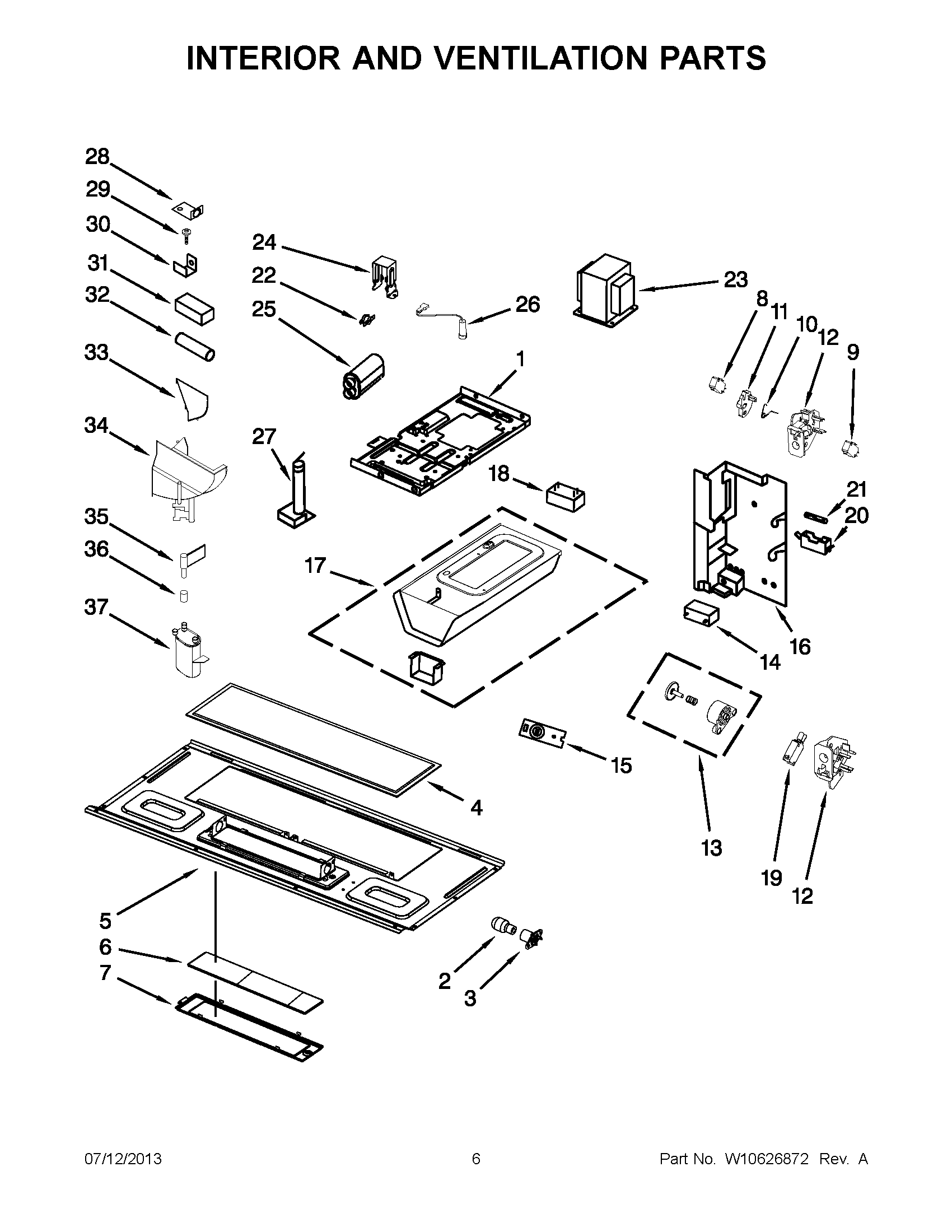

YWMH76718AS1 03 – INTERIOR AND VENTILATION PARTS

YWMH76718AS1 03 – INTERIOR AND VENTILATION PARTS

Written by

in

YWMH76718AS1 03 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1Chassis
28206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
3W10210871 Whirlpool Microwave Lamp Housing
4W10208631A Whirlpool Microwave Grease Filter
5W10245196 Whirlpool Microwave Base
6WPW10210875 Whirlpool Microwave Lamp Glass Cover
7HOLDER, GLASS
8W10727360 Whirlpool Microwave Door Switch
9W10269458 Whirlpool Microwave Door Switch
10W10156812 Whirlpool Spring
11W10562613 Whirlpool Microwave Interlock Cam Assembly
12WP8206419 Whirlpool Microwave Top Interlock Support
12WPW10156813 Whirlpool Microwave Bottom Interlock Support
13W10197758 Whirlpool Microwave Piston
14W11405831 Whirlpool Microwave Capacitor
15W10163422 Whirlpool Microwave Thermistor
16Plate, Side
17W10310720 Whirlpool Microwave Base
18W10245190 Whirlpool Microwave Resistor
19W10211974 Whirlpool Microwave Door Interlock Micro Switch
22THERMOSTAT TCO 135 CELSIUS/-35 CELSIUS
23TRANSFORMER, HIGH VOLTAGE
24W10532063 Whirlpool Microwave Bracket
25W10345331 Whirlpool Microwave Capacitor
26W11256462 Whirlpool Microwave Diode
27W10245188 Whirlpool Microwave Support Bracket
28W10259248 Whirlpool Microwave Cover Assembly
29W10599629 Whirlpool Microwave Thermostat Fix
308206223 Whirlpool Clip
31W10245194 Whirlpool Microwave Fuse Block
32FUSE-THRML
33Plate, Housing
34Housing, Valve
35VALVE
36W10259216 Whirlpool Screw Valve
378206082 Whirlpool Microwave Solenoid
