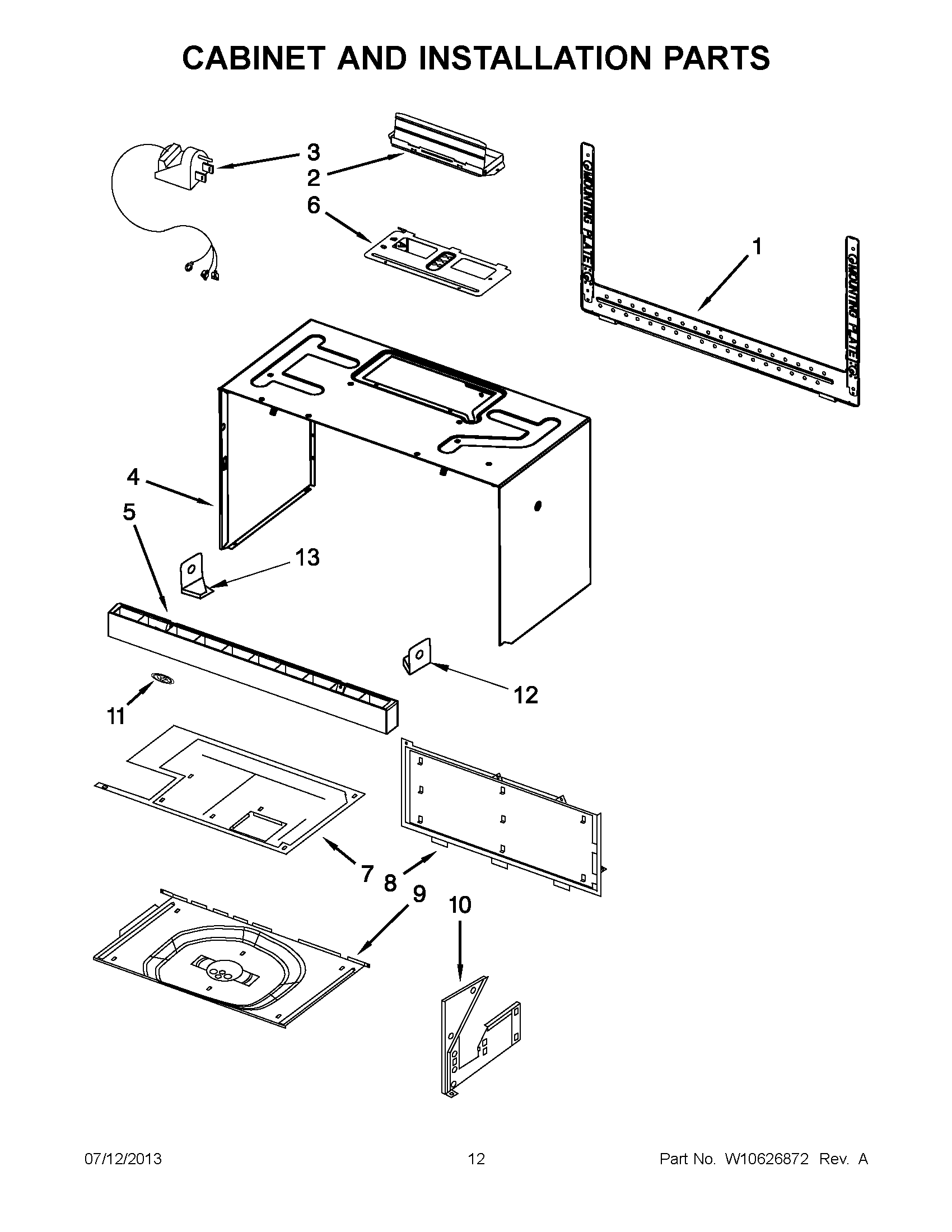

YWMH76718AS1 06 – CABINET AND INSTALLATION PARTS

YWMH76718AS1 06 – CABINET AND INSTALLATION PARTS

Written by

in

YWMH76718AS1 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIWP8169704 Whirlpool Screw
NIMISCELLANEOUS, HARNESS, MAIN
NIMISCELLANEOUS, GROUND WIRE, FILTER
NIMISCELLANEOUS, HARNESS, WIRE TURNTABLE MOTOR AND HOOD LAMP
NI8205948 Whirlpool Microwave Mount
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & SPANISH)
NIW10539840 Whirlpool Microwave Wire Harness
1W11025649 Whirlpool Microwave Mounting Plate
2W10843943 Whirlpool Microwave Vent Damper
38206388 Whirlpool Microwave Power Cord
4WPW10245176 Whirlpool Microwave Cabinet Wrapper
5W10245218 Whirlpool Microwave Vent Grille
5W10245216 Whirlpool Microwave Vent Grille
6COVER, HOOD FAN MOTOR
7W10248268 Whirlpool Microwave Plate
8W10248267 Whirlpool Plate
9ASSEMBLY, BOTTOM PLATE
10W10248279 Whirlpool Plate
11W11178521 Whirlpool Dishwasher Nameplate
12W10703282 Whirlpool Microwave Mounting Bracket
12W10810989 Whirlpool Microwave Mounting Bracket
13W11026306 Whirlpool Microwave Mounting Bracket
13W10830163 Whirlpool Microwave Mounting Bracket
