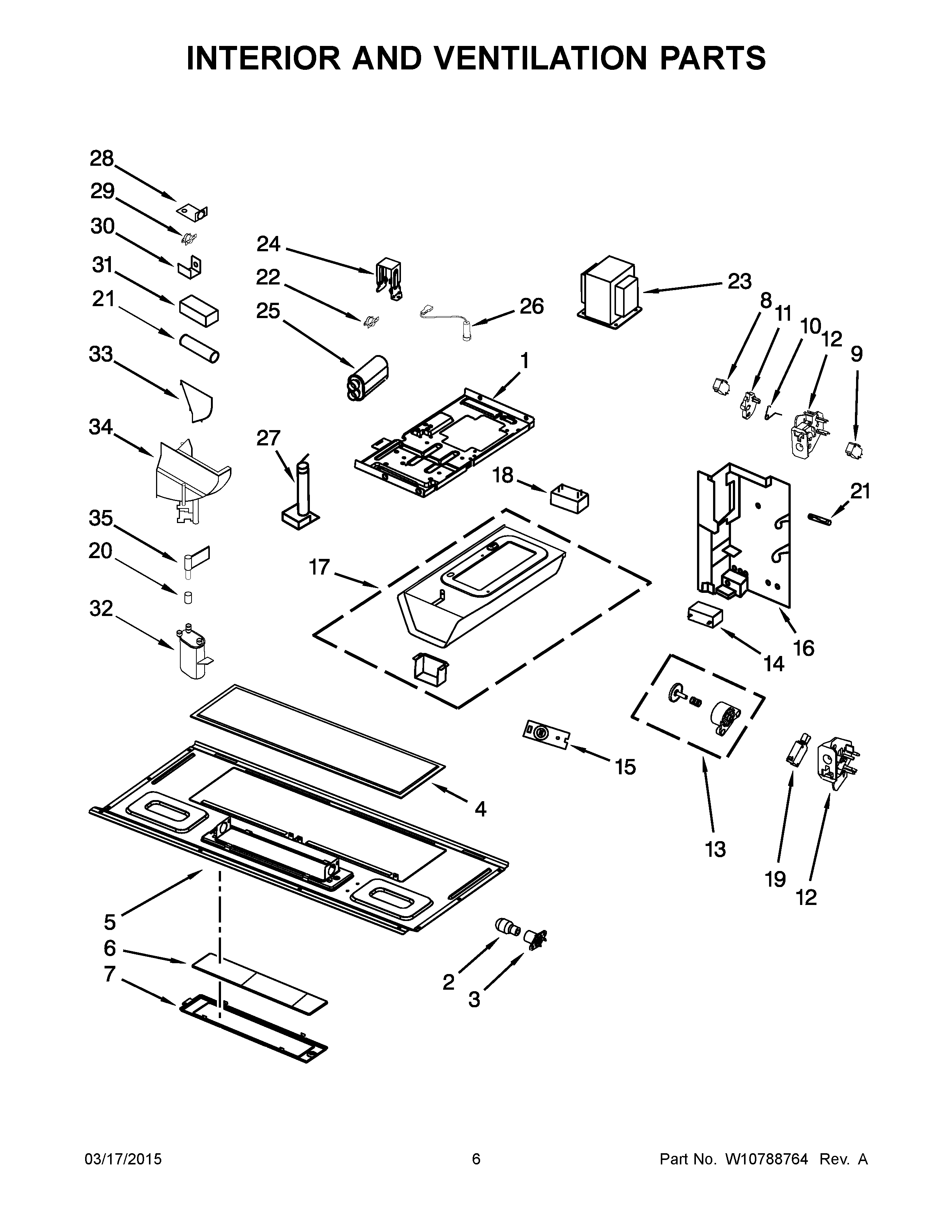

YWMH76718AS2 04 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	Chassis
2	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
3	W10210871 Whirlpool Microwave Lamp Housing
4	W10208631A Whirlpool Microwave Grease Filter
5	W10245196 Whirlpool Microwave Base
6	WPW10210875 Whirlpool Microwave Lamp Glass Cover
7	HOLDER, GLASS
8	W10727360 Whirlpool Microwave Door Switch
9	W10269458 Whirlpool Microwave Door Switch
10	W10156812 Whirlpool Spring
11	W10562613 Whirlpool Microwave Interlock Cam Assembly
12A	WPW10156813 Whirlpool Microwave Bottom Interlock Support
12	WP8206419 Whirlpool Microwave Top Interlock Support
13	W10197758 Whirlpool Microwave Piston
14	W11405831 Whirlpool Microwave Capacitor
15	W10163422 Whirlpool Microwave Thermistor
16	AIR GUIDE, LOWER
17	W10310720 Whirlpool Microwave Base
18	W10245190 Whirlpool Microwave Resistor
19	W10211974 Whirlpool Microwave Door Interlock Micro Switch
20	W10259216 Whirlpool Screw Valve
21	FUSE-THRML
22	CUTOUT, THERMAL
23	TRANSFORMER, HIGH VOLTAGE
24	W10532063 Whirlpool Microwave Bracket
25	W10345331 Whirlpool Microwave Capacitor
26	W11256462 Whirlpool Microwave Diode
27	W10245188 Whirlpool Microwave Support Bracket
28	W10259248 Whirlpool Microwave Cover Assembly
29	W10599629 Whirlpool Microwave Thermostat Fix
30	8206223 Whirlpool Clip
31	W10245194 Whirlpool Microwave Fuse Block
32	W10458325 Whirlpool Microwave Actuator
33	Plate, Housing
34	Housing, Valve
35	VALVE
