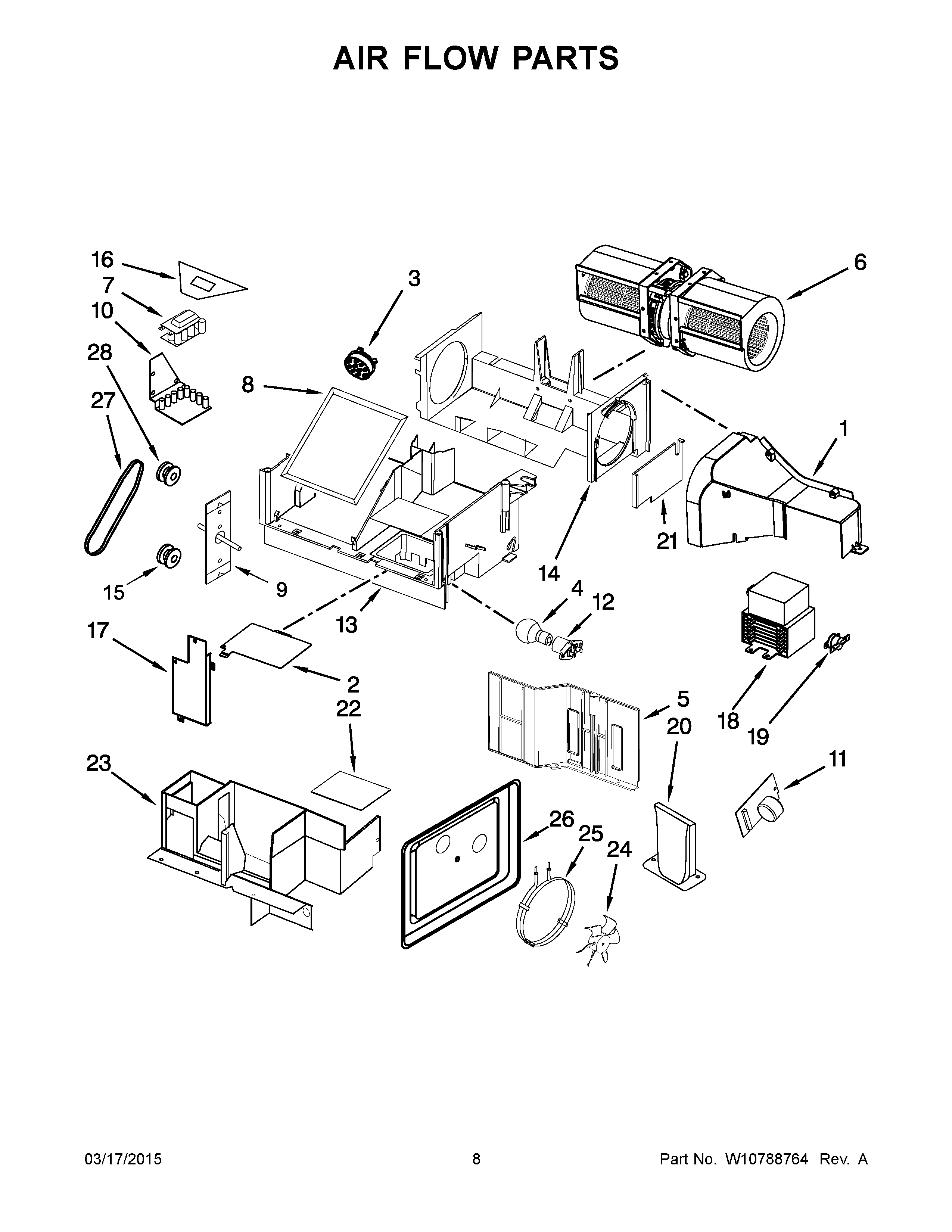

YWMH76718AS2 05 – AIR FLOW PARTS

Products

Position	Product
1	W10640886 Whirlpool Microwave Deflector Assembly
2	8206382 Whirlpool Microwave Light Cover
3	W10245178 Whirlpool Microwave Sensor
4	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
5	Cover, Side Inlet
6	ASSEMBLY, FAN MOTOR
7	MOTOR, CONVECTION
8	8206230A Whirlpool Microwave Charcoal Filter
9	ASSEMBLY, BEARING
10	W10399840 Whirlpool Support Bracket
11	W10623627 Whirlpool Microwave Filter
12	WPW10210878 Whirlpool Microwave LMP Housing
13	BASE PLATE, AIR GUIDE
14	HOLDER, HOOD FAN
15	W10249506 Whirlpool Microwave Pulley
16	SOCKET, MOTOR WIRE
17	Cover, Inlet Air Cavity Guide
18	W10245183 Whirlpool Microwave Magnetron
19	W10491433 Whirlpool Microwave Thermostat Fix
20	W10164716 Whirlpool Microwave Plate
21	W10245182 Whirlpool Microwave Duct Cover
22	Cavity Lamp Foil
23	PLATE, SEALING
24	Wheel, Fan
25	W10776366 Whirlpool Microwave Heater
26	ASSEMBLY, CHAMBER
27	W10249504 Whirlpool Microwave Drive Belt
28	Wheel, Pulley
