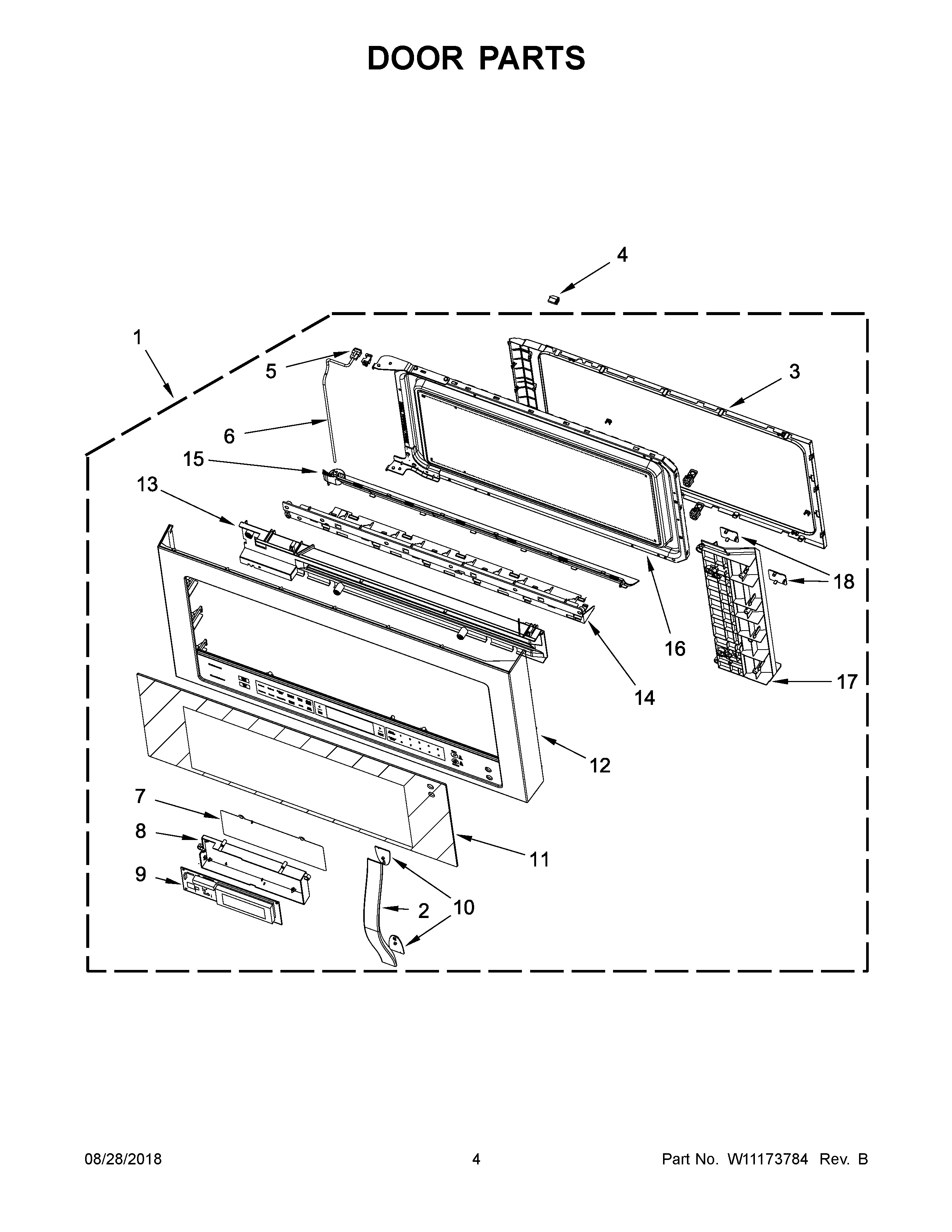

YWMH76719CB1 03 – DOOR PARTS

Products

Position	Product
1B	DOOR, COMPLETE (STAINLESS)
1A	DOOR, COMPLETE (BLACK)
1	DOOR, COMPLETE (WHITE)
2	W10571333 Whirlpool Microwave Door Handle
2A	W10571332 Whirlpool Microwave Door Handle
2B	W10478162 Whirlpool Microwave Door Handle
3	W10648086 Whirlpool Microwave Choke Cover
4	W10643448 Whirlpool Microwave Clip
5	HOLDER, DOOR CABLE
6	W10508745 Whirlpool Microwave Wire Harness
7	W10540298 Whirlpool Cover Assembly
8	W10770970 Whirlpool Holder
9	W11432278 Whirlpool Microwave Control Board
10	W10478213 Whirlpool Microwave Cushion
11	WPW10478716 Whirlpool Door Glass
11A	WPW10478721 Whirlpool Microwave Door Glass
11B	GLASS, OUTER (STAINLESS)
12B	W10867015 Whirlpool Microwave Outer Door
12	ASSEMBLY, DOOR FRAME (WHITE)
12A	ASSEMBLY, DOOR FRAME (BLACK)
13	W10617743 Whirlpool Microwave Cover
14	W10476546 Whirlpool Microwave Support Bracket
15	W10570992 Whirlpool Microwave Door Trim
15A	W10476550 Whirlpool Microwave Door Trim
16	W10568846 Whirlpool Microwave Inner Door
17A	W11699920 Whirlpool Microwave Support Bracket
17	W10734944 Whirlpool Microwave Support Bracket
18	W10571119 Whirlpool Plate Cover
18A	W10478657 Whirlpool Microwave Cover
