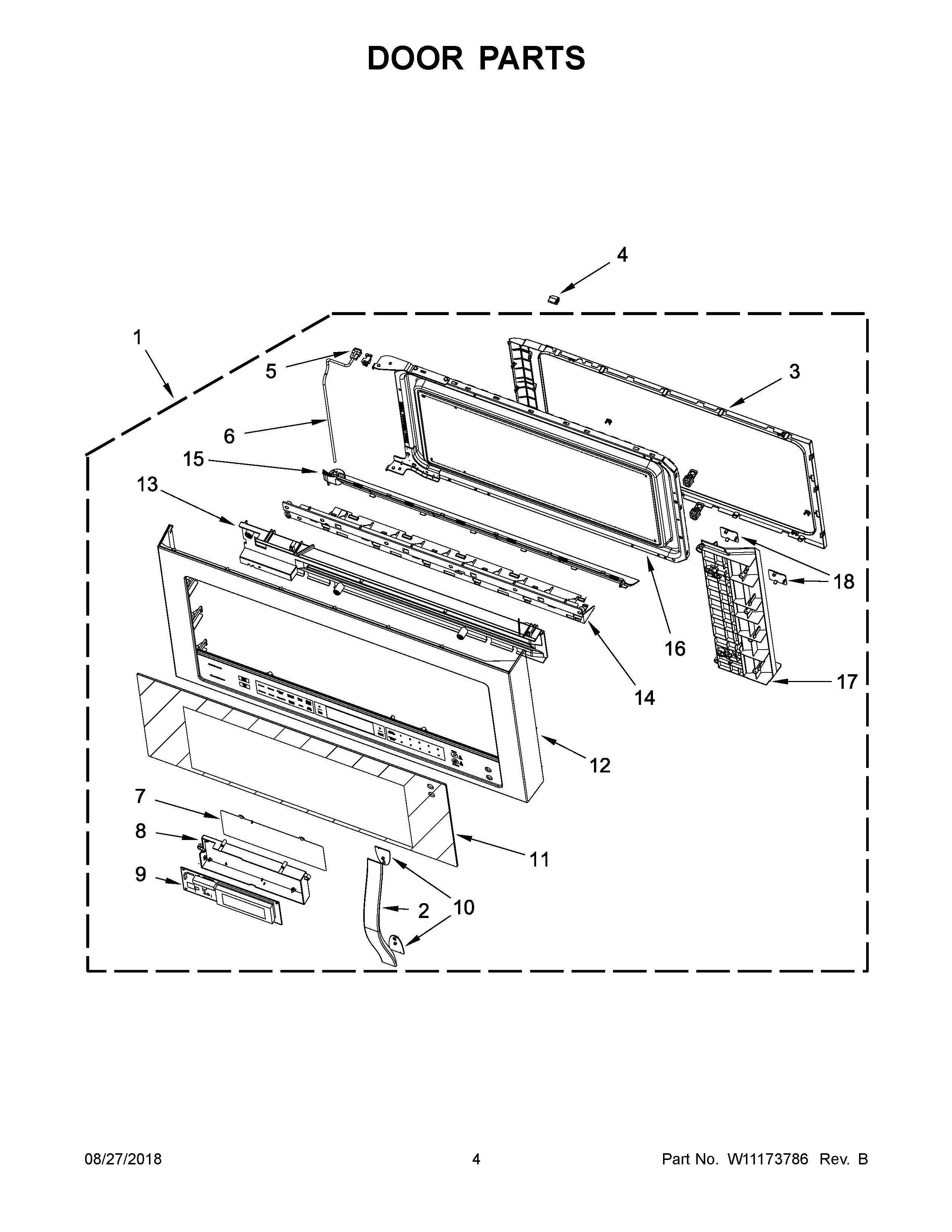

YWMH76719CS2 03 – DOOR PARTS

Products

Position	Product
1	DOOR, COMPLETE (WHITE)
1B	W10893446 Whirlpool Microwave Door
1A	DOOR, COMPLETE (BLACK)
2	W10571333 Whirlpool Microwave Door Handle
2A	W10571332 Whirlpool Microwave Door Handle
2B	W10478162 Whirlpool Microwave Door Handle
3	W10648086 Whirlpool Microwave Choke Cover
4	W10643448 Whirlpool Microwave Clip
5	HOLDER, DOOR CABLE
6	W10508745 Whirlpool Microwave Wire Harness
7	W10540298 Whirlpool Cover Assembly
8	W10770970 Whirlpool Holder
9	W11432278 Whirlpool Microwave Control Board
10	W10478213 Whirlpool Microwave Cushion
11B	GLASS, OUTER (STAINLESS)
11A	WPW10478721 Whirlpool Microwave Door Glass
11	WPW10478716 Whirlpool Door Glass
12B	W10867015 Whirlpool Microwave Outer Door
12A	ASSEMBLY, DOOR FRAME (BLACK)
12	ASSEMBLY, DOOR FRAME (WHITE)
13	W10617743 Whirlpool Microwave Cover
14	W10476546 Whirlpool Microwave Support Bracket
15	W10570992 Whirlpool Microwave Door Trim
15A	W10476550 Whirlpool Microwave Door Trim
16	W11045518 Whirlpool Microwave Inner Door
17A	W11699920 Whirlpool Microwave Support Bracket
17	W10734944 Whirlpool Microwave Support Bracket
18A	W10478657 Whirlpool Microwave Cover
18	W10571119 Whirlpool Plate Cover
