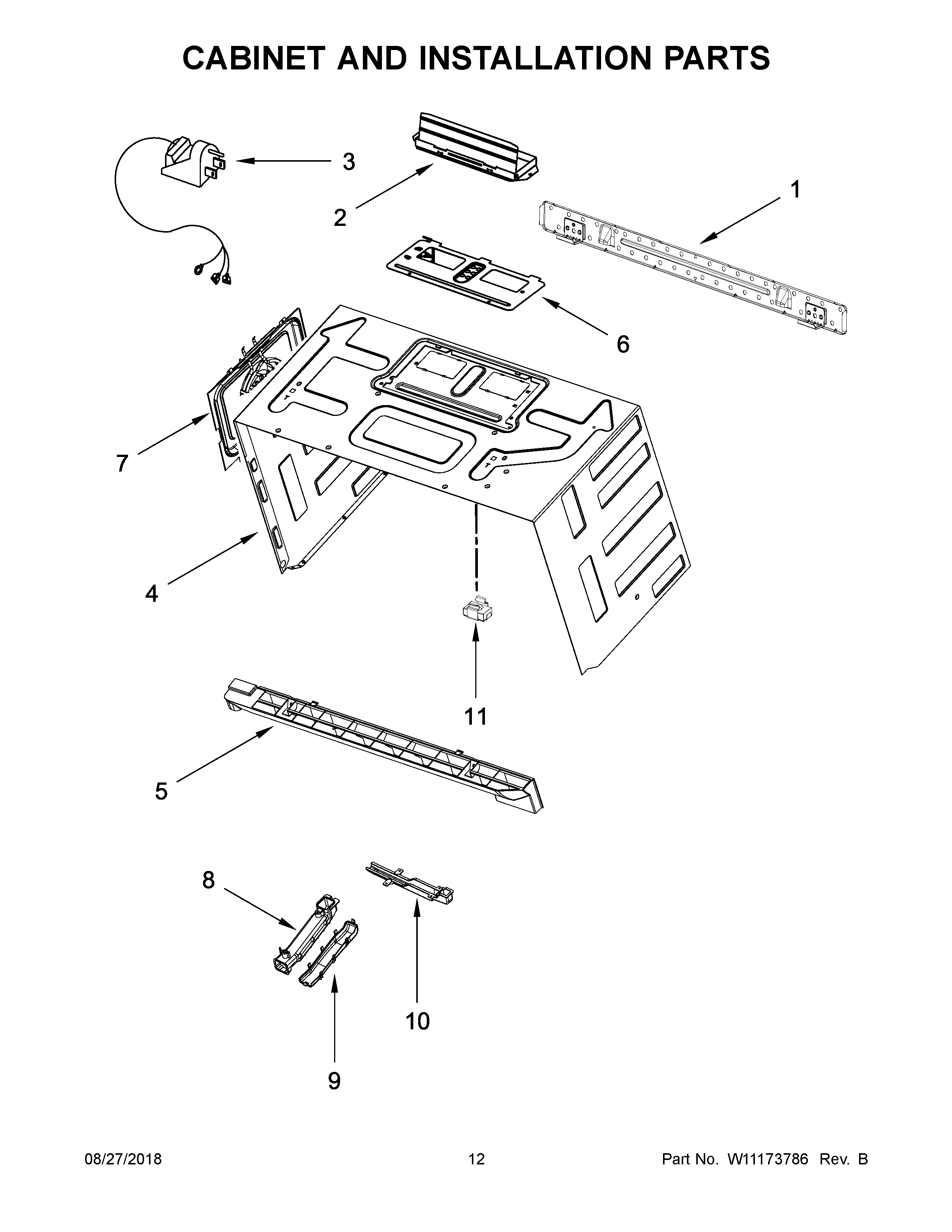

YWMH76719CS2 07 – CABINET AND INSTALLATION PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10190018 Whirlpool Microwave Template
NI	W10508741 Whirlpool Microwave Wire Harness
NI	W10539840 Whirlpool Microwave Wire Harness
NI	W10571450 Whirlpool Plate
NI	W10571451 Whirlpool Plate
NI	W10821385 Whirlpool Hardware Kit
NI	W10834331 Whirlpool Microwave Wire Harness
NI	W10913752 Whirlpool Microwave Wire Harness
NI	MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & SPANISH)
NI	INSULATION, BOTTOM
NI	WP8169704 Whirlpool Screw
1	W11025649 Whirlpool Microwave Mounting Plate
2	W10843943 Whirlpool Microwave Vent Damper
3	W10708076 Whirlpool Microwave Power Cord
4	W11446920 Whirlpool Microwave Cab Wrapper
4A	W10818229 Whirlpool Microwave Cabinet Wrapper
5	W10701700 Whirlpool Microwave Vent Grill
5A	W10701701 Whirlpool Microwave Vent Grille
6	COVER, FAN MOTOR
7	ASSEMBLY, CONVECTION MOTOR AND FAN
8	W10740434 Whirlpool Microwave Air Duct
9	W10533489 Whirlpool Microwave Air Duct
10	W10570212 Whirlpool Microwave Air Duct
11	W10596040 Whirlpool Microwave Nut
