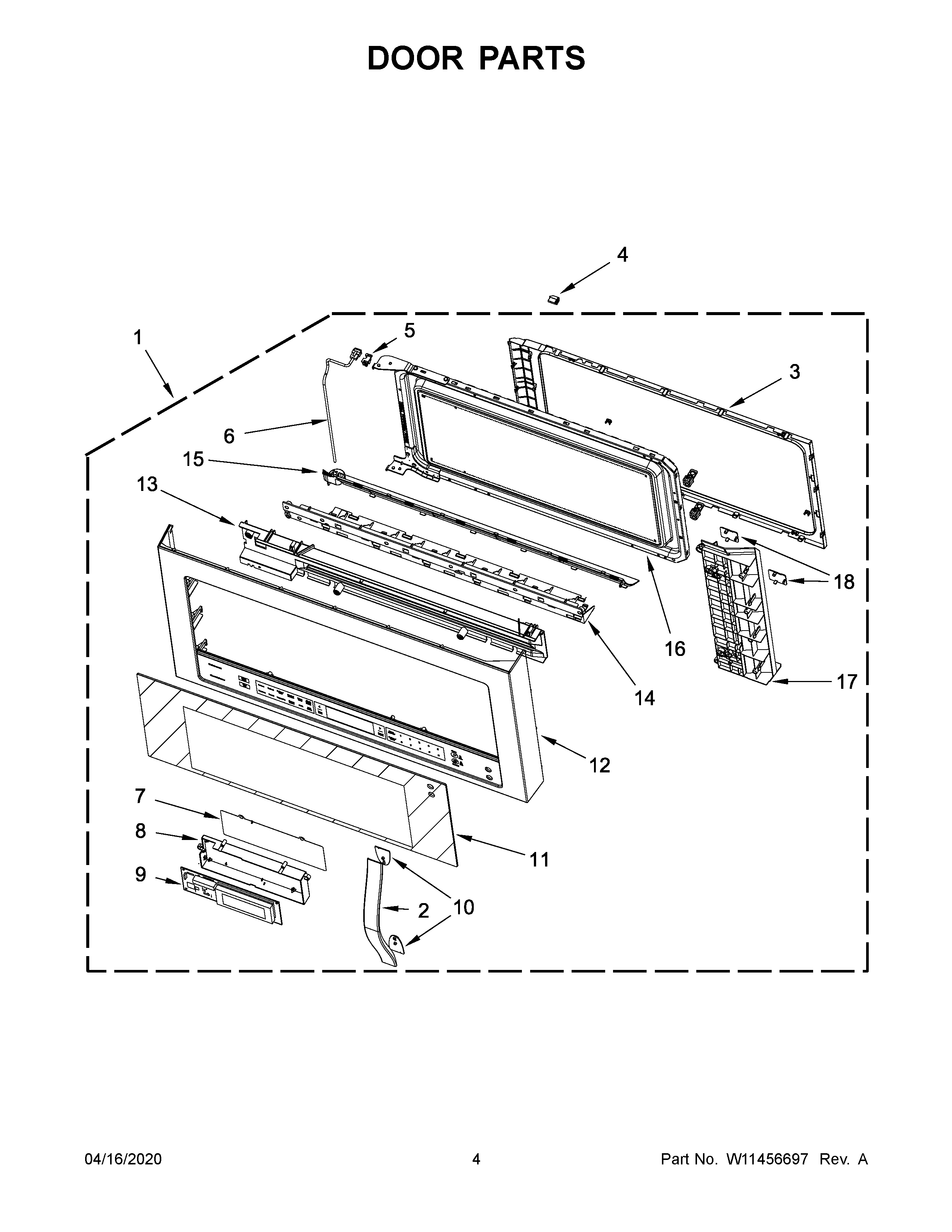

YWMH76719CS4 03 – DOOR PARTS

Products

Position	Product
1A	DOOR, COMPLETE (BLACK)
1	DOOR, COMPLETE (WHITE)
1B	W10893446 Whirlpool Microwave Door
2B	W10478162 Whirlpool Microwave Door Handle
2A	W10571332 Whirlpool Microwave Door Handle
2	W10571333 Whirlpool Microwave Door Handle
3	W10648086 Whirlpool Microwave Choke Cover
4	W10643448 Whirlpool Microwave Clip
5	HOLDER, DOOR CABLE
6	CABLE, DOOR USER INTERFACE
7	W10540298 Whirlpool Cover Assembly
8	W10770970 Whirlpool Holder
9	PCBA, USER INTERFACE
10	W10478213 Whirlpool Microwave Cushion
11A	WPW10478721 Whirlpool Microwave Door Glass
11	WPW10478716 Whirlpool Door Glass
11B	GLASS, OUTER (STAINLESS)
12B	W10867015 Whirlpool Microwave Outer Door
12	ASSEMBLY, DOOR FRAME (WHITE)
12A	ASSEMBLY, DOOR FRAME (BLACK)
13	W10617743 Whirlpool Microwave Cover
14	W10476546 Whirlpool Microwave Support Bracket
15	W10570992 Whirlpool Microwave Door Trim
15A	W10476550 Whirlpool Microwave Door Trim
16	W11045518 Whirlpool Microwave Inner Door
17A	W11699920 Whirlpool Microwave Support Bracket
17	W10734944 Whirlpool Microwave Support Bracket
18	W10571119 Whirlpool Plate Cover
18A	W10478657 Whirlpool Microwave Cover
