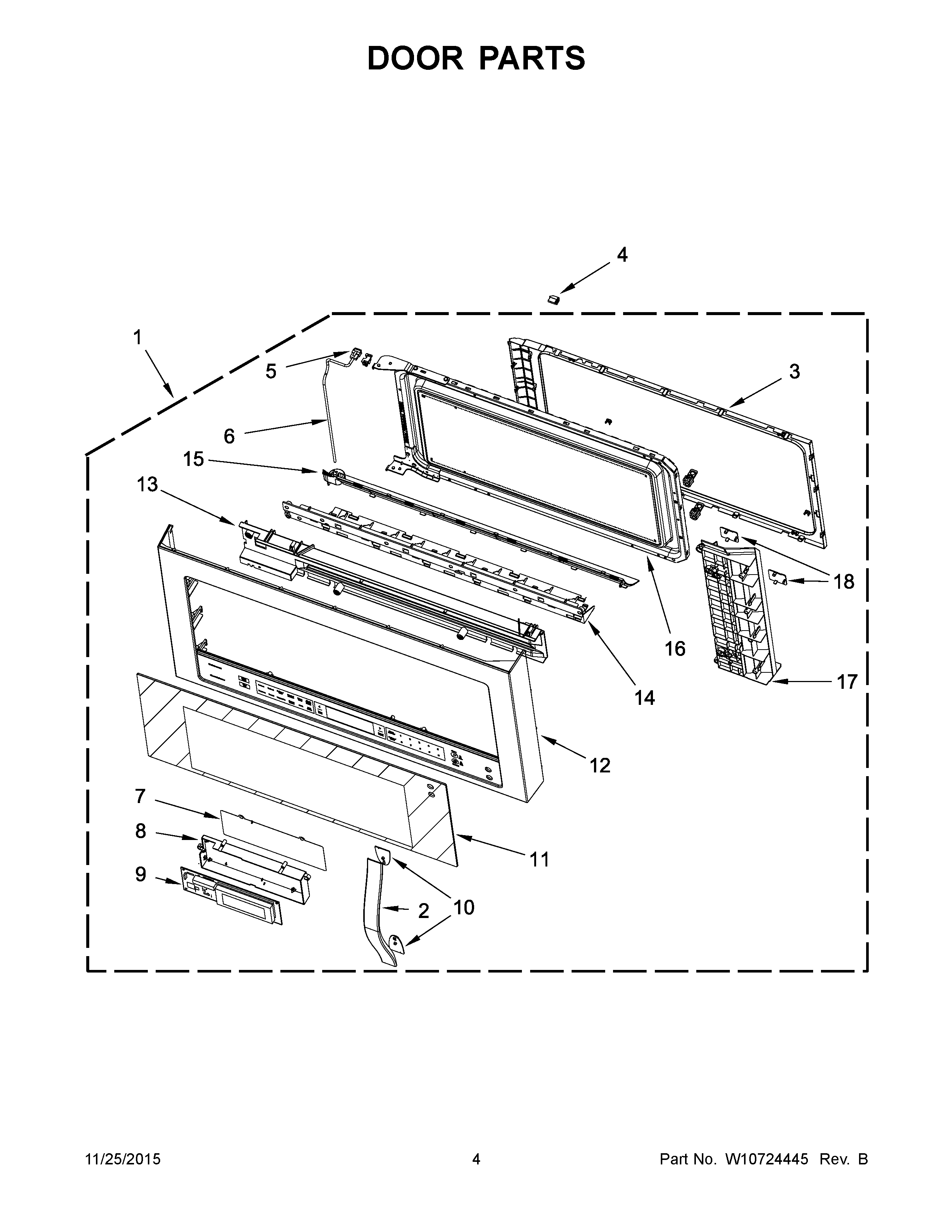

YWMH76719CW0 03 – DOOR PARTS

YWMH76719CW0 03 – DOOR PARTS

Written by

in

YWMH76719CW0 03 – DOOR PARTS

Products

PositionProduct
1AW10860350 Whirlpool Microwave Door
1W10860349 Whirlpool Microwave Door
1BDOOR, COMPLETE (STAINLESS)
2W10571333 Whirlpool Microwave Door Handle
2AW10571332 Whirlpool Microwave Door Handle
2BW10478162 Whirlpool Microwave Door Handle
3W10648086 Whirlpool Microwave Choke Cover
4W10643448 Whirlpool Microwave Clip
5W10478659 Whirlpool Microwave Wire Holder
6W10508745 Whirlpool Microwave Wire Harness
7W10540298 Whirlpool Cover Assembly
8W10478216 Whirlpool Holder Assembly
9CONTROL
10W10478213 Whirlpool Microwave Cushion
11BGLASS, OUTER (STAINLESS)
11AWPW10478721 Whirlpool Microwave Door Glass
11WPW10478716 Whirlpool Door Glass
12BW10579828 Whirlpool Microwave Outer Door
12W10648087 Whirlpool Microwave Outer Door
12AW10648088 Whirlpool Door Outer Assembly
13W10617743 Whirlpool Microwave Cover
14W10476546 Whirlpool Microwave Support Bracket
15AW10476550 Whirlpool Microwave Door Trim
15W10570992 Whirlpool Microwave Door Trim
16W10568846 Whirlpool Microwave Inner Door
17W10571118 Whirlpool Microwave Support Bracket
17AW10478656 Whirlpool Microwave Support Bracket
18AW10478657 Whirlpool Microwave Cover
18W10571119 Whirlpool Plate Cover
