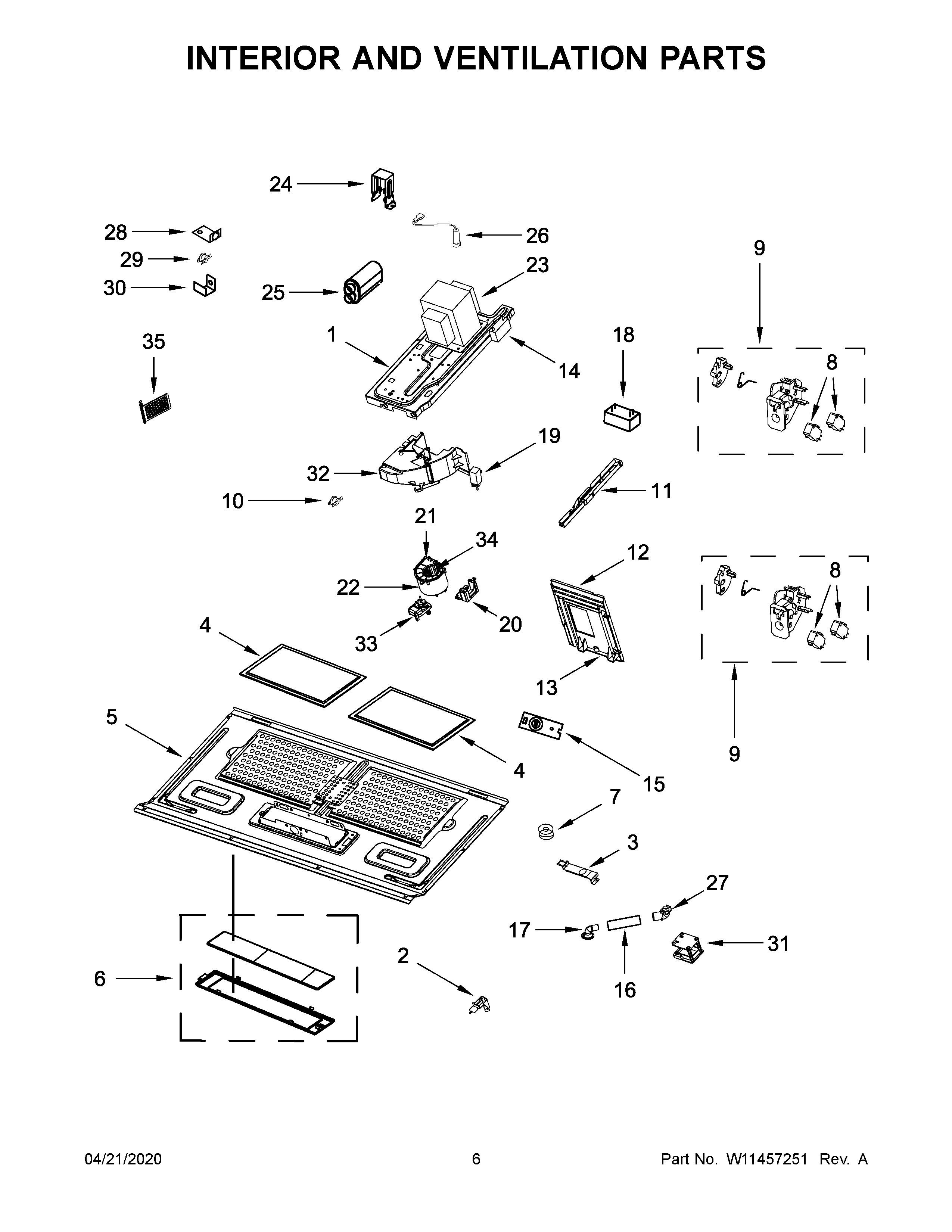

YWMH78019HZ2 04 – INTERIOR AND VENTILATION PARTS

YWMH78019HZ2 04 – INTERIOR AND VENTILATION PARTS

Written by

in

YWMH78019HZ2 04 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1W11042336 Whirlpool Base
2W10709921 Whirlpool Halogen Light Bulb
3W10525853 Whirlpool Microwave Sensor Bracket
4W10535950 Whirlpool Microwave Grease Filter
5W10571126 Whirlpool Microwave Base
6COVR-LIGHT
7W10510237 Whirlpool Microwave Spacer
8CABINET (NOT A SERVICEABLE PART)
9INTERLOCK
10W11051821 Whirlpool Microwave Thermostat Fix
11W10540718 Whirlpool Microwave Mounting Bracket
12W10571453 Whirlpool Microwave Plate
13W10533107 Whirlpool Microwave Deflector Assembly
14W11405831 Whirlpool Microwave Capacitor
15W10536989 Whirlpool Microwave Thermistor
16W10510235 Whirlpool Microwave Shield
17W10510234 Whirlpool Microwave Shield
18W11259891 Whirlpool Resistor
19W10458325 Whirlpool Microwave Actuator
20W10533480 Whirlpool Microwave Holder
21W10533502 Whirlpool Microwave Fan Cover
22W10533501 Whirlpool Microwave Housing
23W11371718 Whirlpool Microwave Transformer
24W10633730 Whirlpool Microwave Control Bracket
25W10345331 Whirlpool Microwave Capacitor
26W11256462 Whirlpool Microwave Diode
27W10510233 Whirlpool Microwave Shield
28W10259248 Whirlpool Microwave Cover Assembly
29W11268275 Whirlpool Microwave Thermostat
308206223 Whirlpool Clip
31W11416049 Whirlpool Microwave Electronic Control Board
32W10631701 Whirlpool Microwave Air Guide
33W11230994 Whirlpool Microwave Fan Motor
34W10533503 Whirlpool Microwave Fan Wheel
35W10756358 Whirlpool Microwave Valve
