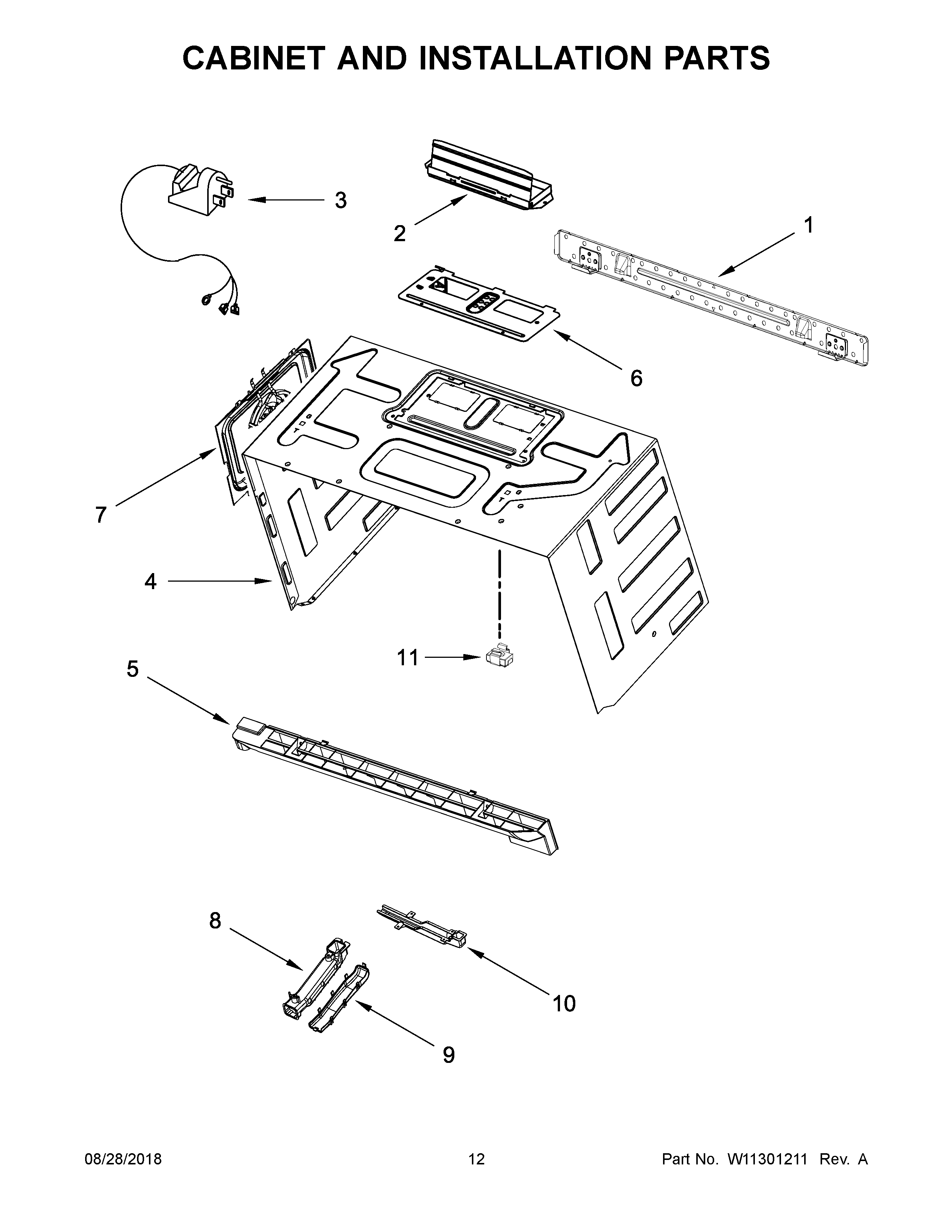

YWMHA9019HN1 07 – CABINET AND INSTALLATION PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10539840 Whirlpool Microwave Wire Harness
NI	W10571450 Whirlpool Plate
NI	W10571451 Whirlpool Plate
NI	W10821385 Whirlpool Hardware Kit
NI	W10834331 Whirlpool Microwave Wire Harness
NI	MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & SPANISH)
NI	W10571454 Whirlpool Plate Assembly
NI	W10902490 Whirlpool Microwave Wire Harness
NI	W10508741 Whirlpool Microwave Wire Harness
NI	W10190018 Whirlpool Microwave Template
NI	W11302360 Whirlpool Microwave Wire Harness
NI	WP8169704 Whirlpool Screw
1	W11025649 Whirlpool Microwave Mounting Plate
2	W10843943 Whirlpool Microwave Vent Damper
3	W10708076 Whirlpool Microwave Power Cord
4	W11662678 Whirlpool Cabinet Wrapper
5	W10701701 Whirlpool Microwave Vent Grille
6	COVER, FAN MOTOR
7	ASSEMBLY, CONVECTION MOTOR AND FAN
8	W10740434 Whirlpool Microwave Air Duct
9	W10533489 Whirlpool Microwave Air Duct
10	W10570212 Whirlpool Microwave Air Duct
11	W11122643 Whirlpool Nut
