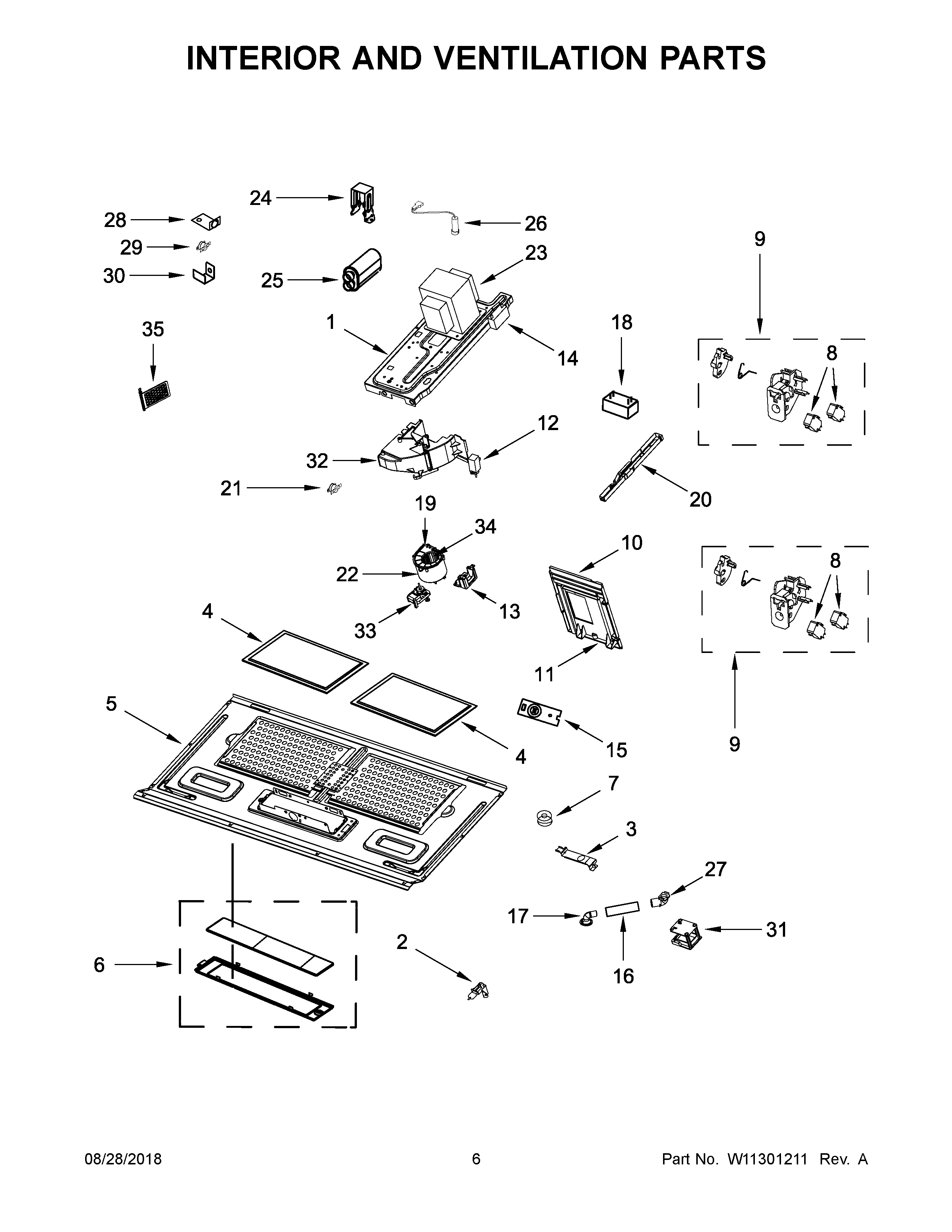

YWMHA9019HV1 04 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	W11042336 Whirlpool Base
2	W10709921 Whirlpool Halogen Light Bulb
3	W10525853 Whirlpool Microwave Sensor Bracket
4	W10535950 Whirlpool Microwave Grease Filter
5	W10571126 Whirlpool Microwave Base
6	COVR-LIGHT
7	W10510237 Whirlpool Microwave Spacer
8	CABINET (NOT A SERVICEABLE PART)
9	INTERLOCK
10	W10571453 Whirlpool Microwave Plate
11	W10533107 Whirlpool Microwave Deflector Assembly
12	W10458325 Whirlpool Microwave Actuator
13	W10533480 Whirlpool Microwave Holder
14	W11405831 Whirlpool Microwave Capacitor
15	W10536989 Whirlpool Microwave Thermistor
16	W10510235 Whirlpool Microwave Shield
17	W10510234 Whirlpool Microwave Shield
18	W10568805 Whirlpool Microwave Resistor
19	W10533502 Whirlpool Microwave Fan Cover
20	W10540718 Whirlpool Microwave Mounting Bracket
21	W11051821 Whirlpool Microwave Thermostat Fix
22	W10533501 Whirlpool Microwave Housing
23	W11371718 Whirlpool Microwave Transformer
24	W10633730 Whirlpool Microwave Control Bracket
25	W10345331 Whirlpool Microwave Capacitor
26	W11256462 Whirlpool Microwave Diode
27	W10510233 Whirlpool Microwave Shield
28	W10259248 Whirlpool Microwave Cover Assembly
29	W10599629 Whirlpool Microwave Thermostat Fix
30	8206223 Whirlpool Clip
31	W11416049 Whirlpool Microwave Electronic Control Board
32	W10631701 Whirlpool Microwave Air Guide
33	W11230994 Whirlpool Microwave Fan Motor
34	W10533503 Whirlpool Microwave Fan Wheel
35	W10533486 Whirlpool Microwave Valve
