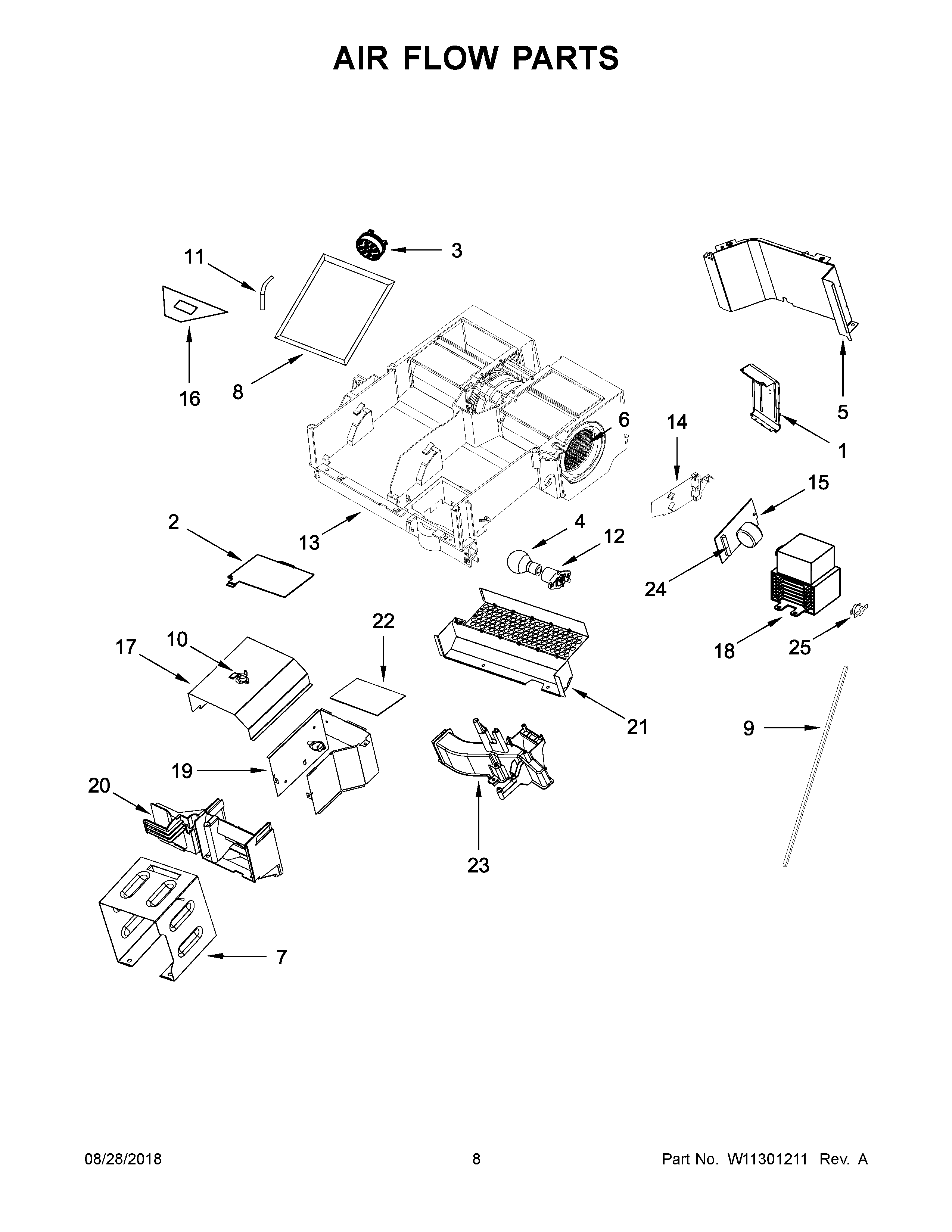

YWMHA9019HZ1 05 – AIR FLOW PARTS

Products

Position	Product
1	DEFLECTOR, AIR
2	8206382 Whirlpool Microwave Light Cover
3	W10557536 Whirlpool Microwave Sensor
4	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
5	W10869224 Whirlpool Deflector
6	W11613599 Whirlpool Microwave Fan Motor
7	W10556824 Whirlpool Microwave Housing
8	8206230A Whirlpool Microwave Charcoal Filter
9	SEAL, FOAM
10	W11661583 Whirlpool Thermostat Fix
11	W10557537 Whirlpool Microwave Thermistor
12	WPW10210878 Whirlpool Microwave LMP Housing
13	W10632409 Whirlpool Microwave Air Duct
14	W10869222 Whirlpool Microwave Air Duct
15	WPW10531156 Whirlpool Microwave Filter
16	W10810142 Whirlpool Relief Strain
17	OUTLET, CAVITY (BACK)
18	W11230995 Whirlpool Microwave Magnetron
19	W10533483 Whirlpool Microwave Air Guide
20	W10570209 Whirlpool Microwave Air Guide
21	W10629803 Whirlpool Microwave Side Cover
22	W10531724 Whirlpool Microwave Lamp Glass
23	W10758886 Whirlpool Microwave Air Guide
24	FUSE-THRML
25	W11553234 Whirlpool Microwave Magnetron Thermostat 145C/105C
