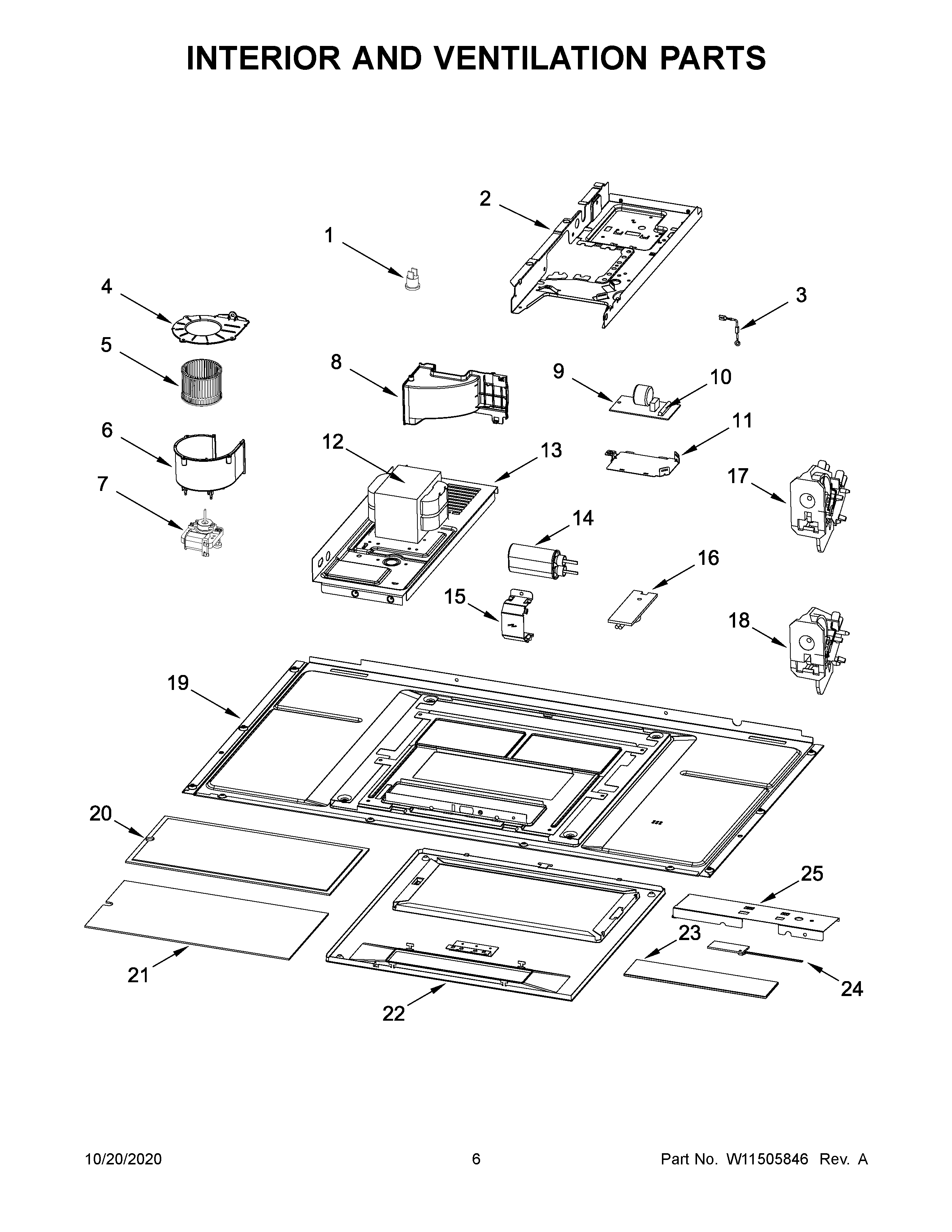

YWML35011KS0 04 – INTERIOR AND VENTILATION PARTS

YWML35011KS0 04 – INTERIOR AND VENTILATION PARTS

Written by

in

YWML35011KS0 04 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1W11378281 Whirlpool Fix Thermostat
2PLATE, CHASSIS
3W11256462 Whirlpool Microwave Diode
4COVER, COOLING FAN
5W11088354 Whirlpool Microwave Fan Wheel
6W11213349 Whirlpool Microwave Housing
7MOTOR, COOLING FAN
8W11088358 Whirlpool Microwave Air Guide
9WPW10531156 Whirlpool Microwave Filter
10FUSE-THRML
11W10313274 Whirlpool Microwave Mounting Bracket
12W11440448 Whirlpool Microwave Transformer
13CHASSIS, TRANSFORMER
14W11213318 Whirlpool Microwave Capacitor MG
15W11095808 Whirlpool Compactor Bracket
16W10536989 Whirlpool Microwave Thermistor
17W11551558 Whirlpool Microwave Upper Interlock Assembly TITAN187
18W11443129 Whirlpool Interlock Assembly
19PLATE, BOTTOM
20W11383755 Whirlpool Microwave Filter
21W11443141 Whirlpool Filter
22COVER, LIGHTING GLASS
23WPW10210875 Whirlpool Microwave Lamp Glass Cover
24W11443139 Whirlpool Microwave Light
25W11086295 Whirlpool Microwave Reflector
