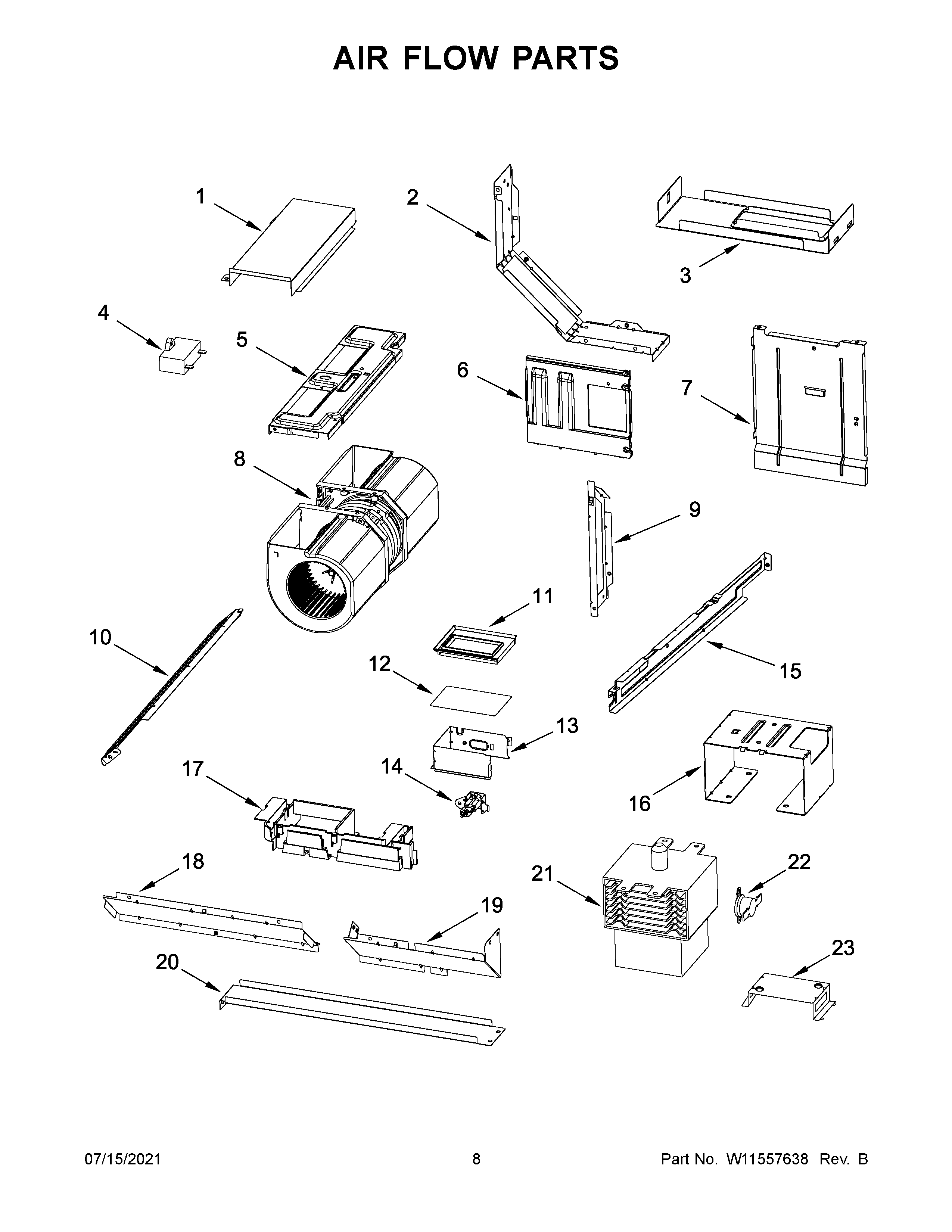

YWML35011KS01 05 – AIR FLOW PARTSadmin2025-04-26T11:14:22+00:00YWML35011KS01 05 – AIR FLOW PARTS
Products
| Position | Product |
|---|
| 1 | W11108230 Whirlpool Microwave Side Cover |
| 2 | AIR DEFLECTOR, RIGHT |
| 3 | W11096347 Whirlpool Spacer |
| 4 | W11405831 Whirlpool Microwave Capacitor |
| 5 | CHASSIS, FAN |
| 6 | W11095794 Whirlpool Deflector Assembly |
| 7 | W11095804 Whirlpool Deflector Assembly |
| 8 | W11373008 Whirlpool Microwave Fan Motor |
| 9 | HOOD DEFLECTOR, LEFT |
| 10 | AIR GUIDE, LEFT |
| 11 | SEAL, LIGHTING |
| 12 | FOIL, LAMP |
| 13 | W11086300 Whirlpool Microwave Reflector |
| 14 | W11409090 Whirlpool Microwave Light Bulb |
| 15 | DIVIDER, AIR |
| 16 | HOUSING, TRANFORMER |
| 17 | HOLDER, WIRE |
| 18 | CHANNEL, HOOD BACK |
| 19 | AIR GUIDE, RIGHT |
| 20 | AIR GUIDE, BOTTOM |
| 21 | W11652048 Whirlpool Magnetron |
| 22 | W11443128 Whirlpool Thermostat |
| 23 | SHIELD PLATE, WAVE GUIDE |
