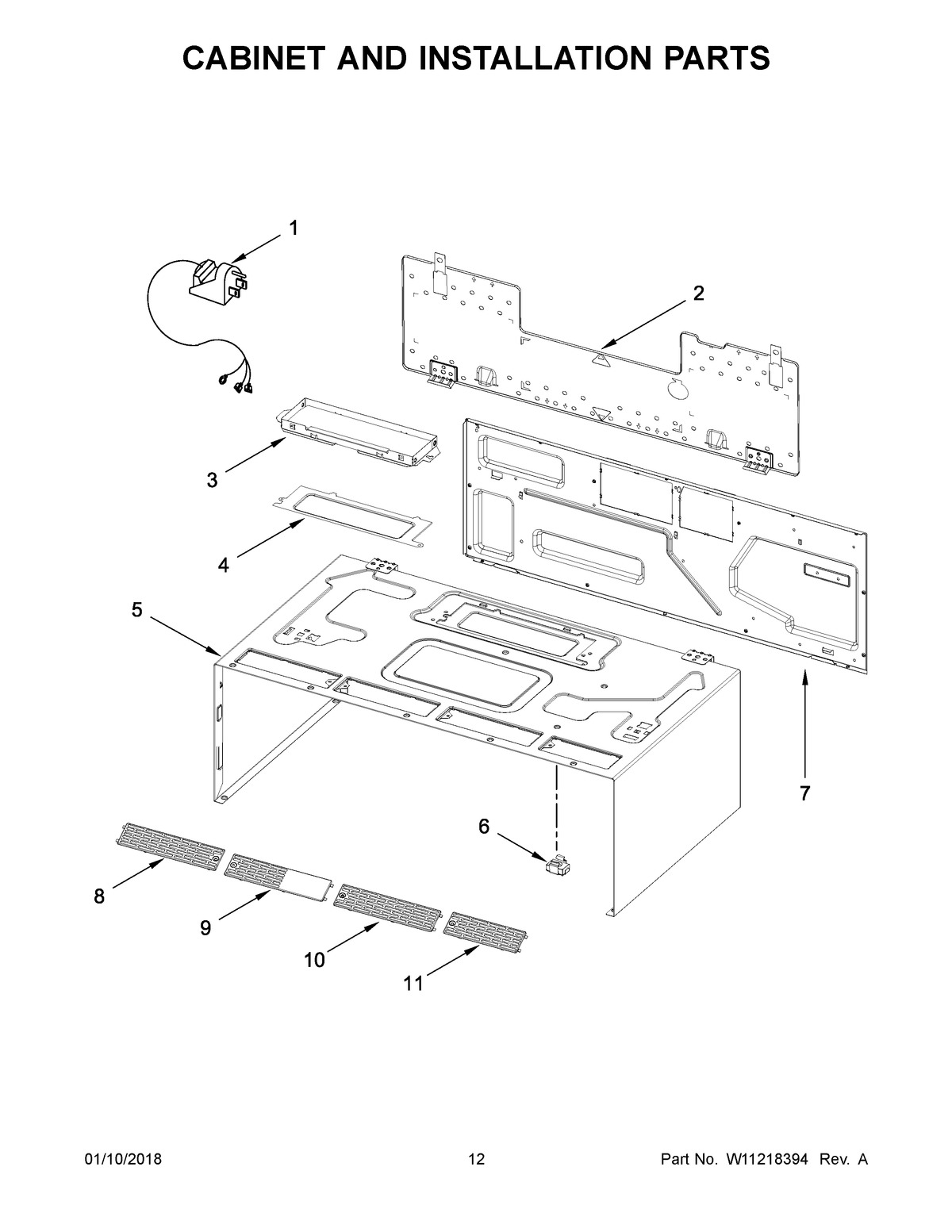

YWML55011HB0 07 – CABINET AND INSTALLATION PARTS

YWML55011HB0 07 – CABINET AND INSTALLATION PARTS

Written by

in

YWML55011HB0 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIW10914685 Whirlpool Microwave Wire Harness
NIW10916212 Whirlpool Microwave Wire Harness
NIW11101699 Whirlpool Microwave Wire Harness
NIW11213883 Whirlpool Microwave Wire Harness
NIW11213885 Whirlpool Microwave Wire Harness
NIW11322425 Whirlpool Wire Harness
NIMISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE
NIW10821385 Whirlpool Hardware Kit
1CORD, POWER
2W11368557 Whirlpool Microwave Mounting Bracket
3W10843943 Whirlpool Microwave Vent Damper
4COVER, EXHAUST (WHITE)
4ACOVER, EXHAUST (BLACK)
5W11446922 Whirlpool Cabinet Wrapper
5AW11446923 Whirlpool Microwave Cabinet Wrapper
6W11122643 Whirlpool Nut
7W11086259 Whirlpool Microwave Plate
8AW11397086 Whirlpool Microwave Vent Grill
9W11164786 Whirlpool Microwave Vent Grille
9AW11095781 Whirlpool Microwave Vent Grille
10AW11086309 Whirlpool Microwave Vent Grille
11AGRILLE, VENT (SHORT) (BLACK)
11W11164816 Whirlpool Microwave Vent Grille
