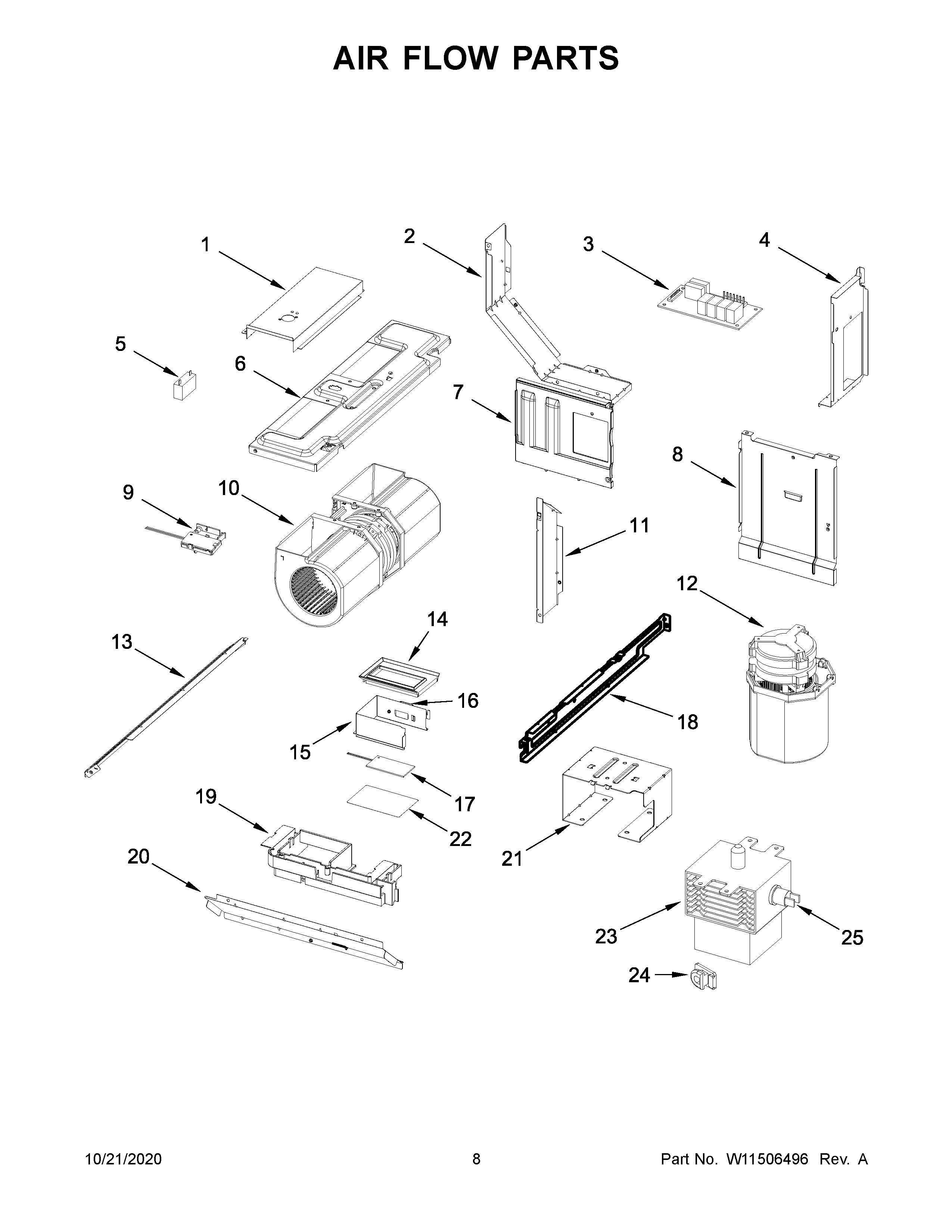

YWML55011HB6 05 – AIR FLOW PARTS

Products

Position	Product
1	W11108230 Whirlpool Microwave Side Cover
2	AIR DEFLECTOR, RIGHT
3	W11443149-includeCORE Whirlpool W11443149 Microwave Electronic Control Board
4	OUTLET DEFLECTOR, RIGHT
5	W11405832 Whirlpool Microwave Capacitor
6	CHASSIS, FAN
7	W11095794 Whirlpool Deflector Assembly
8	W11095804 Whirlpool Deflector Assembly
9	W11098921 Whirlpool Microwave Light Cover
10	W11712433 Whirlpool Fan Motor
11	HOOD DEFLECTOR, BACK
12	W11213353 Whirlpool Microwave Fan Motor
13	AIR GUIDE, LEFT
14	SEAL, LIGHTING
15	W11086300 Whirlpool Microwave Reflector
16	HOLDER, LAMP
17	W11443139 Whirlpool Microwave Light
18	DIVIDER, AIR
19	HOLDER, WIRE
20	CHANNEL, HOOD BACK
21	W11127425 Whirlpool Microwave Housing
22	FOIL, LAMP
23	W11652048 Whirlpool Magnetron
24	W11126543 Whirlpool Microwave Foam Seal
25	W11125676 Whirlpool Microwave Thermostat
