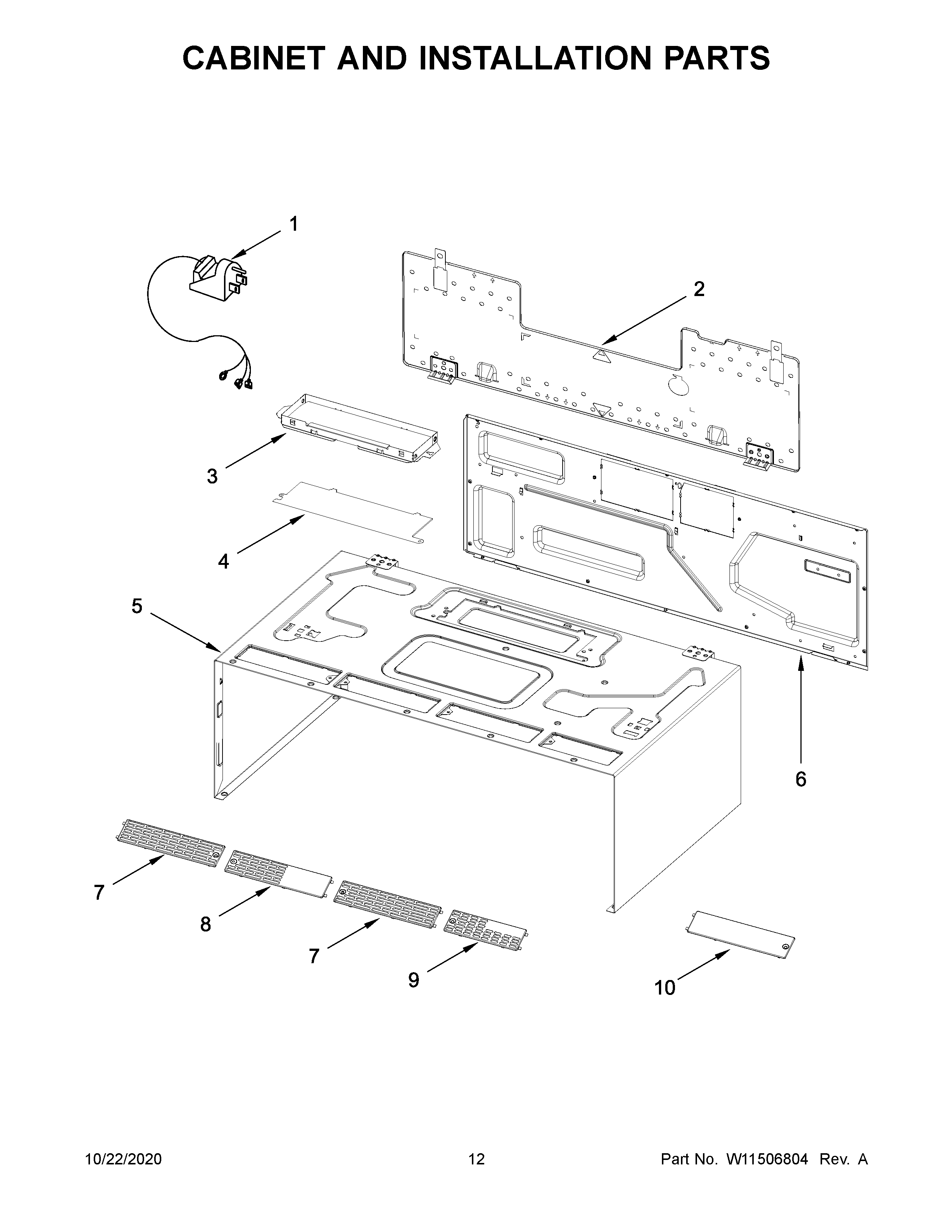

YWML55011HB7 07 – CABINET AND INSTALLATION PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11421368 Whirlpool Wire Harness
NI	W11266688 Whirlpool Microwave Wire Harness
NI	MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE
NI	W11322425 Whirlpool Wire Harness
NI	W11213885 Whirlpool Microwave Wire Harness
NI	W11213883 Whirlpool Microwave Wire Harness
NI	W11479911 Whirlpool Wire Harness
NI	W10821385 Whirlpool Hardware Kit
1	CORD, POWER
2	W11368557 Whirlpool Microwave Mounting Bracket
3	W10843943 Whirlpool Microwave Vent Damper
4	COVER, EXHAUST (WHITE)
4A	COVER, EXHAUST (BLACK)
5A	W11446923 Whirlpool Microwave Cabinet Wrapper
5	W11446922 Whirlpool Cabinet Wrapper
5B	W11493413 Whirlpool Microwave Cabinet Wrapper
6	W11360416 Whirlpool Plate
7A	W11086309 Whirlpool Microwave Vent Grille
8A	W11095781 Whirlpool Microwave Vent Grille
8	W11164786 Whirlpool Microwave Vent Grille
9B	W11086310 Whirlpool Microwave Vent Grill
9A	GRILLE, VENT (SHORT) (BLACK)
9	W11164816 Whirlpool Microwave Vent Grille
10B	W11397086 Whirlpool Microwave Vent Grill
