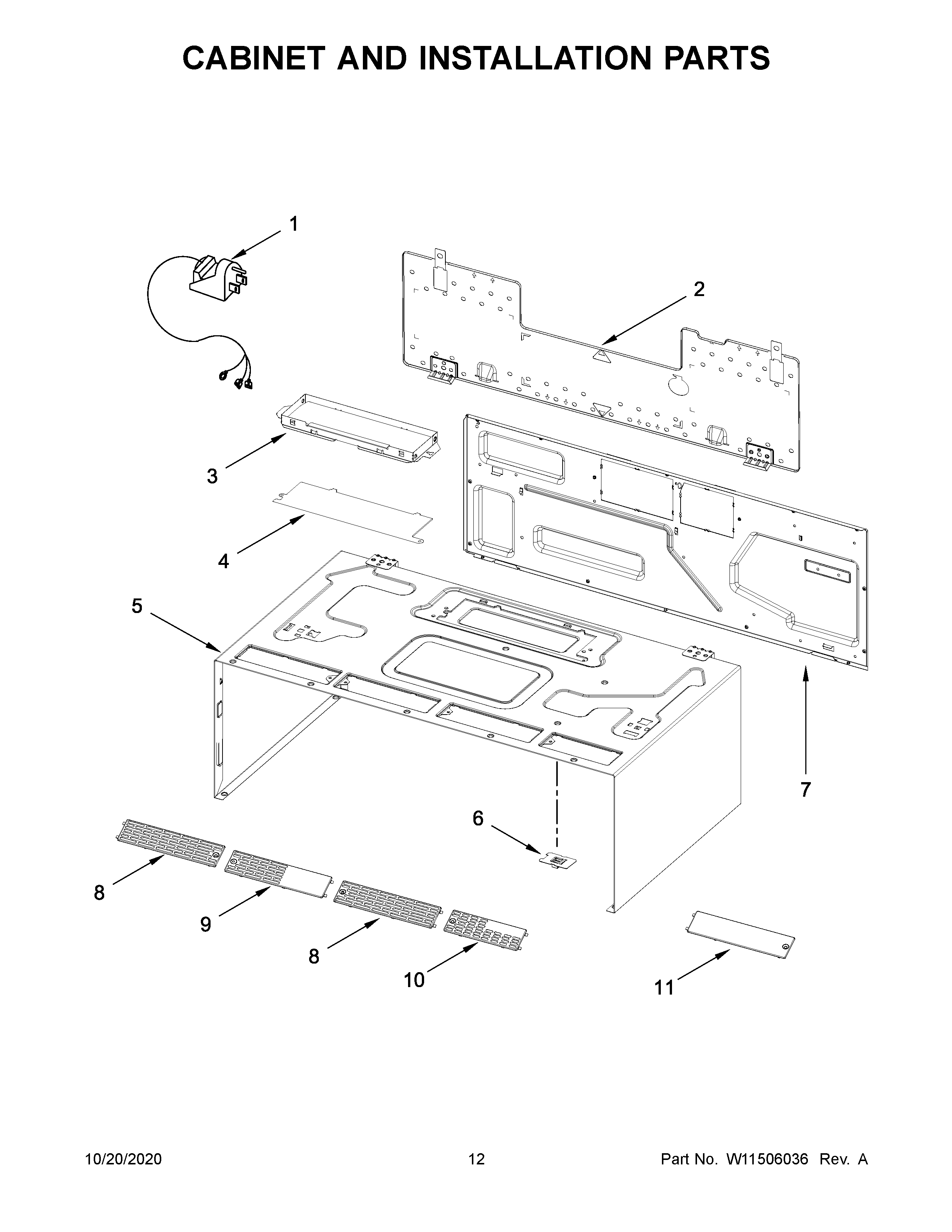

YWML55011HS5 07 – CABINET AND INSTALLATION PARTS

YWML55011HS5 07 – CABINET AND INSTALLATION PARTS

Written by

in

YWML55011HS5 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11350917 Whirlpool Microwave Wire Harness
NIW11266688 Whirlpool Microwave Wire Harness
NIMISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE
NIW11322425 Whirlpool Wire Harness
NIW11213885 Whirlpool Microwave Wire Harness
NIW11213883 Whirlpool Microwave Wire Harness
NIW11404326 Whirlpool Microwave Wire Harness
NIW10821385 Whirlpool Hardware Kit
1CORD, POWER
2W11368557 Whirlpool Microwave Mounting Bracket
3W10843943 Whirlpool Microwave Vent Damper
4COVER, EXHAUST (WHITE)
4ACOVER, EXHAUST (BLACK)
5AW11446923 Whirlpool Microwave Cabinet Wrapper
5W11446922 Whirlpool Cabinet Wrapper
5BW11493413 Whirlpool Microwave Cabinet Wrapper
6W11122643 Whirlpool Nut
7W11360416 Whirlpool Plate
8AW11086309 Whirlpool Microwave Vent Grille
9AW11095781 Whirlpool Microwave Vent Grille
9W11164786 Whirlpool Microwave Vent Grille
10BW11086310 Whirlpool Microwave Vent Grill
10AGRILLE, VENT (SHORT) (BLACK)
10W11164816 Whirlpool Microwave Vent Grille
11BW11397086 Whirlpool Microwave Vent Grill
