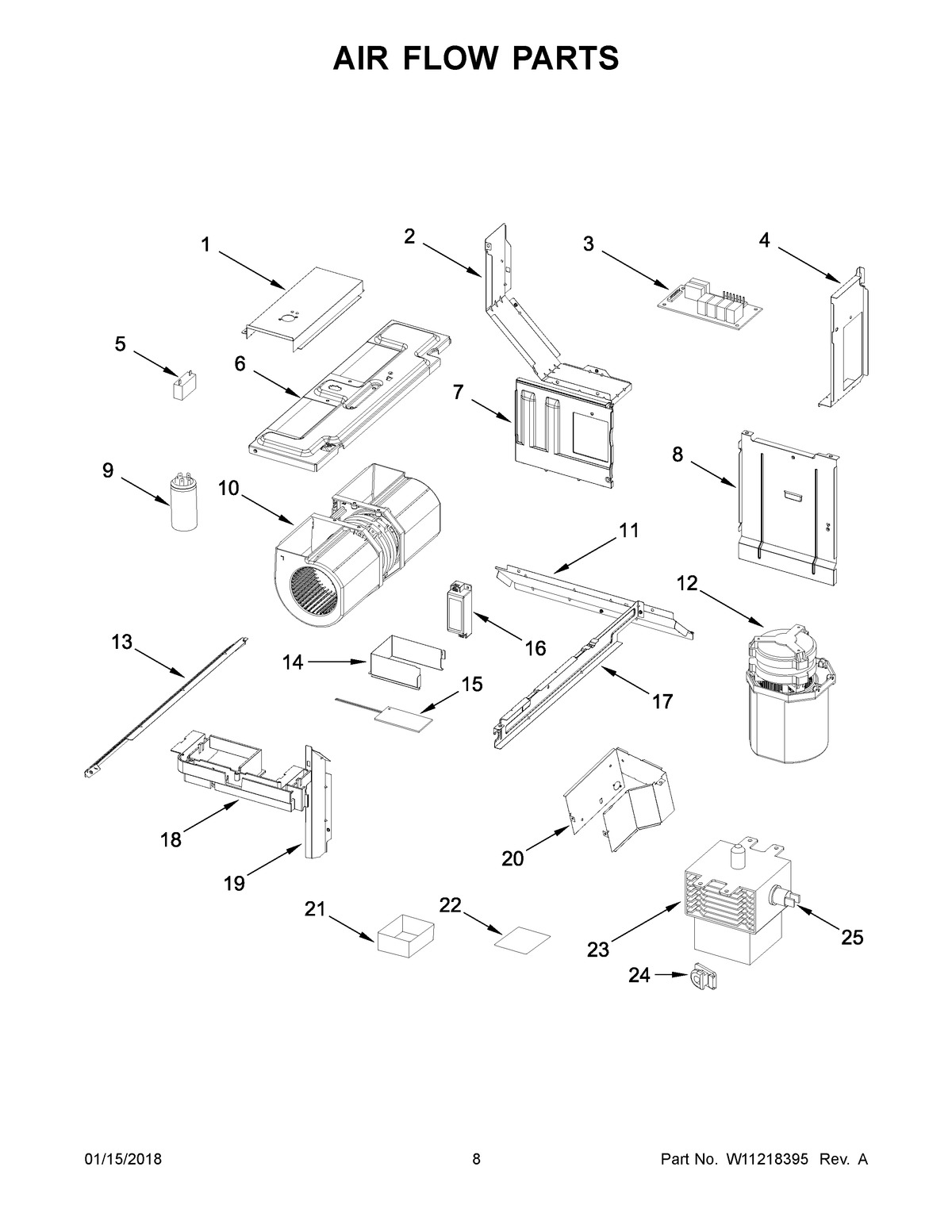

YWML75011HN0 05 – AIR FLOW PARTSadmin2025-04-26T11:15:07+00:00YWML75011HN0 05 – AIR FLOW PARTS
Products
| Position | Product |
|---|
| 1 | OUTLET, CAVITY (BACK) |
| 2 | AIR DEFLECTOR, RIGHT |
| 3 | W11133802 Whirlpool Microwave Electronic Control Board |
| 4 | OUTLET DEFLECTOR, RIGHT |
| 5 | W11405832 Whirlpool Microwave Capacitor |
| 6 | CHASSIS, FAN |
| 7 | W11095794 Whirlpool Deflector Assembly |
| 8 | W11095804 Whirlpool Deflector Assembly |
| 9 | W10557536 Whirlpool Microwave Sensor |
| 10 | W11712433 Whirlpool Fan Motor |
| 11 | HOOD DEFLECTOR, BACK |
| 12 | W11213353 Whirlpool Microwave Fan Motor |
| 13 | AIR GUIDE, LEFT |
| 14 | W11086300 Whirlpool Microwave Reflector |
| 15 | BOARD, LED LAMP |
| 16 | W11117964 Whirlpool Microwave Transformer |
| 17 | DIVIDER, AIR |
| 18 | HOLDER, WIRE |
| 19 | CHANNEL, HOOD BACK |
| 20 | W11127425 Whirlpool Microwave Housing |
| 21 | SEAL, LIGHTING |
| 22 | FOIL, LAMP |
| 23 | W11402082 Whirlpool Microwave Magnetron |
| 24 | W11126543 Whirlpool Microwave Foam Seal |
| 25 | W11125676 Whirlpool Microwave Thermostat |
