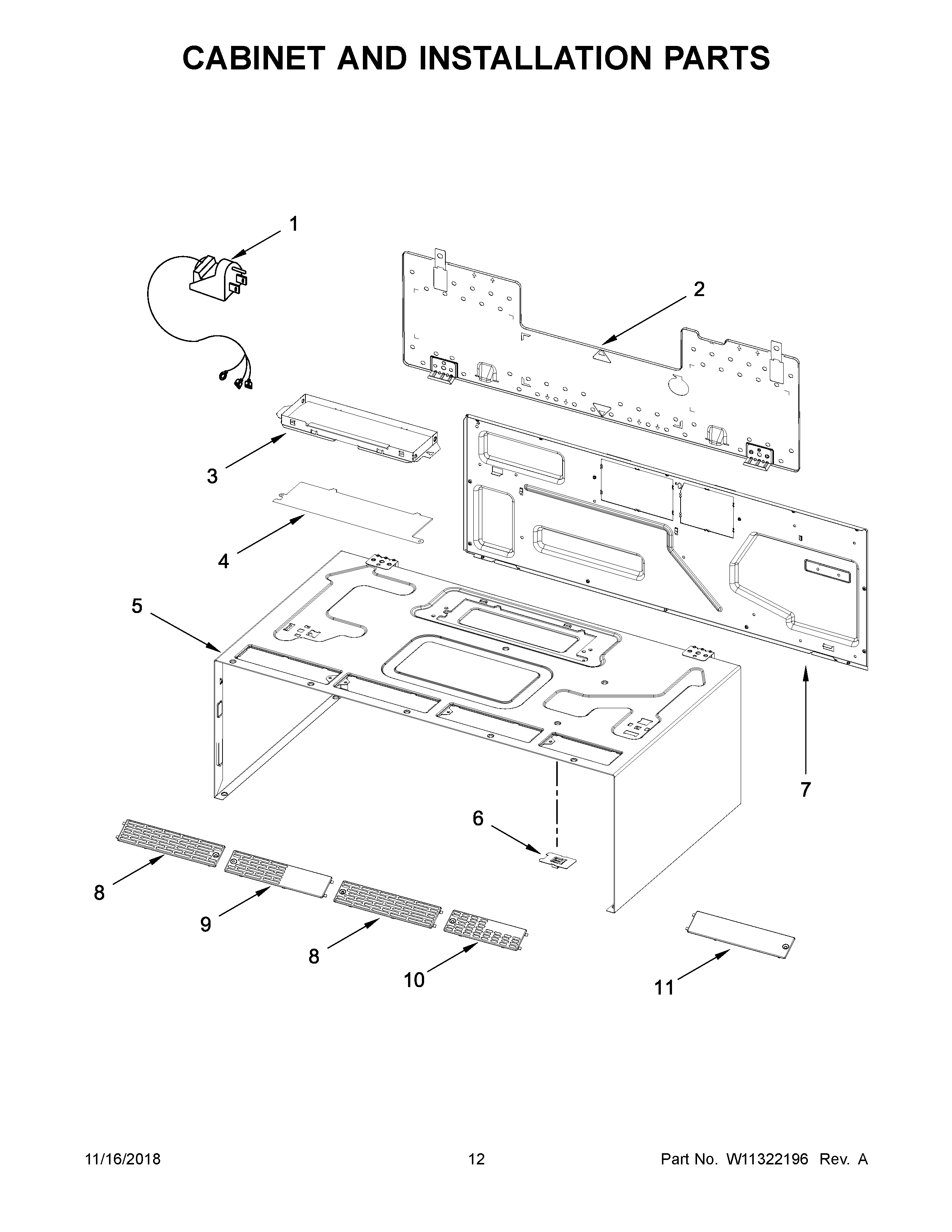

YWML75011HN4 07 – CABINET AND INSTALLATION PARTSadmin2025-04-26T11:13:42+00:00YWML75011HN4 07 – CABINET AND INSTALLATION PARTS
Products
| Position | Product |
|---|
| NI | MISCELLANEOUS PARTS, HARNESS, MAIN |
| NI | W11101699 Whirlpool Microwave Wire Harness |
| NI | W11213883 Whirlpool Microwave Wire Harness |
| NI | W11213885 Whirlpool Microwave Wire Harness |
| NI | W11322425 Whirlpool Wire Harness |
| NI | MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE |
| NI | MISCELLANEOUS PARTS, HARNESS, DOOR EJECT MOTOR |
| NI | W11266688 Whirlpool Microwave Wire Harness |
| NI | W10821385 Whirlpool Hardware Kit |
| 1 | CORD, POWER |
| 2 | W11368557 Whirlpool Microwave Mounting Bracket |
| 3 | W10843943 Whirlpool Microwave Vent Damper |
| 4B | COVER, EXHAUST (STAINLESS) |
| 4 | COVER, EXHAUST (WHITE) |
| 4A | COVER, EXHAUST (BLACK) |
| 5B | W11493413 Whirlpool Microwave Cabinet Wrapper |
| 5A | W11446923 Whirlpool Microwave Cabinet Wrapper |
| 5 | W11446922 Whirlpool Cabinet Wrapper |
| 5C | W11446949 Whirlpool Microwave Cabinet Wrapper |
| 5D | W11165448 Whirlpool Microwave Cabinet Wrapper |
| 6 | W11122643 Whirlpool Nut |
| 7 | W11086259 Whirlpool Microwave Plate |
| 8A | W11086309 Whirlpool Microwave Vent Grille |
| 9A | W11095781 Whirlpool Microwave Vent Grille |
| 9 | W11164786 Whirlpool Microwave Vent Grille |
| 10B | W11086310 Whirlpool Microwave Vent Grill |
| 10A | GRILLE, VENT (SHORT) (BLACK) |
| 10 | W11164816 Whirlpool Microwave Vent Grille |
| 11B | W11397086 Whirlpool Microwave Vent Grill |
