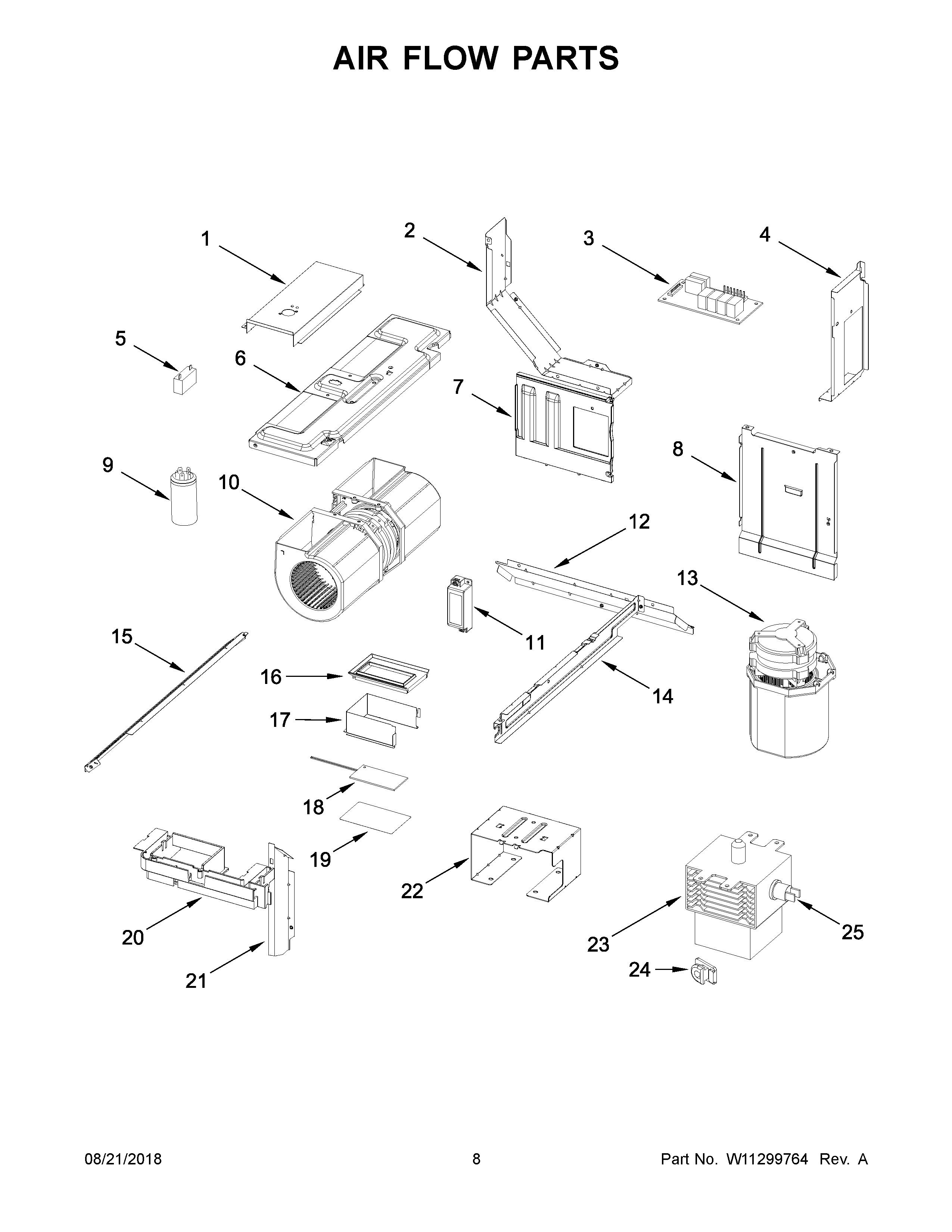

YWML75011HZ1 05 – AIR FLOW PARTS

Products

Position	Product
1	OUTLET, CAVITY (BACK)
2	AIR DEFLECTOR, RIGHT
3	W11133802 Whirlpool Microwave Electronic Control Board
4	OUTLET DEFLECTOR, RIGHT
5	W11405832 Whirlpool Microwave Capacitor
6	CHASSIS, FAN
7	W11095794 Whirlpool Deflector Assembly
8	W11095804 Whirlpool Deflector Assembly
9	W10557536 Whirlpool Microwave Sensor
10	W11712433 Whirlpool Fan Motor
11	W11117964 Whirlpool Microwave Transformer
12	HOOD DEFLECTOR, BACK
13	W11213353 Whirlpool Microwave Fan Motor
14	DIVIDER, AIR
15	AIR GUIDE, LEFT
16	SEAL, LIGHTING
17	W11086300 Whirlpool Microwave Reflector
18	BOARD, LED LAMP
19	FOIL, LAMP
20	HOLDER, WIRE
21	CHANNEL, HOOD BACK
22	W11127425 Whirlpool Microwave Housing
23	W11402082 Whirlpool Microwave Magnetron
24	W11126543 Whirlpool Microwave Foam Seal
25	W11125676 Whirlpool Microwave Thermostat
