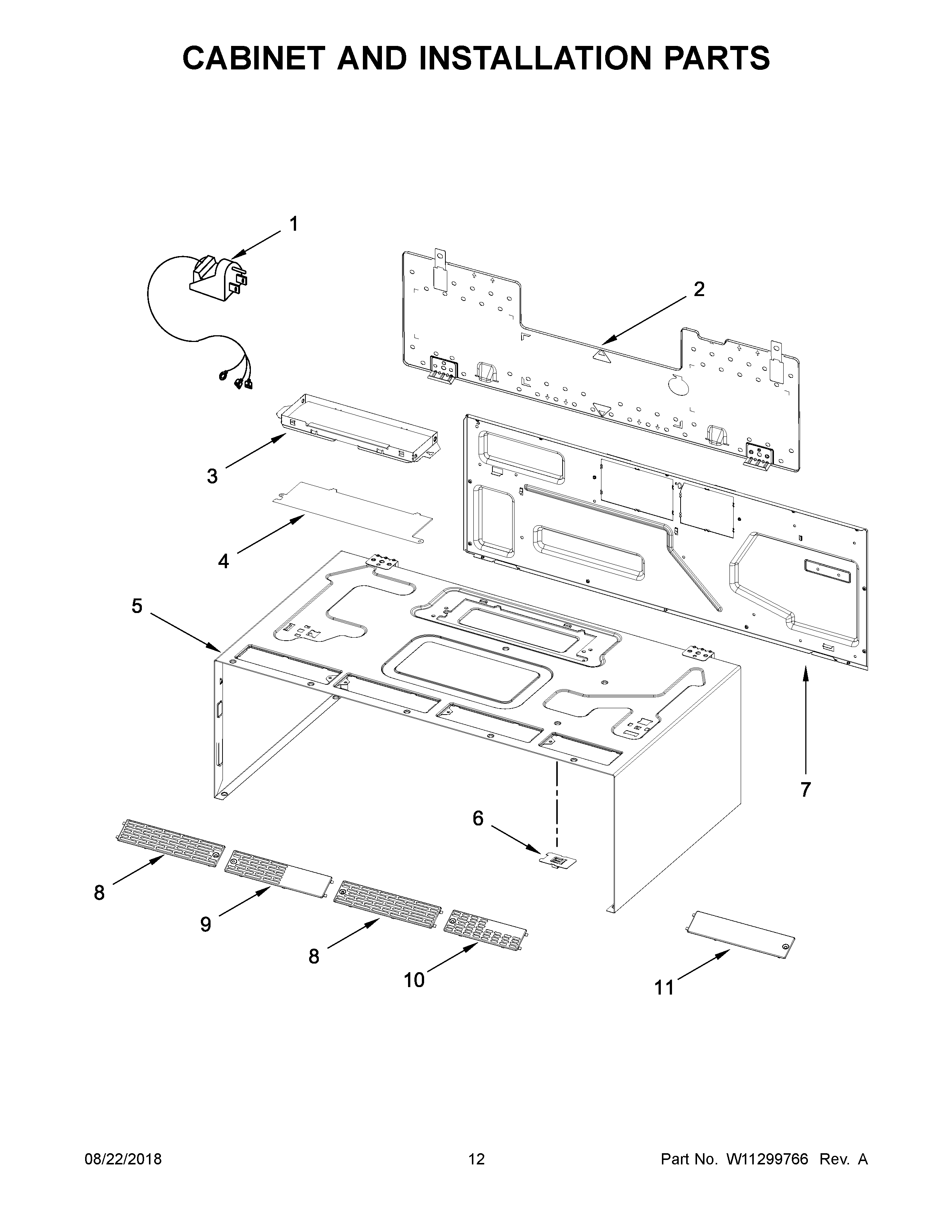

YWML75011HZ3 07 – CABINET AND INSTALLATION PARTS

Products

Position	Product
NI	MISCELLANEOUS PARTS, HARNESS, MAIN
NI	W10916212 Whirlpool Microwave Wire Harness
NI	W11101699 Whirlpool Microwave Wire Harness
NI	W11213883 Whirlpool Microwave Wire Harness
NI	W11213885 Whirlpool Microwave Wire Harness
NI	W11322425 Whirlpool Wire Harness
NI	MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE
NI	MISCELLANEOUS PARTS, HARNESS, DOOR EJECT MOTOR
NI	W10821385 Whirlpool Hardware Kit
1	CORD, POWER
2	W11368557 Whirlpool Microwave Mounting Bracket
3	W10843943 Whirlpool Microwave Vent Damper
4B	COVER, EXHAUST (STAINLESS)
4	COVER, EXHAUST (WHITE)
4A	COVER, EXHAUST (BLACK)
5B	W11493413 Whirlpool Microwave Cabinet Wrapper
5A	W11446923 Whirlpool Microwave Cabinet Wrapper
5	W11446922 Whirlpool Cabinet Wrapper
5C	W11446949 Whirlpool Microwave Cabinet Wrapper
5D	W11165448 Whirlpool Microwave Cabinet Wrapper
6	W11122643 Whirlpool Nut
7	W11086259 Whirlpool Microwave Plate
8A	W11086309 Whirlpool Microwave Vent Grille
9A	W11095781 Whirlpool Microwave Vent Grille
9	W11164786 Whirlpool Microwave Vent Grille
10B	W11086310 Whirlpool Microwave Vent Grill
10A	GRILLE, VENT (SHORT) (BLACK)
10	W11164816 Whirlpool Microwave Vent Grille
11B	W11397086 Whirlpool Microwave Vent Grill
