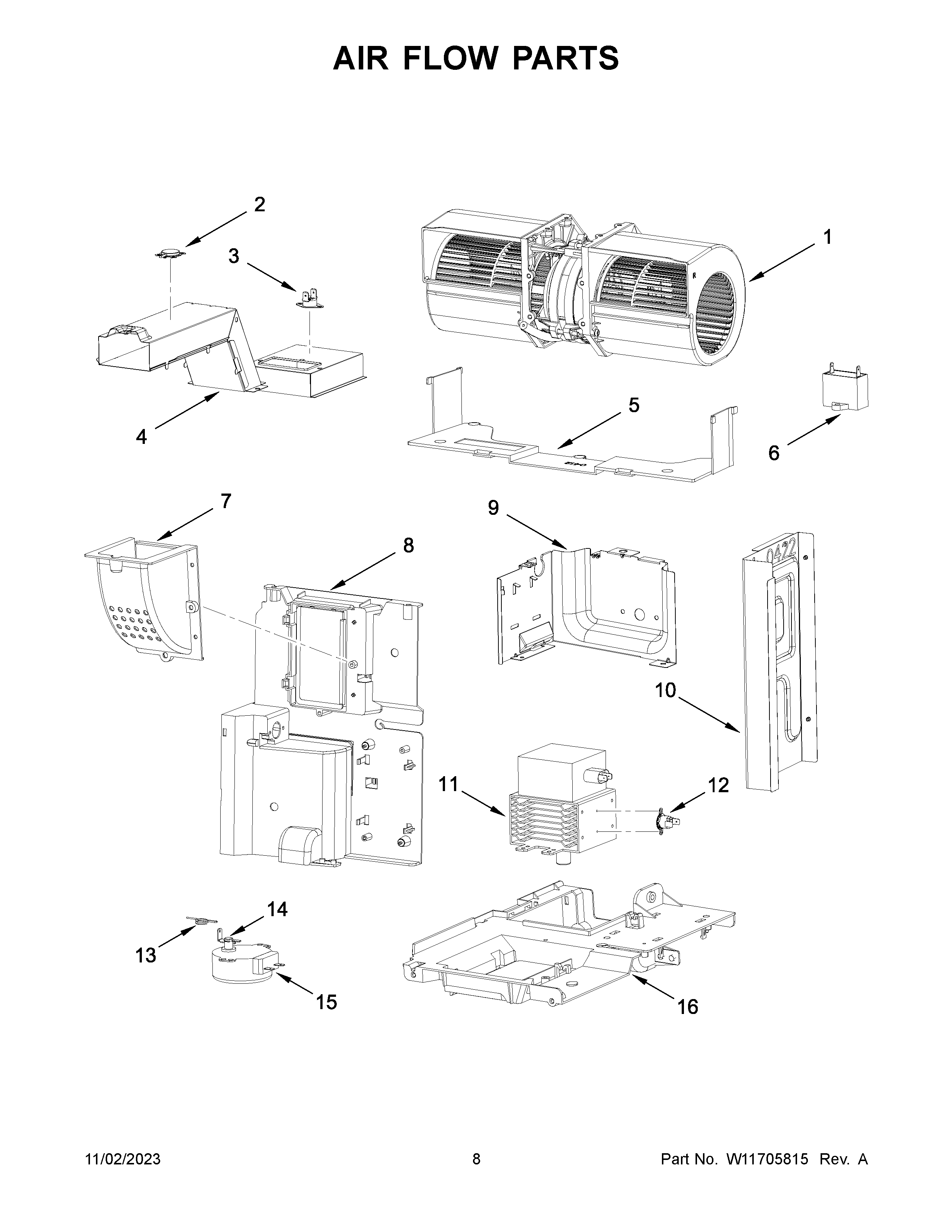

YWMMF5930PV00 05 – AIR FLOW PARTS

Products

PositionProduct
1W11662632 Whirlpool Fan Motor
2W10557536 Whirlpool Microwave Sensor
3W11661583 Whirlpool Thermostat Fix
4CHANNEL, CAVITY OUTLET
5COVER, BOTTOM FAN
6W11405830 Whirlpool Capacitor
7AIR CHANNEL, TRANSFORMER
8AIR CHANNEL, MAGNETRON
9CHANNEL, RIGHT HOOD
10W11662662 Whirlpool Air Guide
11W11391712 Whirlpool Microwave Magnetron
12W11443128 Whirlpool Thermostat
13SPRING
14BLADE-STIR
15W11590176 Whirlpool Turn Motor
16PLATE, MAGNETRON SUPPORT
