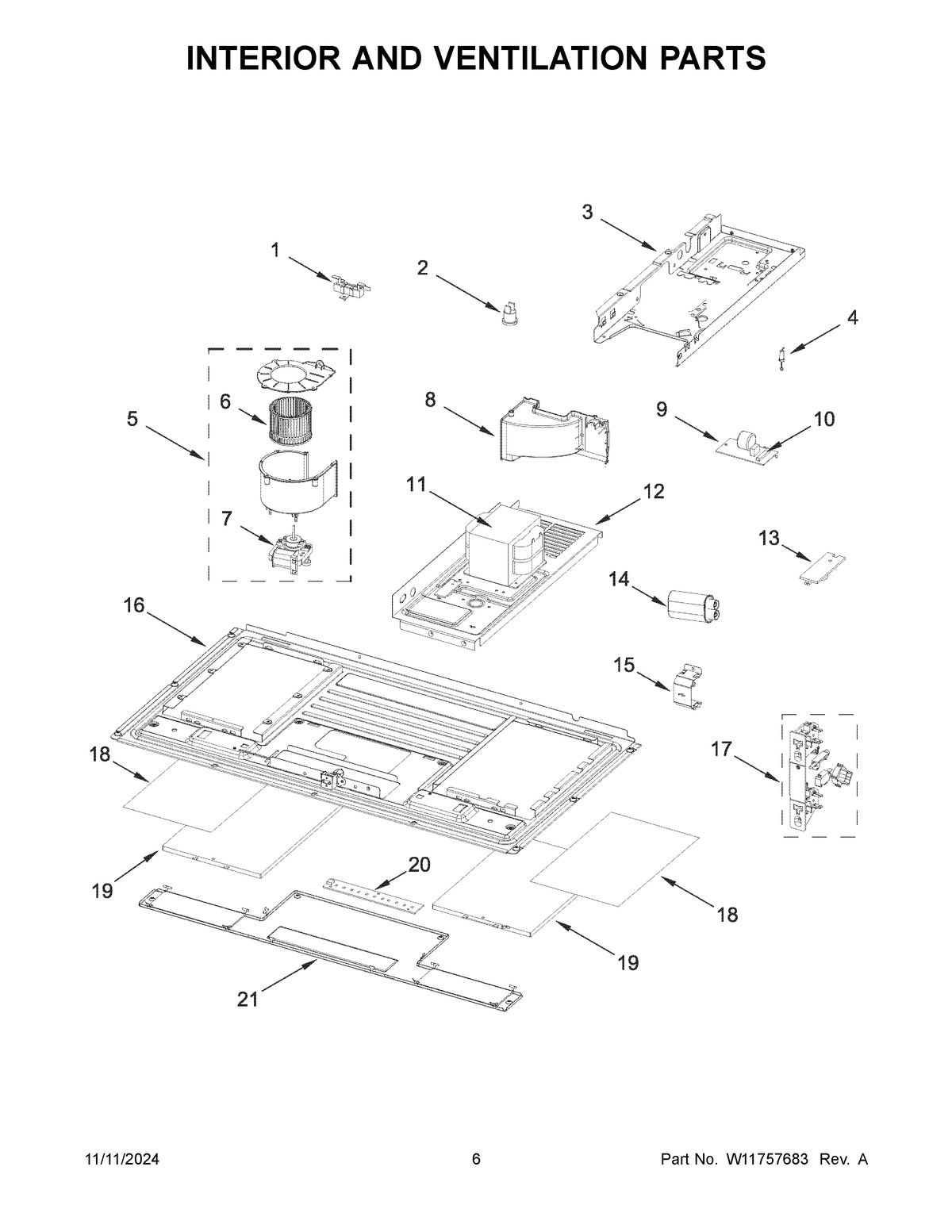

YWMML5530RV00 04 – INTERIOR AND VENTILATION PARTS

YWMML5530RV00 04 – INTERIOR AND VENTILATION PARTS

Written by

in

YWMML5530RV00 04 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1W11259893 Whirlpool Resistor Assembly
2W11378281 Whirlpool Fix Thermostat
3PLATE, CHASSIS
4W11256462 Whirlpool Microwave Diode
5MOTOR-FAN
6W11088354 Whirlpool Microwave Fan Wheel
7W11443154 Whirlpool Microwave Fan Motor
8W11088358 Whirlpool Microwave Air Guide
9BOARD, NOISE FILTER
10FUSE-THRML
11TRANSFORMER, HIGH VOLTAGE
12CHASSIS, TRANSFORMER
13W10536989 Whirlpool Microwave Thermistor
148206562 Whirlpool Microwave Capacitor MG
15W11095808 Whirlpool Compactor Bracket
16PLATE, BOTTOM
17ASSEMBLY, INTERLOCK (INCLUDES SWITCHES)
18FILTER, CHARCOAL
19FILTER, GREASE
20STRIP, LED LIGHT
21ASSEMBLY, GLASS HOLDER
