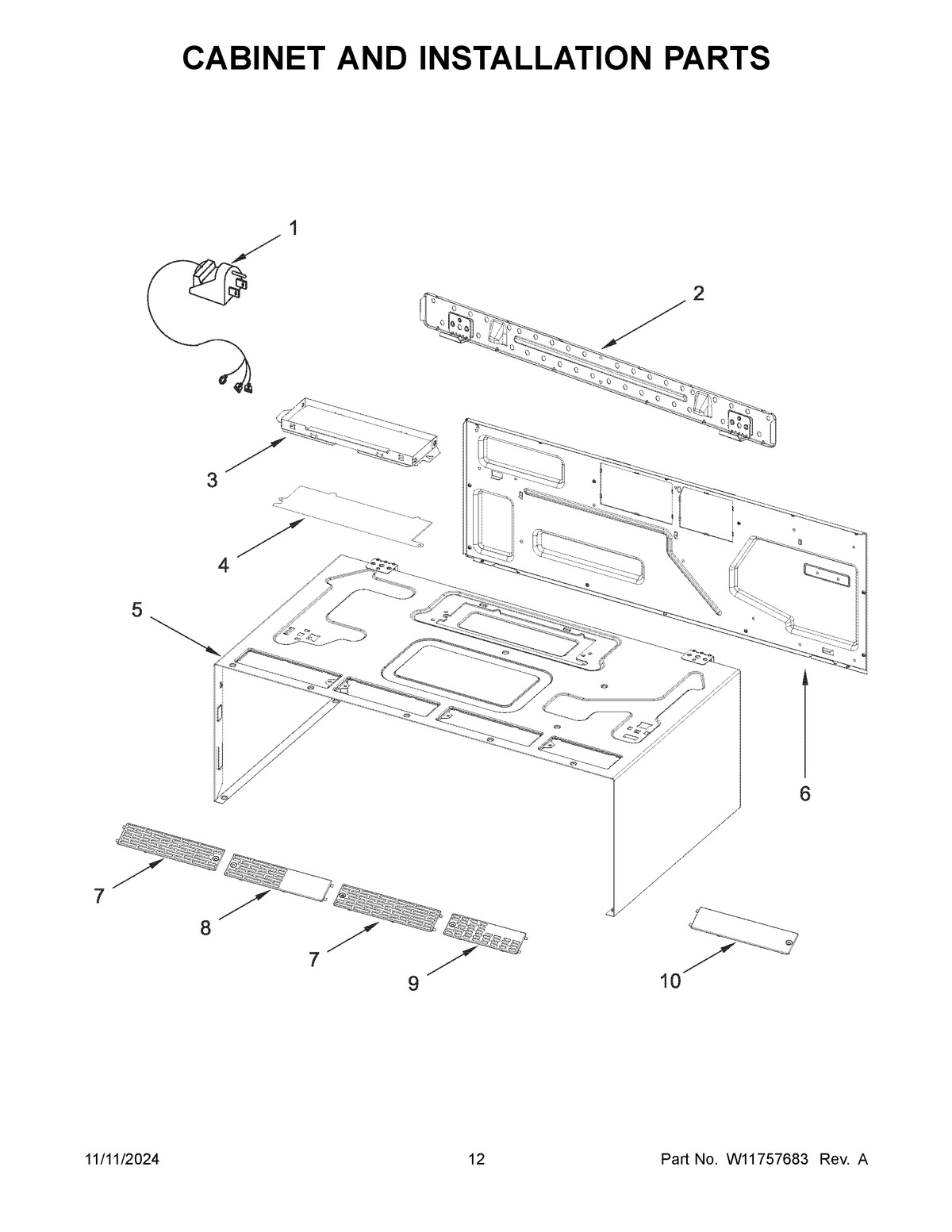

YWMML5530RV00 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIMISCELLANEOUS PARTS, HARNESS, MAIN
NIMISCELLANEOUS PARTS, HARNESS, DOOR HINGE TO ACU
NIW10821385 Whirlpool Hardware Kit
NIMISCELLANEOUS PARTS, HARNESS, HMI TO DOOR HINGE A07
NIMISCELLANEOUS PARTS, SIGNAL HARNESS, DOOR & ODM TO ACU
1CORD, POWER
2W11025649 Whirlpool Microwave Mounting Plate
3W10843943 Whirlpool Microwave Vent Damper
4COVER, EXHAUST (BLACK)
5CASE, OUTER (WHITE)
5ACASE, OUTER (BLACK)
6W11360416 Whirlpool Plate
7W11086309 Whirlpool Microwave Vent Grille
8W11095781 Whirlpool Microwave Vent Grille
9W11086310 Whirlpool Microwave Vent Grill
10W11397086 Whirlpool Microwave Vent Grill
