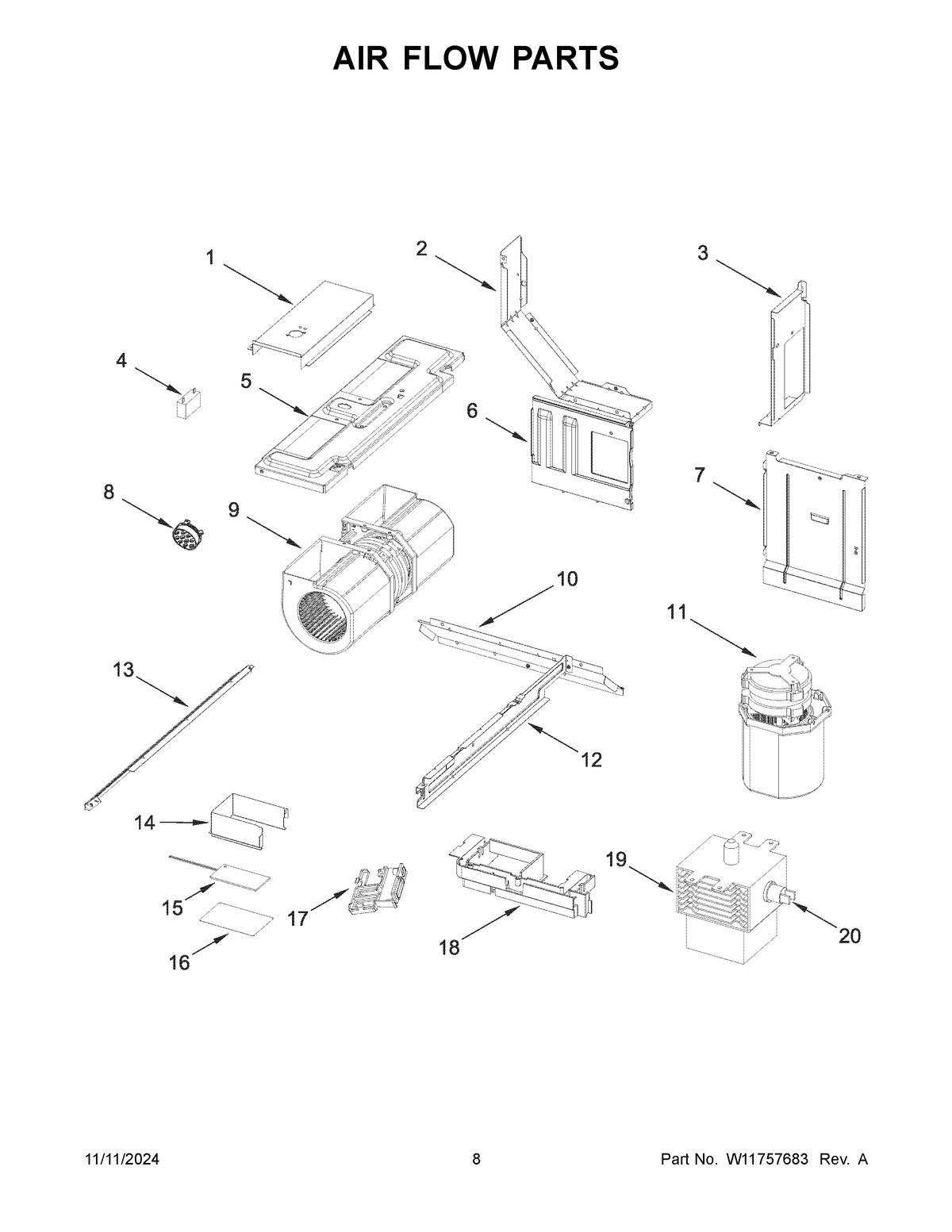

YWMML5530RZ00 05 – AIR FLOW PARTSadmin2025-04-26T11:15:41+00:00YWMML5530RZ00 05 – AIR FLOW PARTS
Products
| Position | Product |
|---|
| 1 | OUTLET, CAVITY (BACK) |
| 2 | AIR DEFLECTOR, RIGHT |
| 3 | OUTLET DEFLECTOR, RIGHT |
| 4 | W11405832 Whirlpool Microwave Capacitor |
| 5 | CHASSIS, FAN |
| 6 | DEFLECTOR, COOLING FAN |
| 7 | W11095804 Whirlpool Deflector Assembly |
| 8 | W10557536 Whirlpool Microwave Sensor |
| 9 | W11712433 Whirlpool Fan Motor |
| 10 | HOOD DEFLECTOR, BACK |
| 11 | W11213353 Whirlpool Microwave Fan Motor |
| 12 | DIVIDER, AIR |
| 13 | AIR GUIDE, LEFT |
| 14 | W11086300 Whirlpool Microwave Reflector |
| 15 | W11443139 Whirlpool Microwave Light |
| 16 | FOIL, LAMP |
| 17 | W11098921 Whirlpool Microwave Light Cover |
| 18 | HOLDER, WIRE |
| 19 | W11402082 Whirlpool Microwave Magnetron |
| 20 | W11443128 Whirlpool Thermostat |
