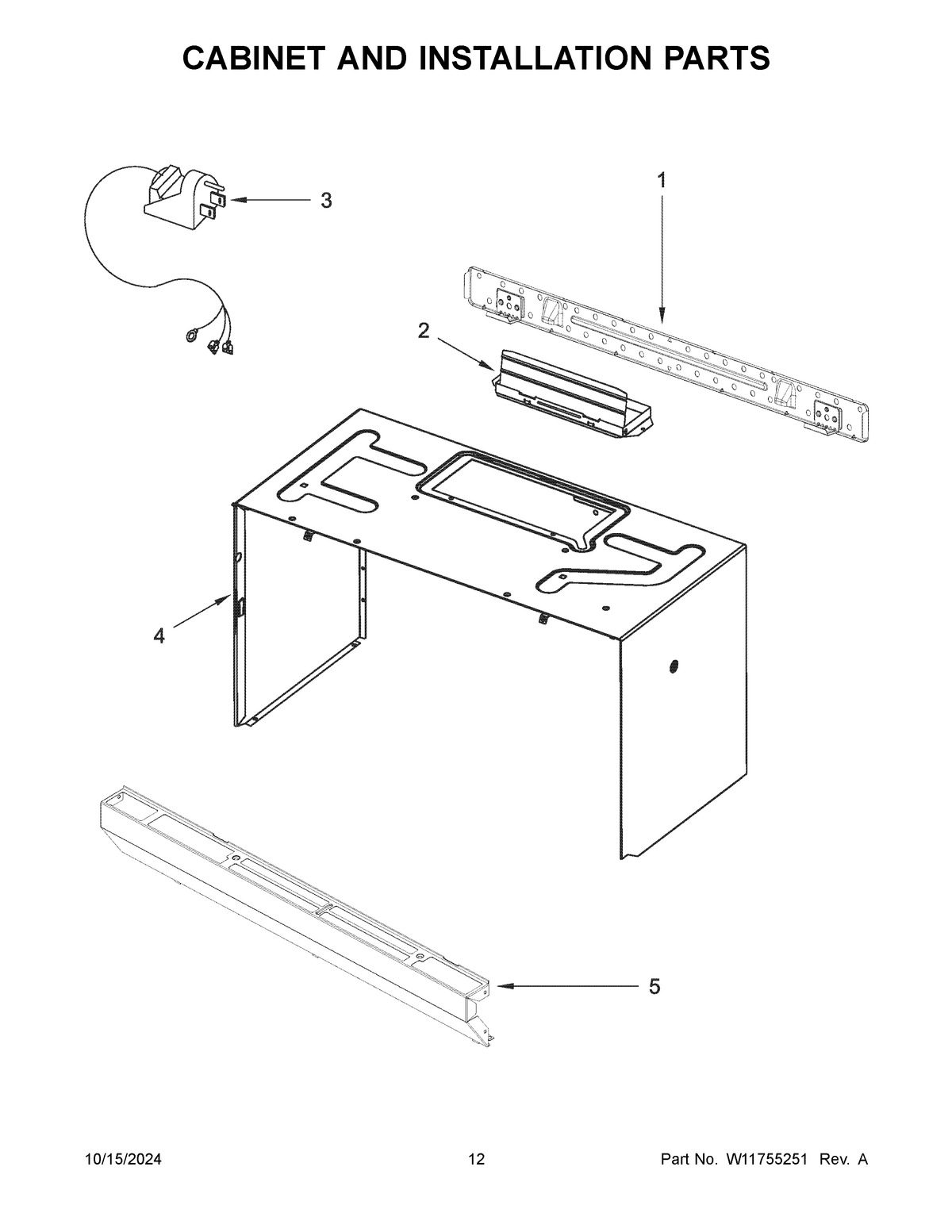

YWMMS3130RW00 07 – CABINET AND INSTALLATION PARTS

YWMMS3130RW00 07 – CABINET AND INSTALLATION PARTS

Written by

in

YWMMS3130RW00 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIWP8169704 Whirlpool Screw
NIW10190018 Whirlpool Microwave Template
NIW10821385 Whirlpool Hardware Kit
NIW11685583 Whirlpool Wire Harness
NIW11301790 Whirlpool Microwave Wire Harness
1W11025649 Whirlpool Microwave Mounting Plate
2W10843943 Whirlpool Microwave Vent Damper
3W10708076 Whirlpool Microwave Power Cord
4W11446917 Whirlpool Microwave Cabinet Wrapper
4AW11446916 Whirlpool Microwave Cabinet Wrapper
5GRILLE, VENT (WHITE)
5AGRILLE, VENT (BLACK)
